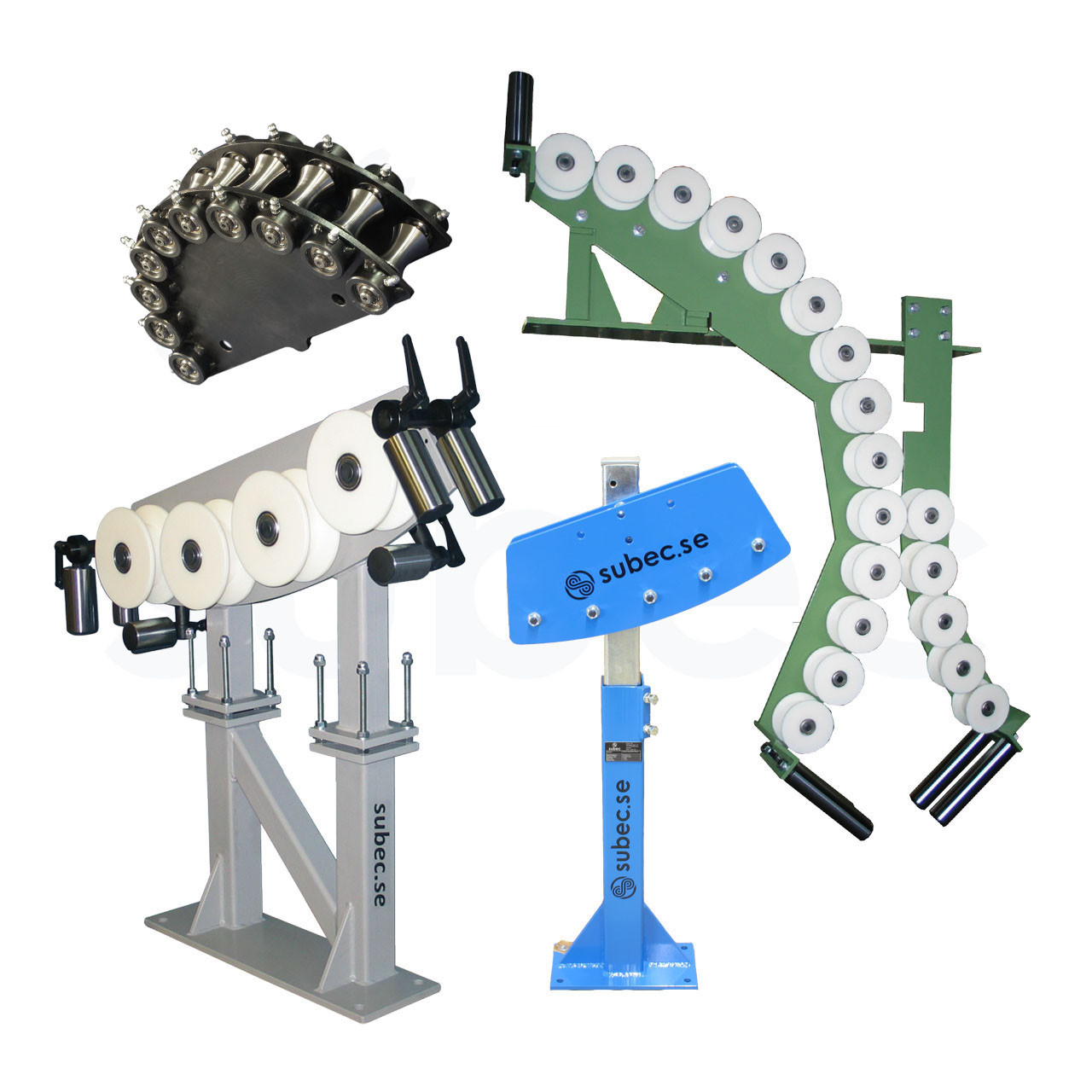

Example Custom Roller Arcs

Example Custom Roller Arcs

Drawing No: 3-300114-00

Description

Custom roller arcs designed to meet unique project specifications beyond standard angles. Whether you require uncommon degrees of curvature, specific materials, or tailored mounting solutions, these arcs are engineered for flexible adaptation to your needs.

Dimensions

  • Hide Filters
Article. No Material, Roller/Sheave Material, Body Surface Treatment Coating Radius Roller Arc Angle Width Rollers - Qty Rollers - Horizontal Diameter, Outer Diameter, Root Groove - Width Groove - Radius Product Range - MIN Product Range - MAX Suffix
20631 POM Steel Painted n/a 1500.00 mm 30.00 ° 442.50 mm 9 5 120.00 mm n/a mm n/a mm n/a mm 0.00 mm 100.00 mm
8969 Steel Steel Black Oxidized n/a 150.00 mm 180.00 ° 70.00 mm 10 10 30.00 mm 18.80 mm 38.00 mm n/a mm 0.00 mm 40.00 mm Oblique

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 20631
Material, Roller/Sheave POM
Material, Body Steel
Surface Treatment Painted
Coating n/a
Radius 1500.00 mm
Roller Arc Angle 30.00 °
Article. No 8969
Material, Roller/Sheave Steel
Material, Body Steel
Surface Treatment Black Oxidized
Coating n/a
Radius 150.00 mm
Roller Arc Angle 180.00 °
!
