Automatic Cable Strippers

Automatic Cable Strippers

Drawing No: 9-100003-01

Description

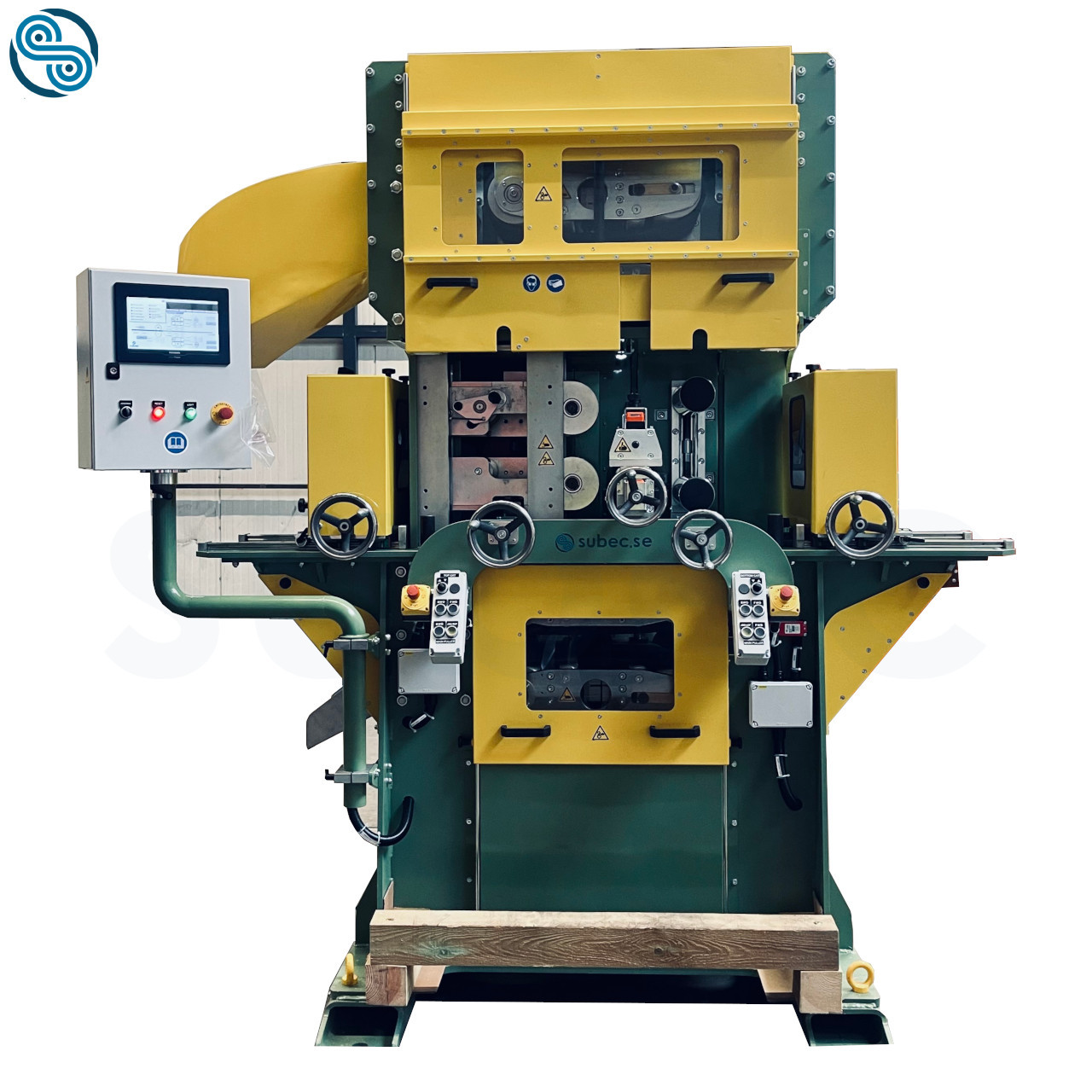

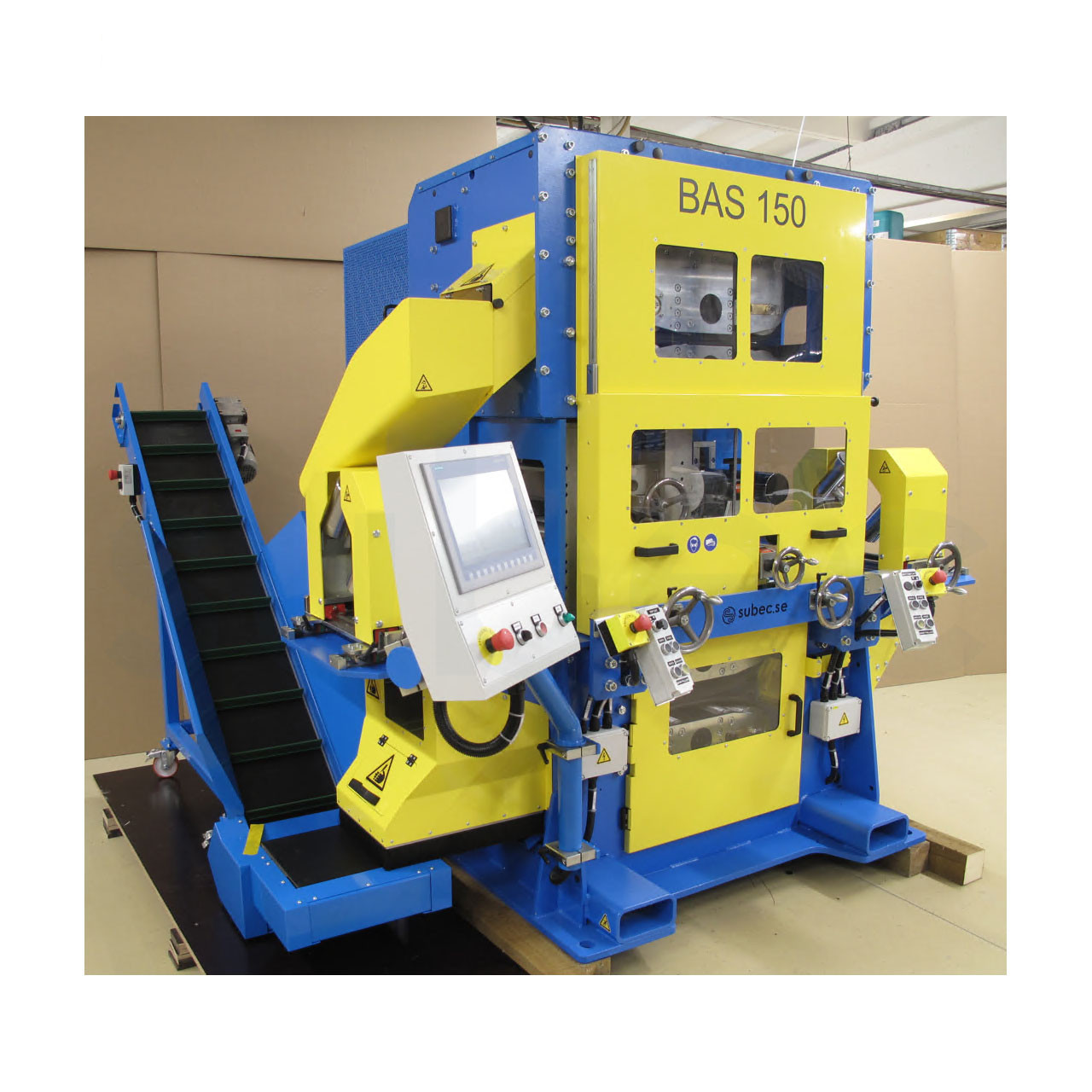

Subec’s Automatic Cable Strippers are engineered for high-precision, continuous jacket and insulation removal in demanding cable production environments. Designed for seamless integration into automated lines, these systems use synchronized pulling units, adjustable knife mechanisms, and guided feeding to strip cables accurately without damaging the conductor. Equipped with sensor monitoring, safety-interlocked covers, and both JOG and fully automatic operating modes, the machines ensure safe setup and reliable high-speed operation. Depending on the model, features include dual pullers, HMI-controlled parameters, and optional shredding units for efficient handling of removed insulation. Built for cable sizes up to Ø150 mm, Subec’s automatic strippers deliver consistent performance, repeatable stripping quality, and stable process control—making them a trusted solution for manufacturers seeking efficiency, precision, and long-term reliability.

Dimensions

  • Hide Filters
Article. No Product Range - MIN Product Range - MAX Suffix
20839 10.00 mm 150.00 mm Belt conveyor for scrap
17864A 10.00 mm 150.00 mm n/a
12587A 5.00 mm 25.00 mm n/a
15090 15.00 mm 80.00 mm n/a

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 20839
Product Range - MIN 10.00 mm
Product Range - MAX 150.00 mm
Suffix Belt conveyor for scrap
Article. No 17864A
Product Range - MIN 10.00 mm
Product Range - MAX 150.00 mm
Suffix n/a
Article. No 12587A
Product Range - MIN 5.00 mm
Product Range - MAX 25.00 mm
Suffix n/a
Article. No 15090
Product Range - MIN 15.00 mm
Product Range - MAX 80.00 mm
Suffix n/a
