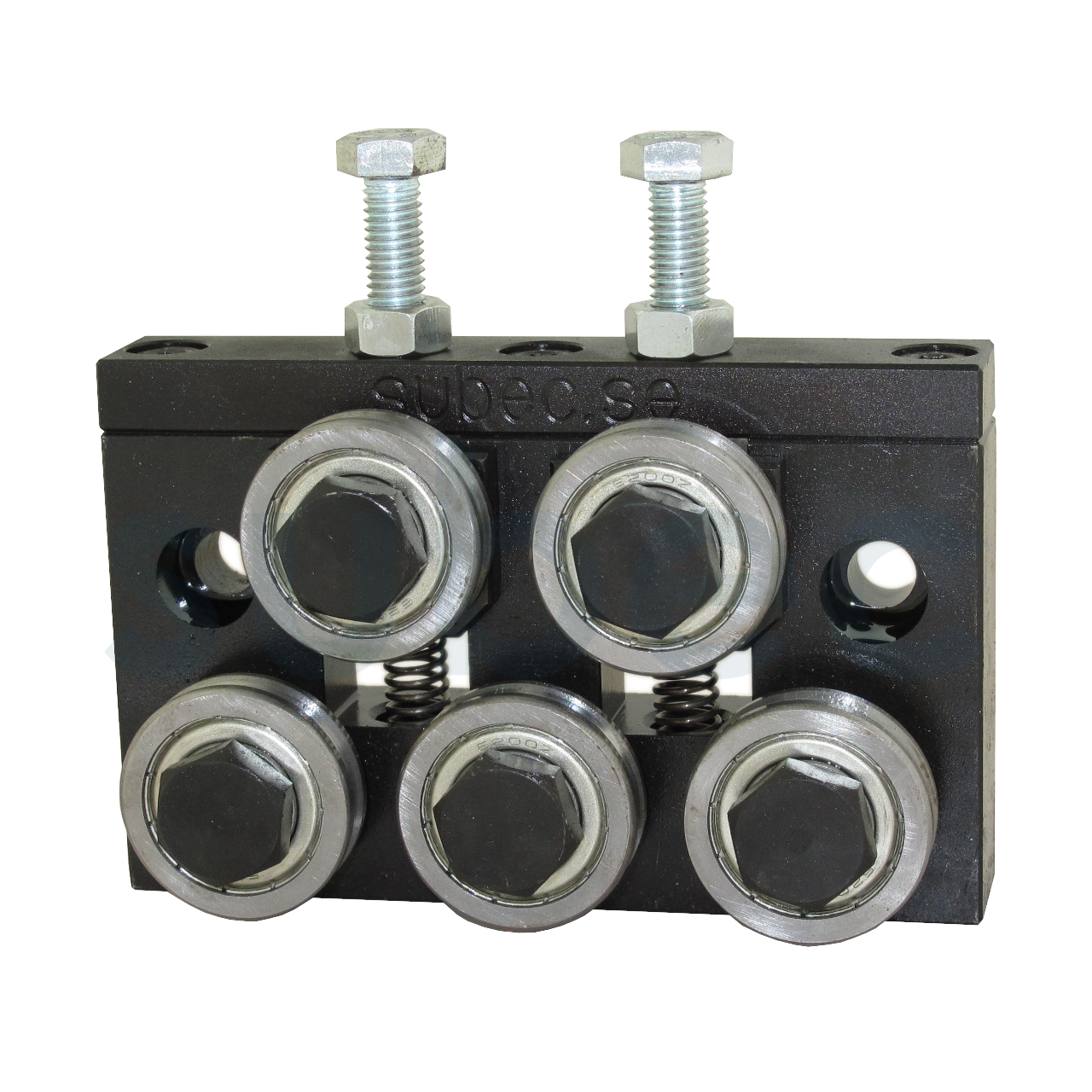

Wire Straightener S30, S31, S32 in TA-Series

Wire Straightener S30, S31, S32 in TA-Series

Drawing No: 3-400526-00

Description

This group of straighteners includes models equipped with rollers in diameters of 30, 31, and 32 mm

Dimensions

  • Hide Filters
Article. No Plane (X or XY) Diameter, Outer Rollers - Qty Roller Type Product Range - MIN Product Range - MAX Closing Suffix
4025A Single 30.00 mm 7 SD 1.50 mm 5.50 mm TA n/a
21307 Single 30.00 mm 5 SS 0.00 mm 3.20 mm TA Flipped (upper 3, lower 2)
2103 Double 30.00 mm 14 SD 1.50 mm 5.50 mm TA n/a

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 4025A
Plane (X or XY) Single
Diameter, Outer 30.00 mm
Rollers - Qty 7
Roller Type SD
Product Range - MIN 1.50 mm
Product Range - MAX 5.50 mm
Article. No 21307
Plane (X or XY) Single
Diameter, Outer 30.00 mm
Rollers - Qty 5
Roller Type SS
Product Range - MIN 0.00 mm
Product Range - MAX 3.20 mm
Article. No 2103
Plane (X or XY) Double
Diameter, Outer 30.00 mm
Rollers - Qty 14
Roller Type SD
Product Range - MIN 1.50 mm
Product Range - MAX 5.50 mm
!
