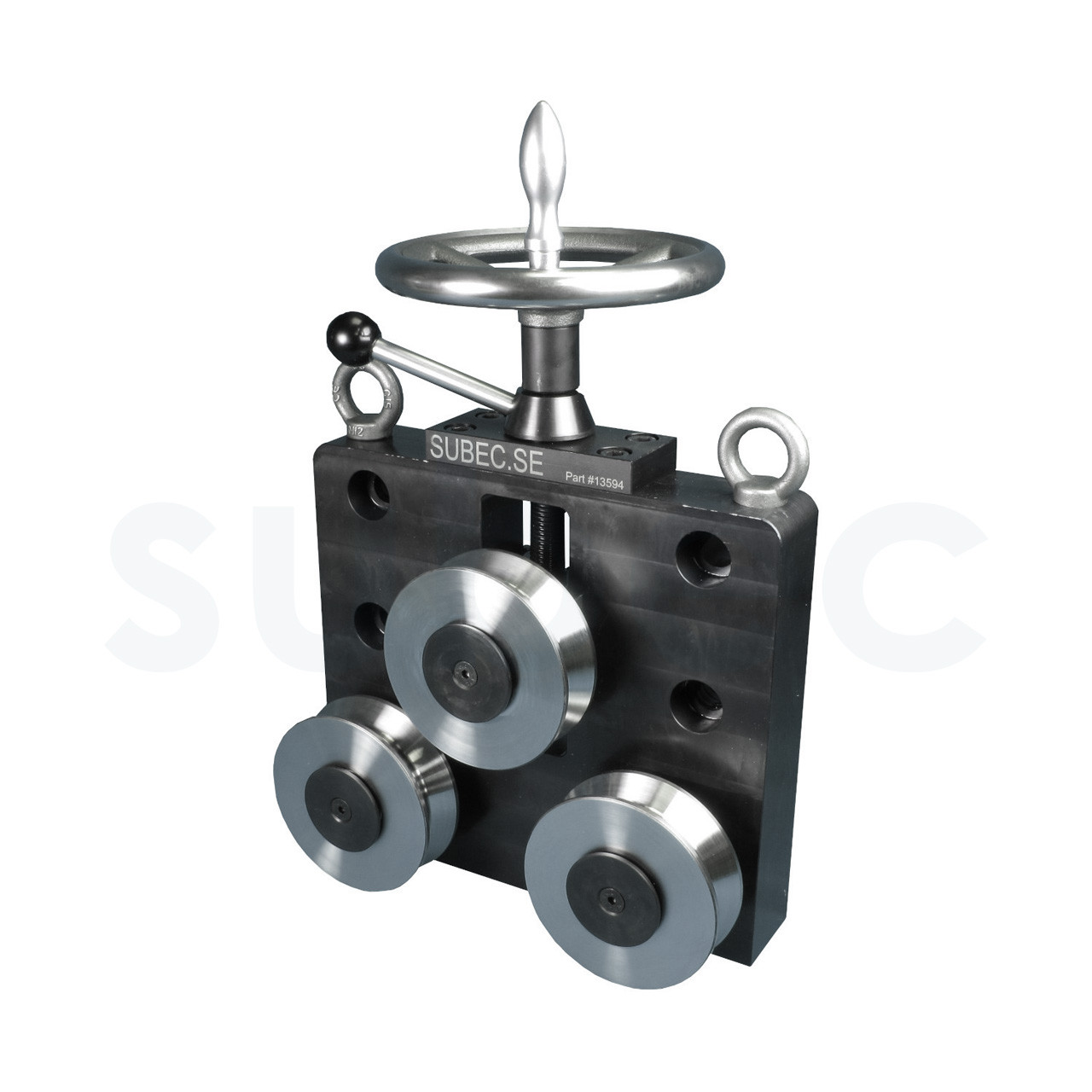

Wire Straightener S125 in HW-Series

Wire Straightener S125 in HW-Series

Drawing No: 3-400769-00

Description

The HW Series Straightener includes a range of models equipped with a handwheel-operated opening mechanism, where one row of straightening rollers is adjustable while the opposing rollers remain fixed. The adjustment is made by turning the handwheel, allowing the movable rollers to close against the product while the fixed rollers provide a stable reference. The HW Series is further divided into different models based on straightening roller size and capacity, making it suitable for a wide range of wire and cable applications where a fixed reference side is preferred.

Dimensions

  • Hide Filters
Article. No Plane (X or XY) Product Range - MIN Product Range - MAX Rollers - Qty Roller Type Diameter, Outer Position Indicator
13594 Single 15.00 mm 28.00 mm 3 SL 125.00 mm No

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 13594
Plane (X or XY) Single
Product Range - MIN 15.00 mm
Product Range - MAX 28.00 mm
Rollers - Qty 3
Roller Type SL
Diameter, Outer 125.00 mm
