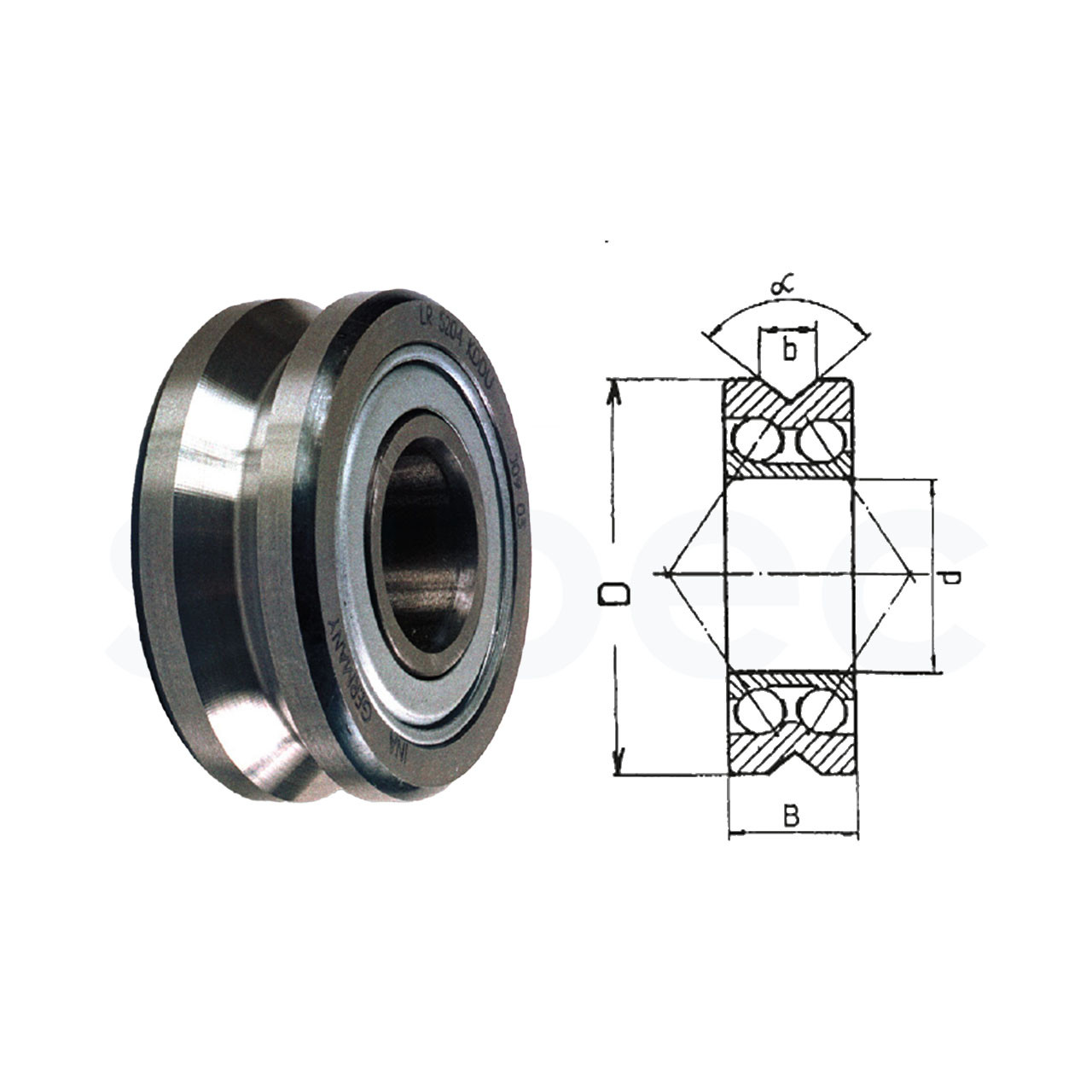

Double Row Straightening Rollers Sealed

Double Row Straightening Rollers Sealed

Drawing No: 3-400475-00

Description

Subec’s SD Rollers are double-row ball bearings with a precision-machined groove in the outer ring. Designed for durability and smooth rotation, these rollers are available with: - Universal V-grooves, cut at a 90° angle, for versatile guiding applications - Radius grooves, tailored to match the specific diameter of the wire for optimal support and alignment SD Rollers are ideal for high-precision wire guiding and straightening tasks where reliable performance is critical.

Dimensions

  • Hide Filters
Article. No Diameter, Outer Diameter, Inner Length Groove - Width Groove - Angle Groove - Radius Product Range - MIN Product Range - MAX
5898 40.00 mm 15.00 mm 15.90 mm 6.00 mm 100.00 ° 0.40 mm 0.00 mm 6.00 mm
5401 52.00 mm 17.00 mm 22.00 mm 10.00 mm 90.00 ° n/a mm 0.00 mm 10.00 mm
2616 35.00 mm 12.00 mm 15.90 mm 8.14 mm 120.00 ° n/a mm 4.50 mm 8.00 mm
1717 80.00 mm 35.00 mm 27.00 mm 13.00 mm 100.00 ° n/a mm 7.00 mm 15.00 mm
1716 72.00 mm 30.00 mm 23.80 mm 12.00 mm 100.00 ° n/a mm 7.00 mm 12.00 mm
1715 52.00 mm 20.00 mm 20.60 mm 9.40 mm 90.00 ° n/a mm 6.00 mm 9.50 mm
5012A 52.00 mm 20.00 mm 20.60 mm 11.50 mm 100.00 ° 4.55 mm 0.00 mm 12.00 mm
8176 80.00 mm 35.00 mm 27.00 mm 22.00 mm 115.00 ° 5.00 mm 7.00 mm 16.00 mm
6944 45.00 mm 12.00 mm 22.00 mm 10.50 mm 110.00 ° n/a mm 0.00 mm 9.00 mm
6442 30.00 mm 10.00 mm 14.00 mm 5.80 mm 120.00 ° 0.40 mm 0.00 mm 6.00 mm
1714 35.00 mm 12.00 mm 15.90 mm 4.70 mm 90.00 ° n/a mm 2.00 mm 4.50 mm
1713 31.00 mm 10.00 mm 14.00 mm 3.20 mm 90.00 ° n/a mm 0.00 mm 4.00 mm
1712 30.00 mm 10.00 mm 14.00 mm 3.20 mm 90.00 ° n/a mm 1.50 mm 3.00 mm
1339 32.00 mm 10.00 mm 14.00 mm 4.20 mm 90.00 ° n/a mm 0.00 mm 5.00 mm
1315 62.00 mm 25.00 mm 20.60 mm 13.00 mm 100.00 ° n/a mm 0.00 mm 14.00 mm
0567 40.00 mm 15.00 mm 15.90 mm 5.00 mm 90.00 ° n/a mm 0.00 mm 6.00 mm

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 5898
Diameter, Outer 40.00 mm
Diameter, Inner 15.00 mm
Length 15.90 mm
Groove - Width 6.00 mm
Groove - Angle 100.00 °
Groove - Radius 0.40 mm
Article. No 5401
Diameter, Outer 52.00 mm
Diameter, Inner 17.00 mm
Length 22.00 mm
Groove - Width 10.00 mm
Groove - Angle 90.00 °
Groove - Radius n/a mm
Article. No 2616
Diameter, Outer 35.00 mm
Diameter, Inner 12.00 mm
Length 15.90 mm
Groove - Width 8.14 mm
Groove - Angle 120.00 °
Groove - Radius n/a mm
Article. No 1717
Diameter, Outer 80.00 mm
Diameter, Inner 35.00 mm
Length 27.00 mm
Groove - Width 13.00 mm
Groove - Angle 100.00 °
Groove - Radius n/a mm
Article. No 1716
Diameter, Outer 72.00 mm
Diameter, Inner 30.00 mm
Length 23.80 mm
Groove - Width 12.00 mm
Groove - Angle 100.00 °
Groove - Radius n/a mm
Article. No 1715
Diameter, Outer 52.00 mm
Diameter, Inner 20.00 mm
Length 20.60 mm
Groove - Width 9.40 mm
Groove - Angle 90.00 °
Groove - Radius n/a mm
Article. No 5012A
Diameter, Outer 52.00 mm
Diameter, Inner 20.00 mm
Length 20.60 mm
Groove - Width 11.50 mm
Groove - Angle 100.00 °
Groove - Radius 4.55 mm
Article. No 8176
Diameter, Outer 80.00 mm
Diameter, Inner 35.00 mm
Length 27.00 mm
Groove - Width 22.00 mm
Groove - Angle 115.00 °
Groove - Radius 5.00 mm
Article. No 6944
Diameter, Outer 45.00 mm
Diameter, Inner 12.00 mm
Length 22.00 mm
Groove - Width 10.50 mm
Groove - Angle 110.00 °
Groove - Radius n/a mm
Article. No 6442
Diameter, Outer 30.00 mm
Diameter, Inner 10.00 mm
Length 14.00 mm
Groove - Width 5.80 mm
Groove - Angle 120.00 °
Groove - Radius 0.40 mm
Article. No 1714
Diameter, Outer 35.00 mm
Diameter, Inner 12.00 mm
Length 15.90 mm
Groove - Width 4.70 mm
Groove - Angle 90.00 °
Groove - Radius n/a mm
Article. No 1713
Diameter, Outer 31.00 mm
Diameter, Inner 10.00 mm
Length 14.00 mm
Groove - Width 3.20 mm
Groove - Angle 90.00 °
Groove - Radius n/a mm
Article. No 1712
Diameter, Outer 30.00 mm
Diameter, Inner 10.00 mm
Length 14.00 mm
Groove - Width 3.20 mm
Groove - Angle 90.00 °
Groove - Radius n/a mm
Article. No 1339
Diameter, Outer 32.00 mm
Diameter, Inner 10.00 mm
Length 14.00 mm
Groove - Width 4.20 mm
Groove - Angle 90.00 °
Groove - Radius n/a mm
Article. No 1315
Diameter, Outer 62.00 mm
Diameter, Inner 25.00 mm
Length 20.60 mm
Groove - Width 13.00 mm
Groove - Angle 100.00 °
Groove - Radius n/a mm
Article. No 0567
Diameter, Outer 40.00 mm
Diameter, Inner 15.00 mm
Length 15.90 mm
Groove - Width 5.00 mm
Groove - Angle 90.00 °
Groove - Radius n/a mm
!
