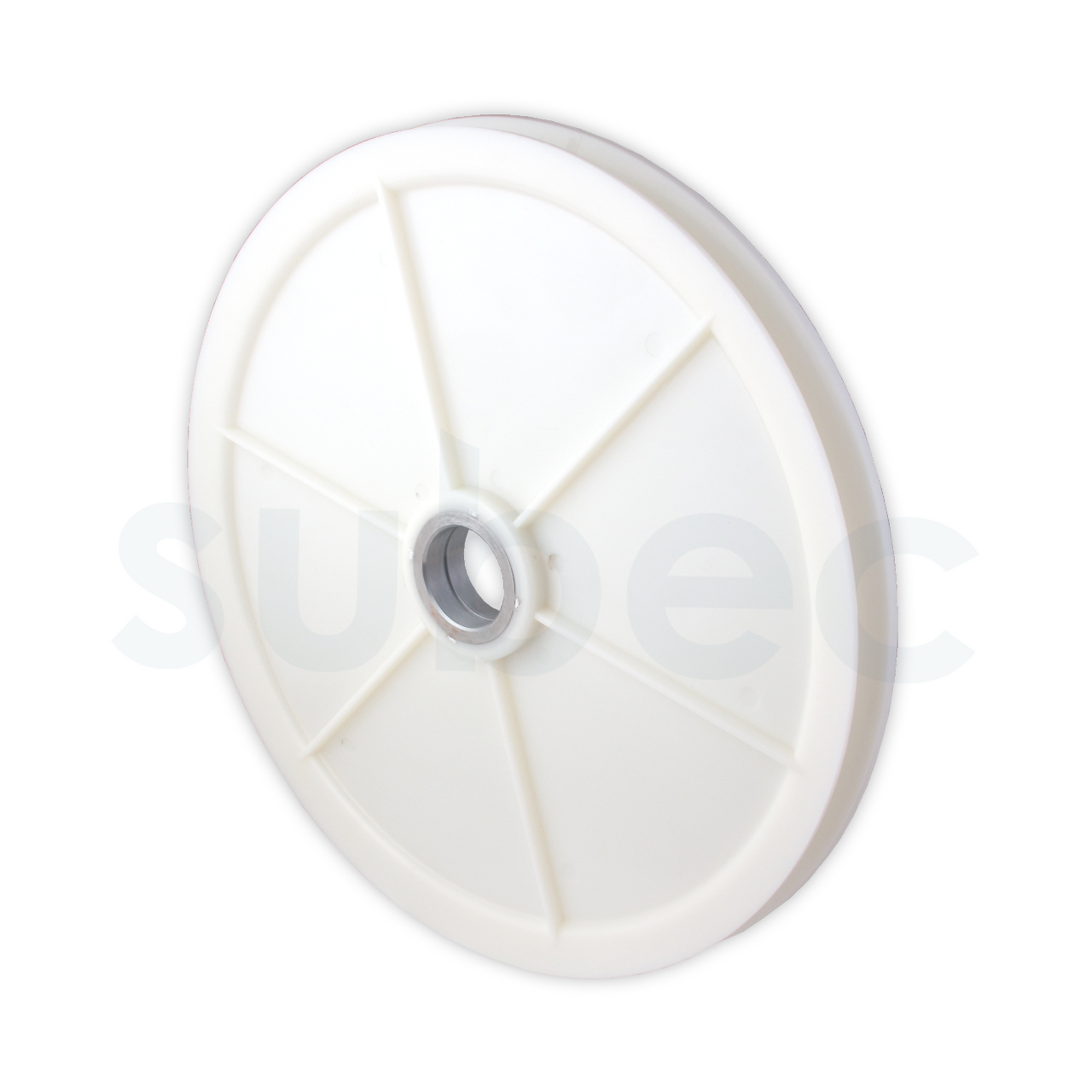

Standard model with bearing housing

Standard model with bearing housing

Drawing No: 3-400925-00

Description

These sheaves are made out of ABS or PA6 plastic and have a moulded in bearing seat out of steel.

Dimensions

  • Hide Filters
Article. No Material, Roller/Sheave Diameter, Root Diameter, Outer Bearing Seat Diameter Groove - Width Groove - Radius Nested Product Range - MAX
7349 ABS 200.00 mm 217.00 mm 24.00 mm 12.00 mm n/a mm No 12.00 mm
7235 ABS 240.00 mm 270.00 mm 32.00 mm 14.00 mm 4.00 mm Yes 8.00 mm

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 7349
Material, Roller/Sheave ABS
Diameter, Root 200.00 mm
Diameter, Outer 217.00 mm
Bearing Seat Diameter 24.00 mm
Groove - Width 12.00 mm
Groove - Radius n/a mm
Article. No 7235
Material, Roller/Sheave ABS
Diameter, Root 240.00 mm
Diameter, Outer 270.00 mm
Bearing Seat Diameter 32.00 mm
Groove - Width 14.00 mm
Groove - Radius 4.00 mm
!
