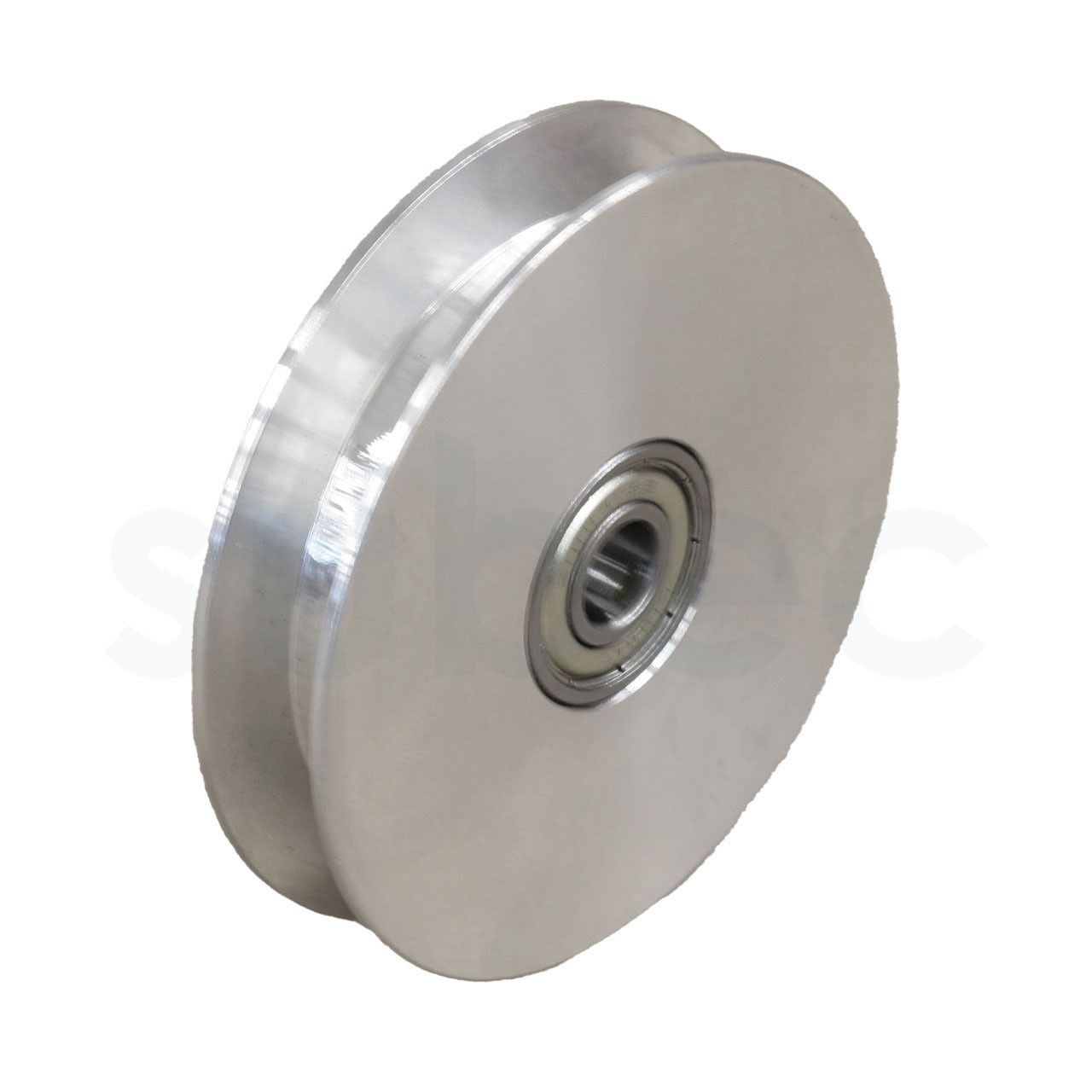

Small aluminium sheaves, OD Ø40 mm to Ø85 mm

Small aluminium sheaves, OD Ø40 mm to Ø85 mm

Drawing No: 1-400392-03

Description

Subec’s small sheaves are offered in a range of materials, with various groove profiles and a either single or double bearings.

Dimensions

  • Hide Filters
Article. No Material, Roller/Sheave Diameter, Root Diameter, Outer Bearing Seat Diameter Groove - Width Groove - Radius Nested
7215 Aluminium 50.00 mm 68.00 mm 32.00 mm 16.00 mm 8.00 mm No
6907 Aluminium 79.00 mm 85.00 mm 28.00 mm 6.06 mm 2.90 mm No
3782 Aluminium 62.00 mm 80.00 mm 26.00 mm 8.00 mm 0.40 mm No

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 7215
Material, Roller/Sheave Aluminium
Diameter, Root 50.00 mm
Diameter, Outer 68.00 mm
Bearing Seat Diameter 32.00 mm
Groove - Width 16.00 mm
Groove - Radius 8.00 mm
Article. No 6907
Material, Roller/Sheave Aluminium
Diameter, Root 79.00 mm
Diameter, Outer 85.00 mm
Bearing Seat Diameter 28.00 mm
Groove - Width 6.06 mm
Groove - Radius 2.90 mm
Article. No 3782
Material, Roller/Sheave Aluminium
Diameter, Root 62.00 mm
Diameter, Outer 80.00 mm
Bearing Seat Diameter 26.00 mm
Groove - Width 8.00 mm
Groove - Radius 0.40 mm
!
