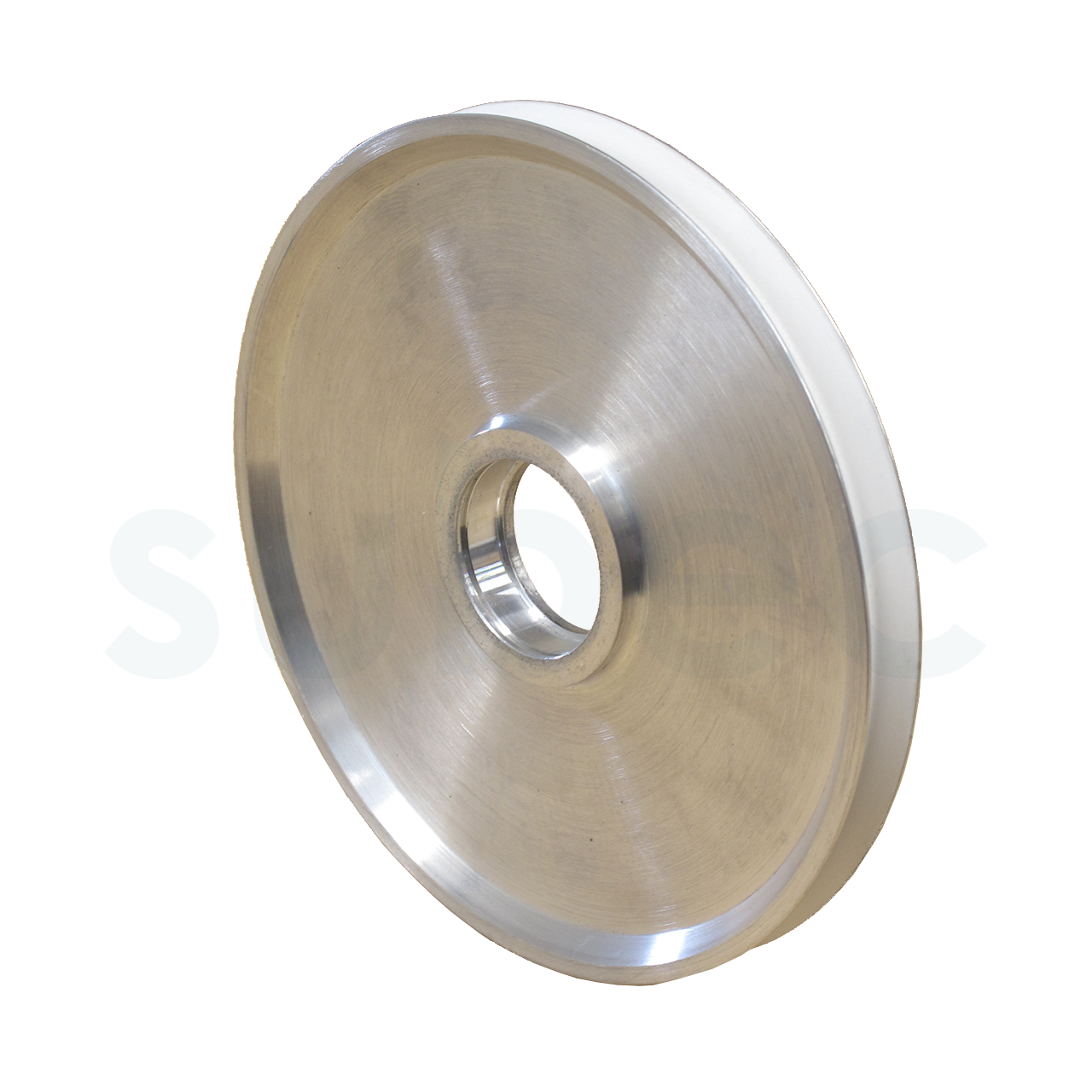

Ceramic Coated Groove, White

Ceramic Coated Groove, White

Drawing No: 3-400936-01

Description

Durable aluminium wheel featuring varius groove profiles. The groove is coated with a white aluminium oxide ceramic layer that significantly increases wear resistance, making it ideal for demanding applications.

Dimensions

  • Hide Filters
Article. No Material, Roller/Sheave Diameter, Root Diameter, Outer Bearing Seat Diameter Groove - Width Groove - Radius Nested
21332 Aluminium AW 6082-T6 185.00 mm 195.00 mm 62.00 mm 10.00 mm 1.00 mm No
21331 Aluminium AW 6082-T6 146.00 mm 159.00 mm 32.00 mm 10.00 mm 1.00 mm Yes
21329 Aluminium AW 6082-T6 146.00 mm 159.00 mm 32.00 mm 10.00 mm 1.00 mm Yes
21328 Aluminium AW 6082-T6 132.00 mm 138.00 mm 32.00 mm 9.00 mm 1.00 mm No
21327 Aluminium AW 6082-T6 112.00 mm 118.00 mm 32.00 mm 9.00 mm 1.00 mm No
21326 Aluminium AW 6082-T6 105.00 mm 125.00 mm 32.00 mm 10.00 mm 1.00 mm No
21325 Aluminium AW 6082-T6 82.00 mm 90.00 mm 32.00 mm 10.00 mm 1.00 mm No
21324 Aluminium AW 6082-T6 150.00 mm 159.00 mm 32.00 mm 10.00 mm 1.00 mm No
21323 Aluminium AW 6082-T6 131.00 mm 140.00 mm 32.00 mm 10.00 mm 1.00 mm No
21322 Aluminium AW 6082-T6 100.00 mm 117.00 mm 30.00 mm 10.00 mm 1.00 mm No

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 21332
Material, Roller/Sheave Aluminium AW 6082-T6
Diameter, Root 185.00 mm
Diameter, Outer 195.00 mm
Bearing Seat Diameter 62.00 mm
Groove - Width 10.00 mm
Groove - Radius 1.00 mm
Article. No 21331
Material, Roller/Sheave Aluminium AW 6082-T6
Diameter, Root 146.00 mm
Diameter, Outer 159.00 mm
Bearing Seat Diameter 32.00 mm
Groove - Width 10.00 mm
Groove - Radius 1.00 mm
Article. No 21329
Material, Roller/Sheave Aluminium AW 6082-T6
Diameter, Root 146.00 mm
Diameter, Outer 159.00 mm
Bearing Seat Diameter 32.00 mm
Groove - Width 10.00 mm
Groove - Radius 1.00 mm
Article. No 21328
Material, Roller/Sheave Aluminium AW 6082-T6
Diameter, Root 132.00 mm
Diameter, Outer 138.00 mm
Bearing Seat Diameter 32.00 mm
Groove - Width 9.00 mm
Groove - Radius 1.00 mm
Article. No 21327
Material, Roller/Sheave Aluminium AW 6082-T6
Diameter, Root 112.00 mm
Diameter, Outer 118.00 mm
Bearing Seat Diameter 32.00 mm
Groove - Width 9.00 mm
Groove - Radius 1.00 mm
Article. No 21326
Material, Roller/Sheave Aluminium AW 6082-T6
Diameter, Root 105.00 mm
Diameter, Outer 125.00 mm
Bearing Seat Diameter 32.00 mm
Groove - Width 10.00 mm
Groove - Radius 1.00 mm
Article. No 21325
Material, Roller/Sheave Aluminium AW 6082-T6
Diameter, Root 82.00 mm
Diameter, Outer 90.00 mm
Bearing Seat Diameter 32.00 mm
Groove - Width 10.00 mm
Groove - Radius 1.00 mm
Article. No 21324
Material, Roller/Sheave Aluminium AW 6082-T6
Diameter, Root 150.00 mm
Diameter, Outer 159.00 mm
Bearing Seat Diameter 32.00 mm
Groove - Width 10.00 mm
Groove - Radius 1.00 mm
Article. No 21323
Material, Roller/Sheave Aluminium AW 6082-T6
Diameter, Root 131.00 mm
Diameter, Outer 140.00 mm
Bearing Seat Diameter 32.00 mm
Groove - Width 10.00 mm
Groove - Radius 1.00 mm
Article. No 21322
Material, Roller/Sheave Aluminium AW 6082-T6
Diameter, Root 100.00 mm
Diameter, Outer 117.00 mm
Bearing Seat Diameter 30.00 mm
Groove - Width 10.00 mm
Groove - Radius 1.00 mm
!
