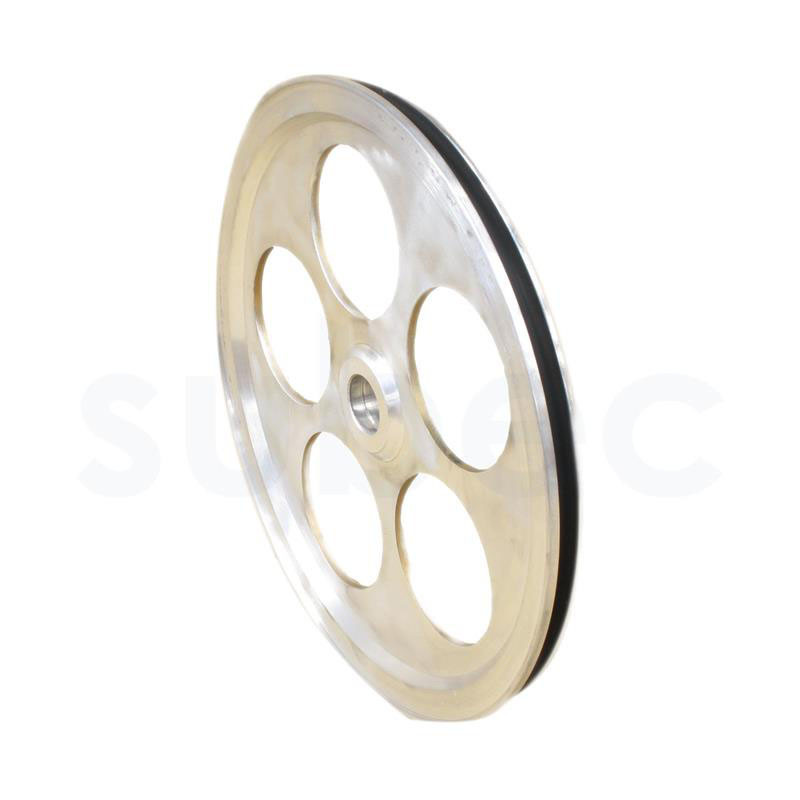

Ceramic Coated Groove, Weight Reduction Holes

Drawing No: 3-400463-01

Description

Durable aluminium wheel featuring varius groove profiles. The groove is coated with a ceramic layer that significantly increases wear resistance, making it ideal for demanding applications. This model has weight reduction holes for a for a lighter design without compromising structural integrity to provide lower inertia for your products.

Article. No	Material, Roller/Sheave	Diameter, Root	Diameter, Outer	Bearing Seat Diameter	Groove - Width	Groove - Radius	Nested
12070A	Aluminium	55.00 mm	55.00 mm	10.00 mm	18.00 mm	1.00 mm	No
15396	Aluminium	55.00 mm	70.00 mm	10.00 mm	6.40 mm	n/a mm	No
15324	Aluminium	270.00 mm	304.00 mm	28.00 mm	9.00 mm	4.50 mm	Yes
11070	Aluminium	300.00 mm	300.00 mm	42.00 mm	26.00 mm	5.50 mm	No
9256	Aluminium	300.00 mm	350.00 mm	42.00 mm	4.00 mm	2.00 mm	No

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert

Article. No	12070A
Material, Roller/Sheave	Aluminium
Diameter, Root	55.00 mm
Diameter, Outer	55.00 mm
Bearing Seat Diameter	10.00 mm
Groove - Width	18.00 mm
Groove - Radius	1.00 mm

Article. No	15396
Material, Roller/Sheave	Aluminium
Diameter, Root	55.00 mm
Diameter, Outer	70.00 mm
Bearing Seat Diameter	10.00 mm
Groove - Width	6.40 mm
Groove - Radius	n/a mm

Article. No	15324
Material, Roller/Sheave	Aluminium
Diameter, Root	270.00 mm
Diameter, Outer	304.00 mm
Bearing Seat Diameter	28.00 mm
Groove - Width	9.00 mm
Groove - Radius	4.50 mm

Article. No	11070
Material, Roller/Sheave	Aluminium
Diameter, Root	300.00 mm
Diameter, Outer	300.00 mm
Bearing Seat Diameter	42.00 mm
Groove - Width	26.00 mm
Groove - Radius	5.50 mm

Article. No	9256
Material, Roller/Sheave	Aluminium
Diameter, Root	300.00 mm
Diameter, Outer	350.00 mm
Bearing Seat Diameter	42.00 mm
Groove - Width	4.00 mm
Groove - Radius	2.00 mm
