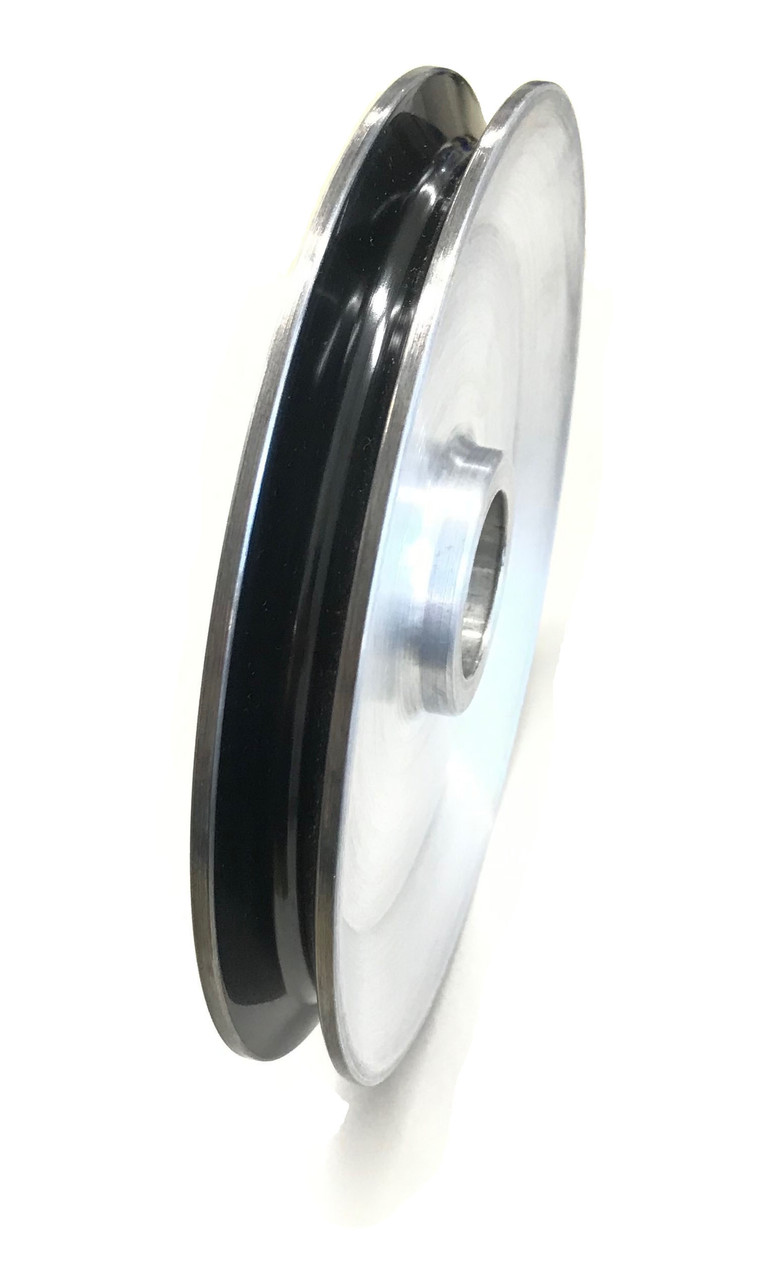

Ceramic Coated Groove, Standard

Ceramic Coated Groove, Standard

Drawing No: 1-400936-00

Description

Durable aluminium wheel featuring varius groove profiles. The groove is coated with a ceramic layer that significantly increases wear resistance, making it ideal for demanding applications.

Dimensions

  • Hide Filters
Article. No Material, Roller/Sheave Diameter, Root Diameter, Outer Bearing Seat Diameter Groove - Width Groove - Radius Nested
20744 Aluminium 33.00 mm 50.00 mm 24.00 mm 13.00 mm 6.00 mm No
19666 Aluminium AW 6061-T6 98.00 mm 114.00 mm 28.00 mm 7.00 mm n/a mm Yes
19041 Aluminium 64.00 mm 70.00 mm 13.00 mm 8.00 mm 3.00 mm No
16747 Aluminium 170.00 mm 200.00 mm 47.00 mm 14.00 mm 6.00 mm No
15296 Aluminium 95.00 mm 116.40 mm 28.00 mm 7.00 mm n/a mm Yes
15294 Aluminium 68.00 mm 77.00 mm 13.00 mm 10.00 mm 1.00 mm No
10511A Aluminium 170.00 mm 200.00 mm 47.00 mm n/a mm 3.00 mm No
7924A Aluminium 123.00 mm 143.00 mm 30.00 mm n/a mm 3.00 mm No
6578A Aluminium 90.00 mm 90.00 mm 35.00 mm 18.00 mm 2.50 mm No
13515 Aluminium 158.00 mm 176.00 mm 35.00 mm 20.78 mm 2.00 mm No
11840 Aluminium 90.00 mm 110.00 mm 32.00 mm 17.00 mm 2.50 mm No
8269 Aluminium 170.00 mm 210.00 mm 47.00 mm 21.00 mm 3.00 mm No

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 20744
Material, Roller/Sheave Aluminium
Diameter, Root 33.00 mm
Diameter, Outer 50.00 mm
Bearing Seat Diameter 24.00 mm
Groove - Width 13.00 mm
Groove - Radius 6.00 mm
Article. No 19666
Material, Roller/Sheave Aluminium AW 6061-T6
Diameter, Root 98.00 mm
Diameter, Outer 114.00 mm
Bearing Seat Diameter 28.00 mm
Groove - Width 7.00 mm
Groove - Radius n/a mm
Article. No 19041
Material, Roller/Sheave Aluminium
Diameter, Root 64.00 mm
Diameter, Outer 70.00 mm
Bearing Seat Diameter 13.00 mm
Groove - Width 8.00 mm
Groove - Radius 3.00 mm
Article. No 16747
Material, Roller/Sheave Aluminium
Diameter, Root 170.00 mm
Diameter, Outer 200.00 mm
Bearing Seat Diameter 47.00 mm
Groove - Width 14.00 mm
Groove - Radius 6.00 mm
Article. No 15296
Material, Roller/Sheave Aluminium
Diameter, Root 95.00 mm
Diameter, Outer 116.40 mm
Bearing Seat Diameter 28.00 mm
Groove - Width 7.00 mm
Groove - Radius n/a mm
Article. No 15294
Material, Roller/Sheave Aluminium
Diameter, Root 68.00 mm
Diameter, Outer 77.00 mm
Bearing Seat Diameter 13.00 mm
Groove - Width 10.00 mm
Groove - Radius 1.00 mm
Article. No 10511A
Material, Roller/Sheave Aluminium
Diameter, Root 170.00 mm
Diameter, Outer 200.00 mm
Bearing Seat Diameter 47.00 mm
Groove - Width n/a mm
Groove - Radius 3.00 mm
Article. No 7924A
Material, Roller/Sheave Aluminium
Diameter, Root 123.00 mm
Diameter, Outer 143.00 mm
Bearing Seat Diameter 30.00 mm
Groove - Width n/a mm
Groove - Radius 3.00 mm
Article. No 6578A
Material, Roller/Sheave Aluminium
Diameter, Root 90.00 mm
Diameter, Outer 90.00 mm
Bearing Seat Diameter 35.00 mm
Groove - Width 18.00 mm
Groove - Radius 2.50 mm
Article. No 13515
Material, Roller/Sheave Aluminium
Diameter, Root 158.00 mm
Diameter, Outer 176.00 mm
Bearing Seat Diameter 35.00 mm
Groove - Width 20.78 mm
Groove - Radius 2.00 mm
Article. No 11840
Material, Roller/Sheave Aluminium
Diameter, Root 90.00 mm
Diameter, Outer 110.00 mm
Bearing Seat Diameter 32.00 mm
Groove - Width 17.00 mm
Groove - Radius 2.50 mm
Article. No 8269
Material, Roller/Sheave Aluminium
Diameter, Root 170.00 mm
Diameter, Outer 210.00 mm
Bearing Seat Diameter 47.00 mm
Groove - Width 21.00 mm
Groove - Radius 3.00 mm
!
