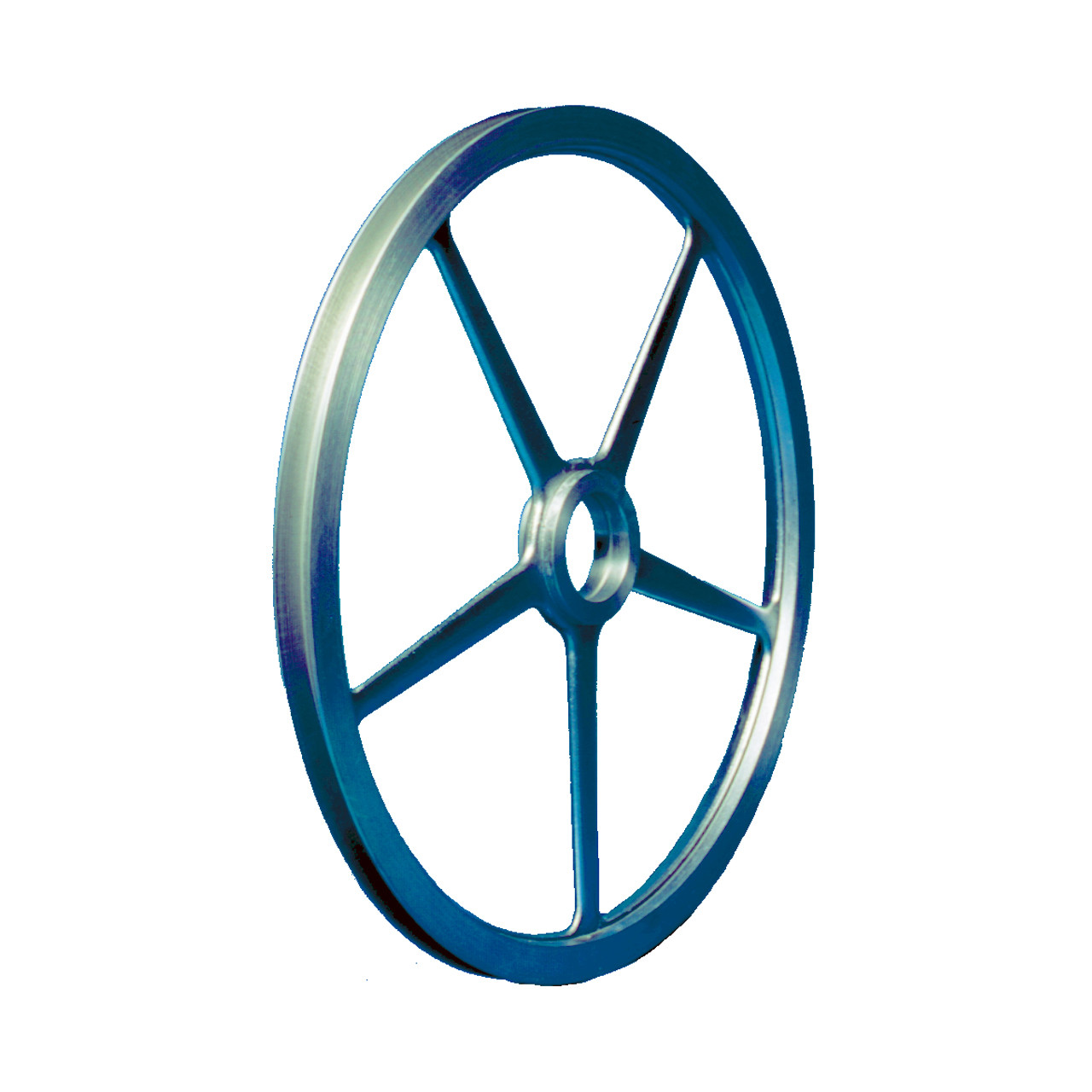

Casted Aluminium sheaves, Groove 15mm

Casted Aluminium sheaves, Groove 15mm

Drawing No: 3-400312-00

Description

Casted Aluminium sheaves with various groove profiles, with or without overlap and various surface treatments. Groove width 15mm and Diameters Ø500-Ø600mm.

Dimensions

  • Hide Filters
Article. No Material, Roller/Sheave Diameter, Root Diameter, Outer Bearing Seat Diameter Groove - Width Groove - Radius Nested
0080A Aluminium 500.00 mm 540.00 mm 68.00 mm 15.00 mm n/a mm Yes
7490 Aluminium 600.00 mm 640.00 mm 68.00 mm 15.00 mm n/a mm Yes
7358 Aluminium 500.00 mm 540.00 mm 68.00 mm 15.00 mm n/a mm Yes
7332 Aluminium 600.00 mm 640.00 mm 68.00 mm 15.00 mm 7.50 mm Yes

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 0080A
Material, Roller/Sheave Aluminium
Diameter, Root 500.00 mm
Diameter, Outer 540.00 mm
Bearing Seat Diameter 68.00 mm
Groove - Width 15.00 mm
Groove - Radius n/a mm
Article. No 7490
Material, Roller/Sheave Aluminium
Diameter, Root 600.00 mm
Diameter, Outer 640.00 mm
Bearing Seat Diameter 68.00 mm
Groove - Width 15.00 mm
Groove - Radius n/a mm
Article. No 7358
Material, Roller/Sheave Aluminium
Diameter, Root 500.00 mm
Diameter, Outer 540.00 mm
Bearing Seat Diameter 68.00 mm
Groove - Width 15.00 mm
Groove - Radius n/a mm
Article. No 7332
Material, Roller/Sheave Aluminium
Diameter, Root 600.00 mm
Diameter, Outer 640.00 mm
Bearing Seat Diameter 68.00 mm
Groove - Width 15.00 mm
Groove - Radius 7.50 mm
!
