Two shaft ends D20, Support section for brackets

Two shaft ends D20, Support section for brackets

Drawing No: 3-400288-00

Description

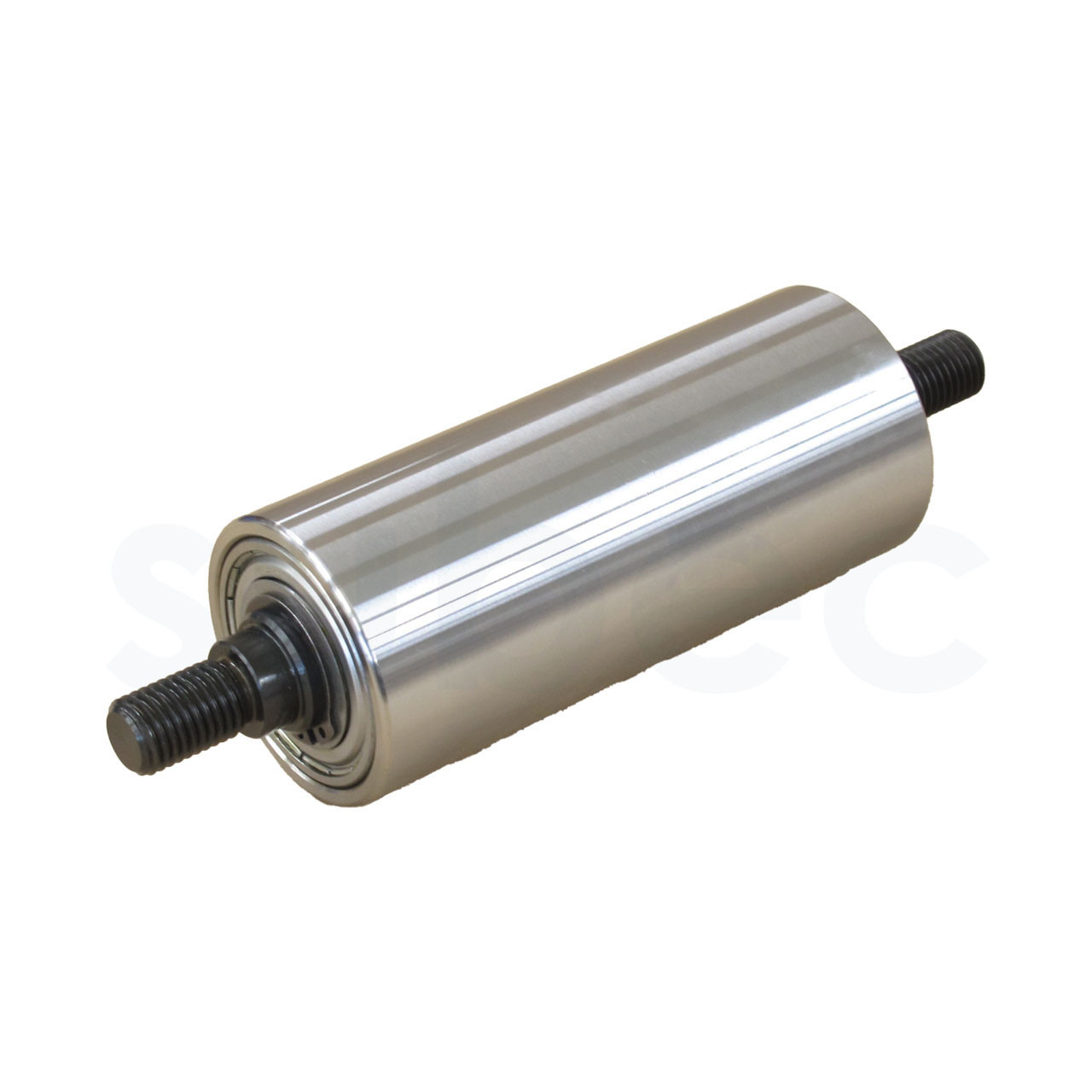

HRX Rollers with two M16 shaft ends and a d20 support section for brackets, available in various diameters, lengths, and cylinder materials to suit different applications.

Dimensions

  • Hide Filters
Article. No Diameter, Outer Length Material, Roller/Sheave Coating Thread 1 Thread 1 pitch Thread 1 length Thread 1 Internal Thread 2 Thread 2 pitch Thread 2 length Thread 2 Internal Shaft end diameter Shaft end length Key width Key Height
5105 80.00 mm 203.00 mm HRX n/a 16 M 1.50 mm 28.00 mm No 16 M 1.50 mm 28.00 mm No n/a mm n/a mm 22.00 mm 11.00 mm
2254 60.00 mm 140.00 mm HRX n/a 16 M 1.50 mm 25.00 mm No 16 M 1.50 mm 25.00 mm No n/a mm n/a mm 20.00 mm 8.00 mm
0658 60.00 mm 170.00 mm HRX n/a 16 M 1.50 mm 25.00 mm No 16 M 1.50 mm 25.00 mm No n/a mm n/a mm 25.00 mm 8.00 mm

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 5105
Diameter, Outer 80.00 mm
Length 203.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 16 M
Thread 1 pitch 1.50 mm
Article. No 2254
Diameter, Outer 60.00 mm
Length 140.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 16 M
Thread 1 pitch 1.50 mm
Article. No 0658
Diameter, Outer 60.00 mm
Length 170.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 16 M
Thread 1 pitch 1.50 mm
!
