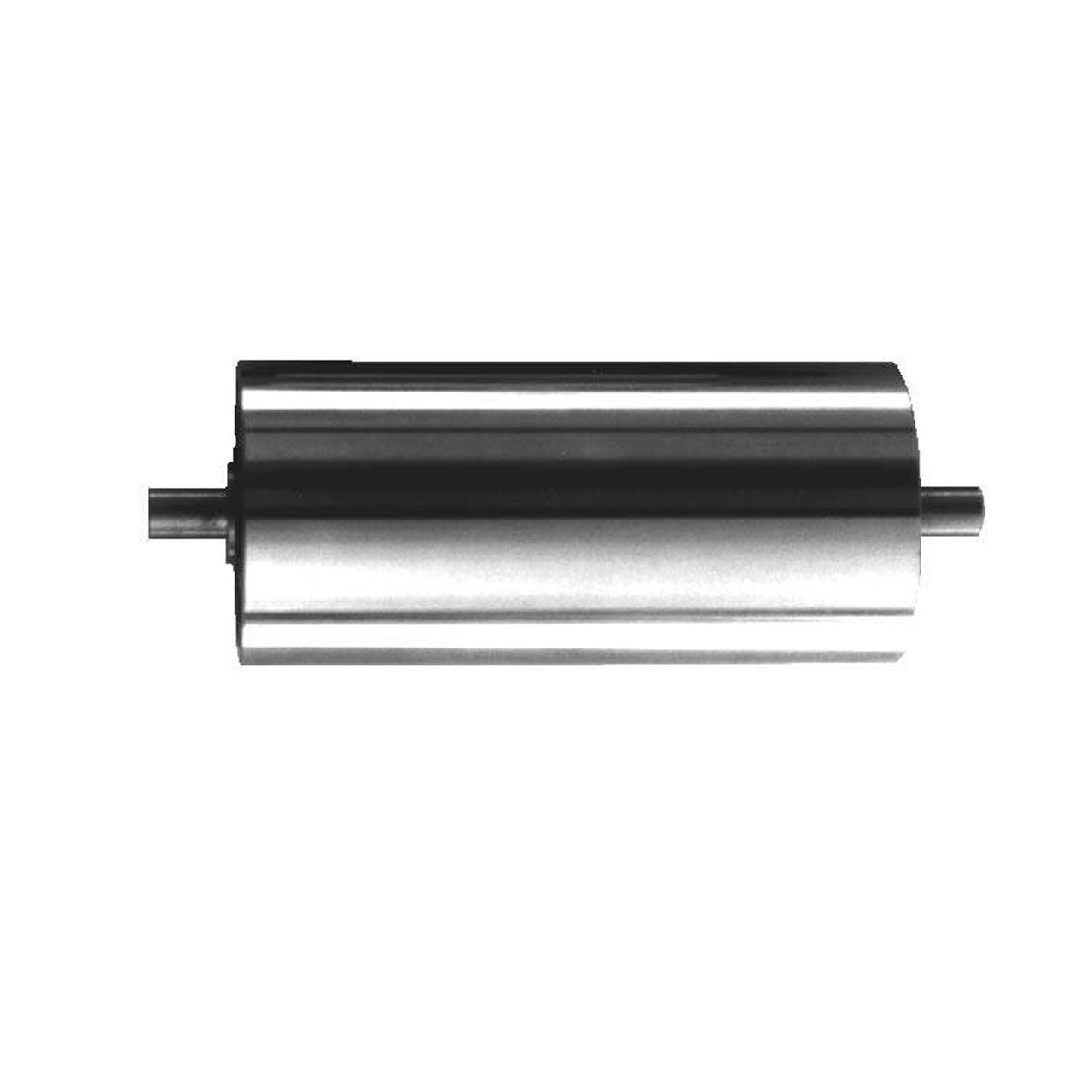

Symmetrical rollers with double-ended shafts

Symmetrical rollers with double-ended shafts

Drawing No: 3-400339-01

Description

These rollers are made from HRX material and feature two shaft ends. Unlike the standard design, both bearings are symmetrically positioned at the very ends of the cylinder, rather than having one bearing offset further inside. Available in various lengths, diameters, and thread configurations.

Dimensions

  • Hide Filters
Article. No Diameter, Outer Length Material, Roller/Sheave Coating Thread 1 Thread 1 pitch Thread 1 length Thread 1 Internal Thread 2 Thread 2 pitch Thread 2 length Thread 2 Internal Shaft end diameter Shaft end length Key width Key Height
6945A 20.00 mm 40.00 mm HRX Cr. 8 M 1.25 mm 11.00 mm n/a 8 M 1.25 mm 11.00 mm n/a n/a mm n/a mm n/a mm n/a mm
1886 40.00 mm 110.00 mm HRX n/a n/a M n/a mm n/a mm n/a n/a M n/a mm n/a mm n/a 10.00 mm 12.00 mm n/a mm n/a mm

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 6945A
Diameter, Outer 20.00 mm
Length 40.00 mm
Material, Roller/Sheave HRX
Coating Cr.
Thread 1 8 M
Thread 1 pitch 1.25 mm
Article. No 1886
Diameter, Outer 40.00 mm
Length 110.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 n/a M
Thread 1 pitch n/a mm
!
