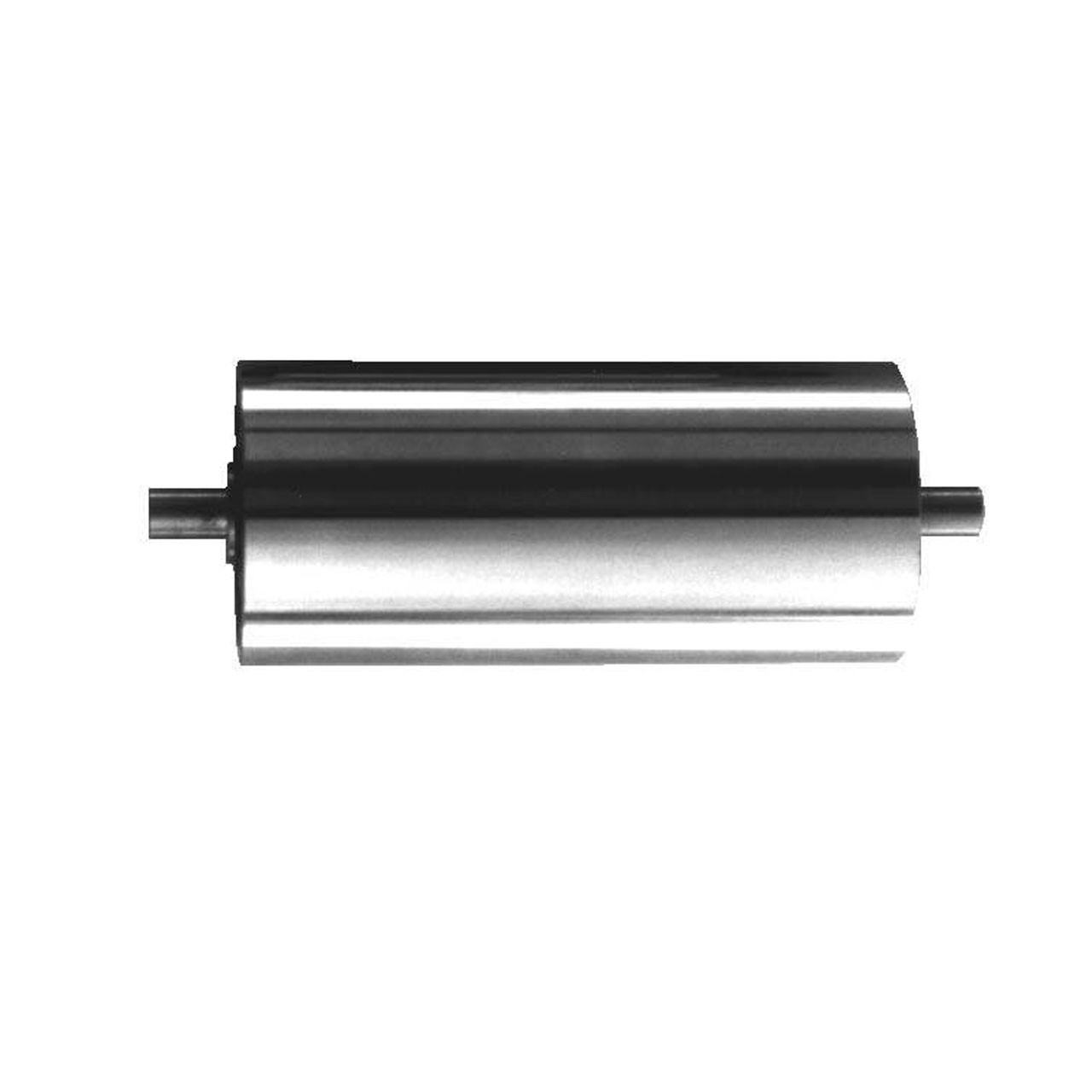

Standard double-ended shafts w/ or w/o thread

Standard double-ended shafts w/ or w/o thread

Drawing No: 3-400169-00

Description

Rollers in HRX material with two shaft ends. Comes in different lengths and diameters as well as with different thread designs.

Dimensions

  • Hide Filters
Article. No Diameter, Outer Length Material, Roller/Sheave Coating Thread 1 Thread 1 pitch Thread 1 length Thread 1 Internal Thread 2 Thread 2 pitch Thread 2 length Thread 2 Internal Shaft end diameter Shaft end length Key width Key Height Suffix
5993 20.00 mm 100.00 mm HRX n/a 8 M 1.25 mm 20.00 mm No 8 M 1.25 mm 20.00 mm No n/a mm n/a mm n/a mm n/a mm
5390 30.00 mm 40.00 mm HRX n/a n/a M n/a mm n/a mm n/a n/a M n/a mm n/a mm n/a 10.00 mm 15.00 mm n/a mm n/a mm
5274 20.00 mm 60.00 mm HRX n/a n/a M n/a mm n/a mm n/a n/a M n/a mm n/a mm n/a 8.00 mm 15.00 mm n/a mm n/a mm
5273 20.00 mm 40.00 mm HRX n/a n/a M n/a mm n/a mm n/a n/a M n/a mm n/a mm n/a 8.00 mm 15.00 mm n/a mm n/a mm
5261 20.00 mm 100.00 mm HRX n/a n/a M n/a mm n/a mm n/a n/a M n/a mm n/a mm n/a 8.00 mm 15.00 mm n/a mm n/a mm
4618 30.00 mm 110.00 mm HRX n/a n/a M n/a mm n/a mm n/a n/a M n/a mm n/a mm n/a 10.00 mm 15.00 mm n/a mm n/a mm
8918 40.00 mm 200.00 mm HRX n/a 10 M 1.50 mm 20.00 mm No 10 M 1.50 mm 20.00 mm No n/a mm n/a mm n/a mm n/a mm
8087 20.00 mm 80.00 mm HRX n/a n/a M n/a mm n/a mm n/a n/a M n/a mm n/a mm n/a 8.00 mm 15.00 mm n/a mm n/a mm
6375 30.00 mm 90.00 mm HRX n/a n/a M n/a mm n/a mm n/a n/a M n/a mm n/a mm n/a 10.00 mm 12.50 mm n/a mm n/a mm
6283 40.00 mm 150.00 mm HRX HRX 12 M 1.75 mm 30.00 mm No 12 M 1.75 mm 30.00 mm No n/a mm n/a mm n/a mm n/a mm
3406 50.00 mm 160.00 mm HRX n/a 12 M 1.75 mm 34.00 mm 12 M 1.75 mm 34.00 mm n/a mm n/a mm n/a mm n/a mm
1036 40.00 mm 90.00 mm Cr. n/a n/a M n/a mm n/a mm n/a n/a M n/a mm n/a mm n/a 10.00 mm 15.00 mm n/a mm n/a mm
0781 60.00 mm 130.00 mm Cr. n/a n/a M n/a mm n/a mm n/a n/a M n/a mm n/a mm n/a 10.00 mm 15.00 mm n/a mm n/a mm
0136 40.00 mm 110.00 mm HRX n/a n/a M n/a mm n/a mm No n/a M n/a mm n/a mm No 10.00 mm 15.00 mm n/a mm n/a mm
0134 40.00 mm 60.00 mm HRX n/a n/a M n/a mm n/a mm n/a n/a M n/a mm n/a mm n/a 10.00 mm 15.00 mm n/a mm n/a mm
0111 30.00 mm 60.00 mm HRX n/a n/a M n/a mm n/a mm No n/a M n/a mm n/a mm No 10.00 mm 15.00 mm n/a mm n/a mm n/a

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 5993
Diameter, Outer 20.00 mm
Length 100.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 8 M
Thread 1 pitch 1.25 mm
Article. No 5390
Diameter, Outer 30.00 mm
Length 40.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 n/a M
Thread 1 pitch n/a mm
Article. No 5274
Diameter, Outer 20.00 mm
Length 60.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 n/a M
Thread 1 pitch n/a mm
Article. No 5273
Diameter, Outer 20.00 mm
Length 40.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 n/a M
Thread 1 pitch n/a mm
Article. No 5261
Diameter, Outer 20.00 mm
Length 100.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 n/a M
Thread 1 pitch n/a mm
Article. No 4618
Diameter, Outer 30.00 mm
Length 110.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 n/a M
Thread 1 pitch n/a mm
Article. No 8918
Diameter, Outer 40.00 mm
Length 200.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 10 M
Thread 1 pitch 1.50 mm
Article. No 8087
Diameter, Outer 20.00 mm
Length 80.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 n/a M
Thread 1 pitch n/a mm
Article. No 6375
Diameter, Outer 30.00 mm
Length 90.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 n/a M
Thread 1 pitch n/a mm
Article. No 6283
Diameter, Outer 40.00 mm
Length 150.00 mm
Material, Roller/Sheave HRX
Coating HRX
Thread 1 12 M
Thread 1 pitch 1.75 mm
Article. No 3406
Diameter, Outer 50.00 mm
Length 160.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 12 M
Thread 1 pitch 1.75 mm
Article. No 1036
Diameter, Outer 40.00 mm
Length 90.00 mm
Material, Roller/Sheave Cr.
Coating n/a
Thread 1 n/a M
Thread 1 pitch n/a mm
Article. No 0781
Diameter, Outer 60.00 mm
Length 130.00 mm
Material, Roller/Sheave Cr.
Coating n/a
Thread 1 n/a M
Thread 1 pitch n/a mm
Article. No 0136
Diameter, Outer 40.00 mm
Length 110.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 n/a M
Thread 1 pitch n/a mm
Article. No 0134
Diameter, Outer 40.00 mm
Length 60.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 n/a M
Thread 1 pitch n/a mm
Article. No 0111
Diameter, Outer 30.00 mm
Length 60.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 n/a M
Thread 1 pitch n/a mm
!
