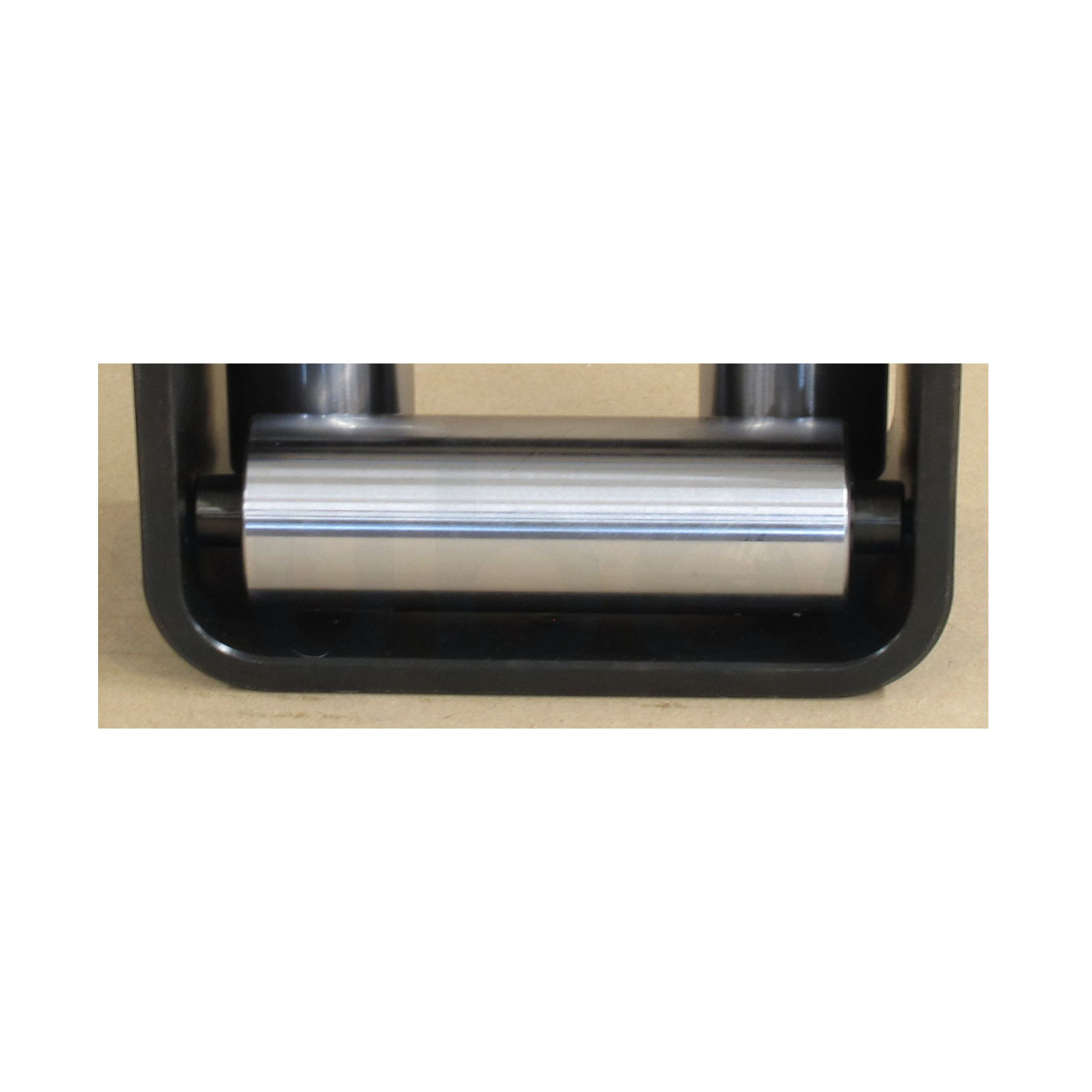

Spare Rollers, Fixed Roller Cross Draw 3-400401-00

Spare Rollers, Fixed Roller Cross Draw 3-400401-00

Drawing No: 3-400401-01

Description

Spare Roller for Fixed Roller Cross Draw 3-400401-00. These rollers are made from HRX material and feature two conical center holes or inner threads for axial fixation. Both bearings are symmetrically positioned at the very ends of the cylinder. They are available in various lengths, diameters, and internal thread configurations.

Dimensions

  • Hide Filters
Article. No Diameter, Outer Length Material, Roller/Sheave Coating Thread 1 Thread 1 pitch Thread 1 length Thread 1 Internal Thread 2 Thread 2 pitch Thread 2 length Thread 2 Internal Shaft end diameter Shaft end length Key width Key Height
15008 40.00 mm 120.00 mm HRX n/a 4 M n/a mm 5.00 mm Yes 4 M n/a mm 5.00 mm Yes 16.00 mm n/a mm n/a mm n/a mm
14129 30.00 mm 90.00 mm HRX HRX n/a M n/a mm n/a mm No n/a M n/a mm n/a mm n/a 10.00 mm 5.50 mm n/a mm n/a mm

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 15008
Diameter, Outer 40.00 mm
Length 120.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 4 M
Thread 1 pitch n/a mm
Article. No 14129
Diameter, Outer 30.00 mm
Length 90.00 mm
Material, Roller/Sheave HRX
Coating HRX
Thread 1 n/a M
Thread 1 pitch n/a mm
!
