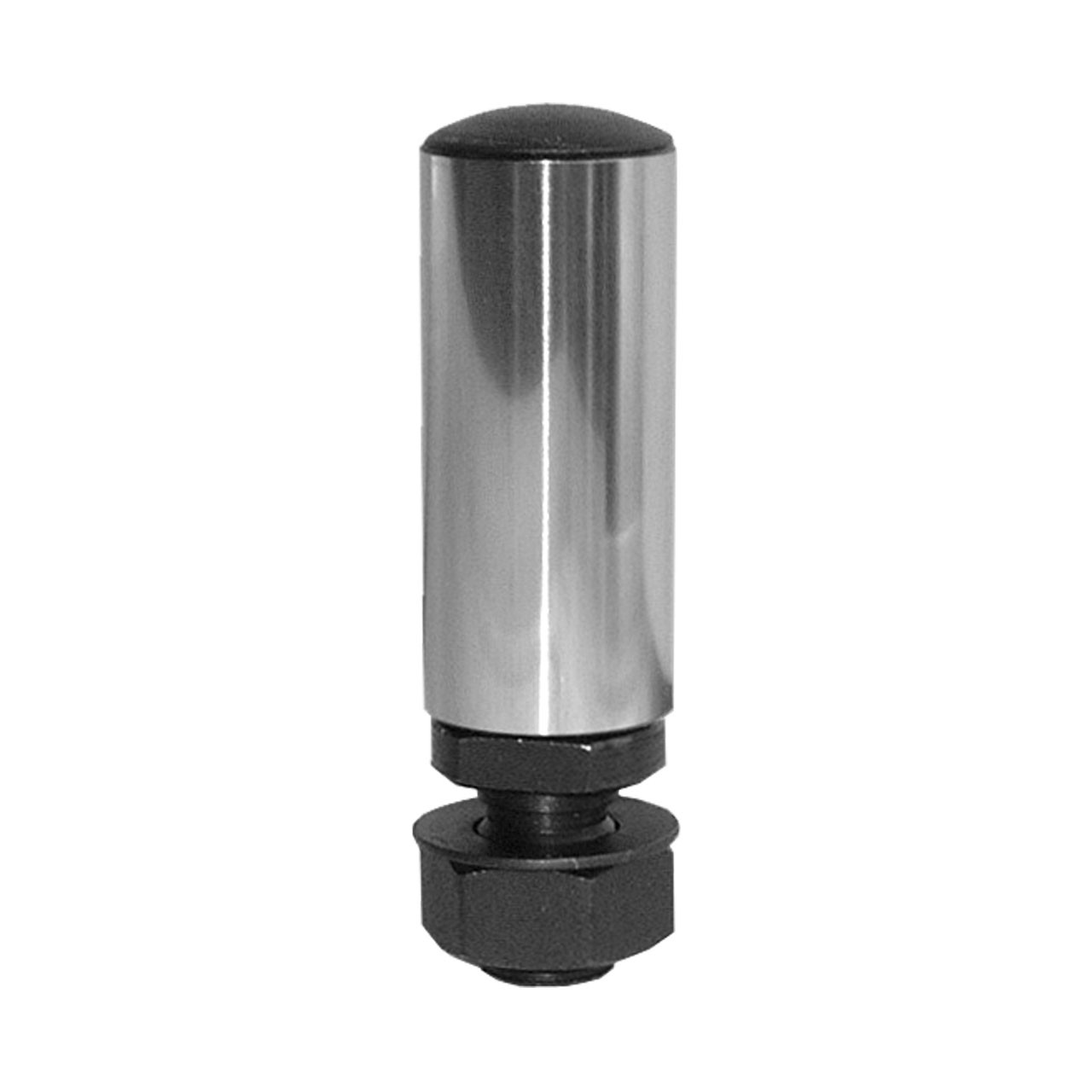

One Shaft-end Roller with Nut

One Shaft-end Roller with Nut

Drawing No: 3-400231-00

Description

This Subec Roller comes with various thread pitch, length and diameter. Most common the D25 mm and L67 mm

Dimensions

  • Hide Filters
Article. No Diameter, Outer Length Material, Roller/Sheave Coating Thread 1 Thread 1 pitch Thread 1 length Thread 1 Internal Thread 2 Thread 2 pitch Thread 2 length Thread 2 Internal Shaft end diameter Shaft end length Key width Key Height
8341 25.00 mm 100.00 mm HRX n/a 14 M 1.50 mm 12.00 mm No n/a M n/a mm n/a mm n/a n/a mm n/a mm 19.00 mm 8.00 mm
7456 25.00 mm 32.00 mm HRX n/a 10 M 1.50 mm 13.00 mm No n/a M n/a mm n/a mm No n/a mm n/a mm 6.00 mm 5.00 mm
7446 20.00 mm 27.00 mm HRX n/a 10 M 1.25 mm 1.25 mm No n/a M n/a mm n/a mm No n/a mm n/a mm 14.00 mm 7.00 mm
5966 20.00 mm 60.00 mm HRX n/a 14 M 2.00 mm 23.00 mm No n/a M n/a mm n/a mm No n/a mm n/a mm 19.00 mm 6.50 mm
5557 25.00 mm 67.00 mm HRX n/a 14 M 1.50 mm 27.00 mm No n/a M n/a mm n/a mm No n/a mm n/a mm 19.00 mm 5.50 mm
5127 25.00 mm 67.00 mm HRX n/a 14 M 1.00 mm 27.00 mm No n/a M n/a mm n/a mm No 14.00 mm 27.00 mm 19.00 mm 6.50 mm
1005 24.00 mm 54.00 mm Hardened Steel HRC 55 n/a 14 M 1.00 mm 20.00 mm No n/a M n/a mm n/a mm No n/a mm n/a mm 19.00 mm 5.00 mm
0700 24.00 mm 67.00 mm Hardened Steel HRC 55 n/a 14 M 1.50 mm 27.00 mm No n/a M n/a mm n/a mm n/a n/a mm n/a mm 19.00 mm 6.50 mm

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 8341
Diameter, Outer 25.00 mm
Length 100.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 14 M
Thread 1 pitch 1.50 mm
Article. No 7456
Diameter, Outer 25.00 mm
Length 32.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 10 M
Thread 1 pitch 1.50 mm
Article. No 7446
Diameter, Outer 20.00 mm
Length 27.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 10 M
Thread 1 pitch 1.25 mm
Article. No 5966
Diameter, Outer 20.00 mm
Length 60.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 14 M
Thread 1 pitch 2.00 mm
Article. No 5557
Diameter, Outer 25.00 mm
Length 67.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 14 M
Thread 1 pitch 1.50 mm
Article. No 5127
Diameter, Outer 25.00 mm
Length 67.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 14 M
Thread 1 pitch 1.00 mm
Article. No 1005
Diameter, Outer 24.00 mm
Length 54.00 mm
Material, Roller/Sheave Hardened Steel HRC 55
Coating n/a
Thread 1 14 M
Thread 1 pitch 1.00 mm
Article. No 0700
Diameter, Outer 24.00 mm
Length 67.00 mm
Material, Roller/Sheave Hardened Steel HRC 55
Coating n/a
Thread 1 14 M
Thread 1 pitch 1.50 mm
!
