Double-ended internal-shaft

Double-ended internal-shaft

Drawing No: 3-400289-01

Description

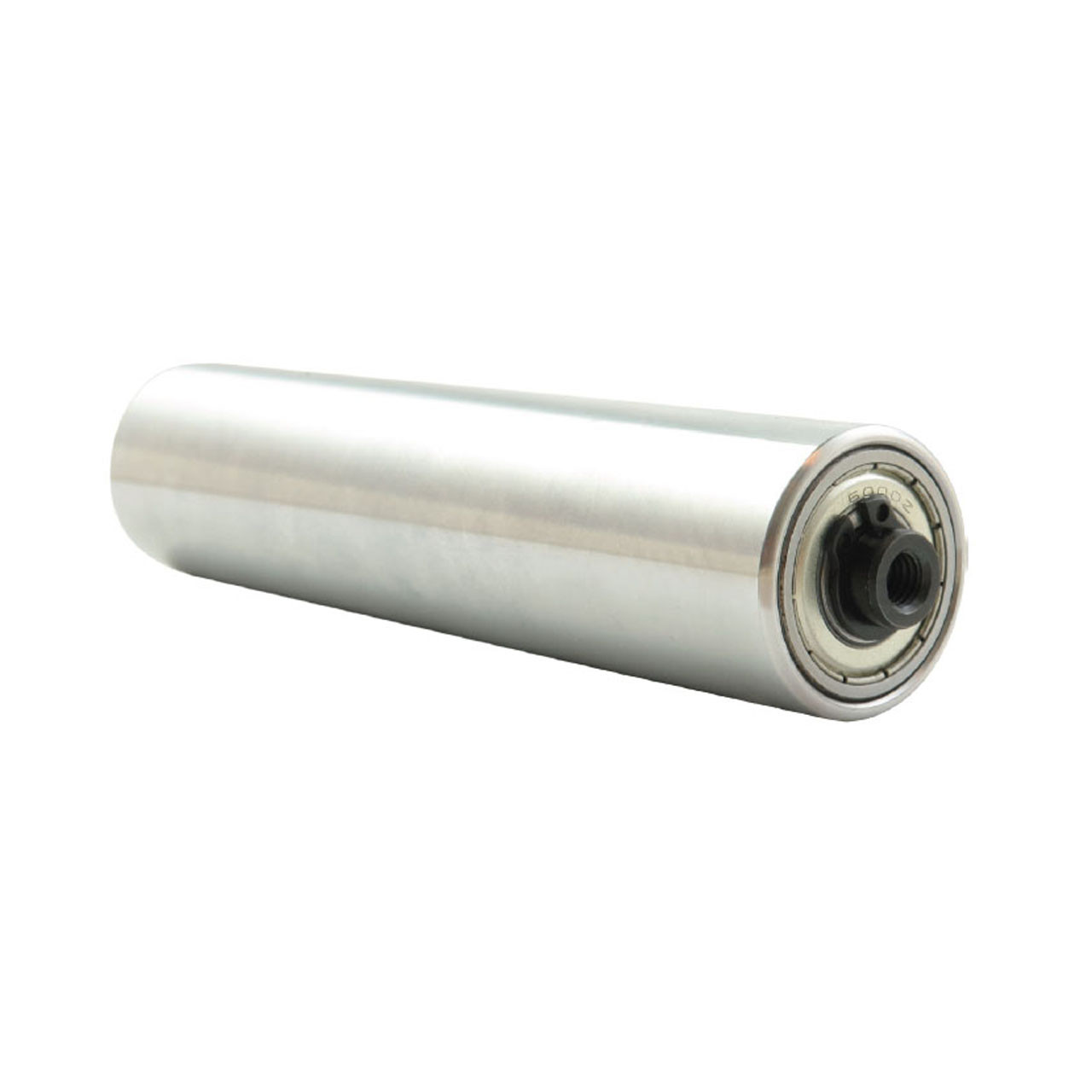

These rollers are made from HRX material and feature two conical center holes or inner threads for axial fixation. Both bearings are symmetrically positioned at the very ends of the cylinder. They are available in various lengths, diameters, and internal thread configurations.

Dimensions

  • Hide Filters
Article. No Diameter, Outer Length Material, Roller/Sheave Coating Thread 1 Thread 1 pitch Thread 1 length Thread 1 Internal Thread 2 Thread 2 pitch Thread 2 length Thread 2 Internal Shaft end diameter Shaft end length Key width Key Height
20465 30.00 mm 130.00 mm HRX n/a 10 M 1.50 mm -10.00 mm Yes 10 M 1.50 mm -10.00 mm Yes n/a mm n/a mm n/a mm n/a mm
17642 80.00 mm 300.00 mm HRX n/a 12 M 1.75 mm -20.00 mm Yes 12 M 1.75 mm -20.00 mm Yes 25.00 mm 5.00 mm n/a mm n/a mm
14994 60.00 mm 210.00 mm HRX n/a 8 M 1.25 mm 20.00 mm Yes 8 M 1.25 mm 20.00 mm Yes 25.00 mm 5.00 mm n/a mm n/a mm
12562 25.00 mm 275.00 mm HRX n/a 6 M 1.00 mm 10.00 mm Yes 6 M 1.00 mm 10.00 mm Yes 9.00 mm 2.50 mm n/a mm n/a mm
8719 25.00 mm 60.00 mm HRX n/a n/a M n/a mm n/a mm No n/a M n/a mm n/a mm No 8.60 mm 3.50 mm n/a mm n/a mm
1553 80.00 mm 300.00 mm HRX n/a 14 M 2.00 mm -20.00 mm Yes 14 M 2.00 mm -20.00 mm Yes 25.00 mm 5.00 mm n/a mm n/a mm

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 20465
Diameter, Outer 30.00 mm
Length 130.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 10 M
Thread 1 pitch 1.50 mm
Article. No 17642
Diameter, Outer 80.00 mm
Length 300.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 12 M
Thread 1 pitch 1.75 mm
Article. No 14994
Diameter, Outer 60.00 mm
Length 210.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 8 M
Thread 1 pitch 1.25 mm
Article. No 12562
Diameter, Outer 25.00 mm
Length 275.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 6 M
Thread 1 pitch 1.00 mm
Article. No 8719
Diameter, Outer 25.00 mm
Length 60.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 n/a M
Thread 1 pitch n/a mm
Article. No 1553
Diameter, Outer 80.00 mm
Length 300.00 mm
Material, Roller/Sheave HRX
Coating n/a
Thread 1 14 M
Thread 1 pitch 2.00 mm
!
