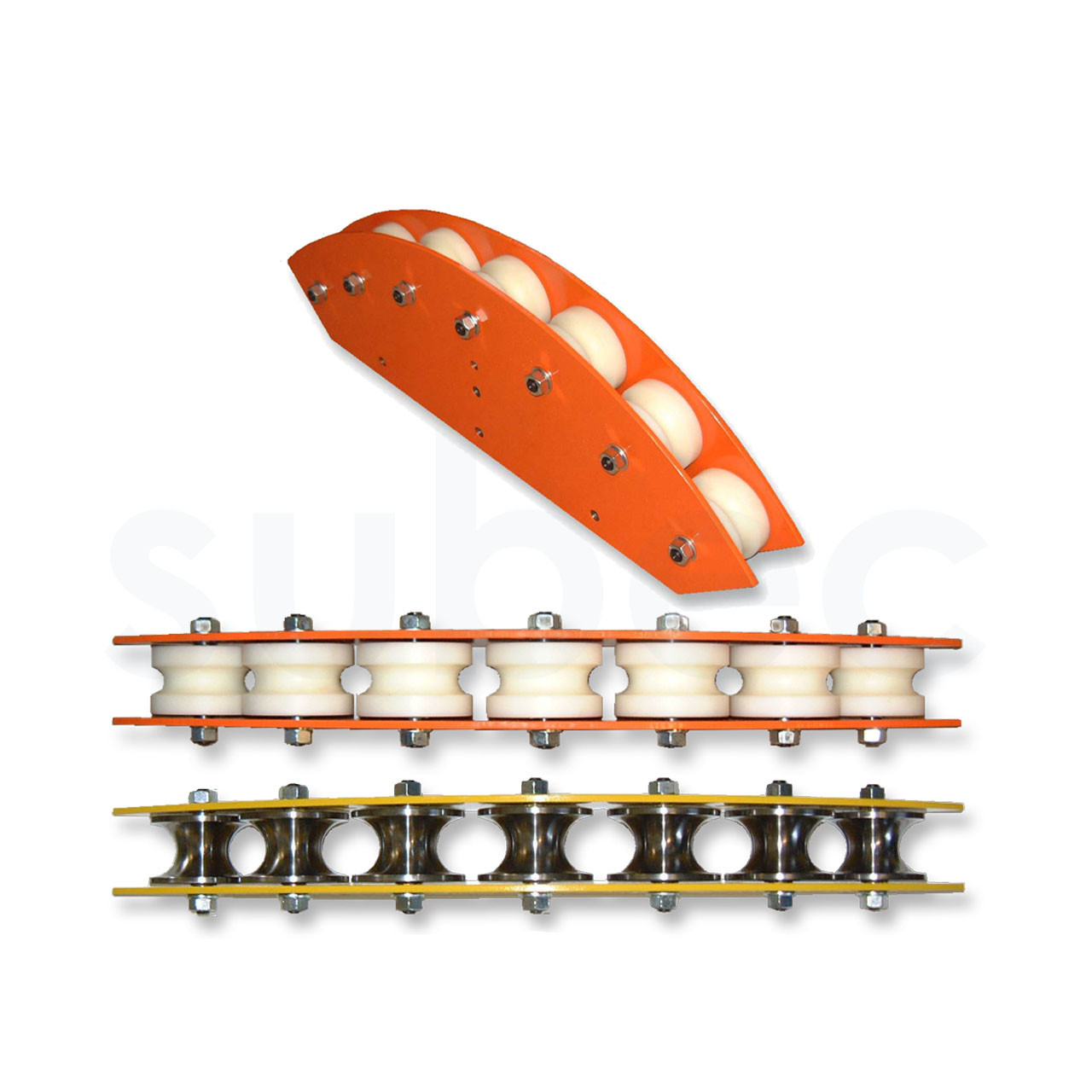

Examples 90° Roller Arc

Examples 90° Roller Arc

Drawing No: 3-300108-00

Description

Standard 90° roller arc designed for precise redirection where a smooth and controlled bend is required. Available in various dimensions and materials. Can be tailored to specific needs.

Dimensions

  • Hide Filters
Article. No Product Range - MIN Product Range - MAX Radius Diameter, Outer Diameter, Root Groove - Radius Groove - Angle Material, Roller/Sheave Rollers - Horizontal Rollers - Vertical Width
20566 5.00 mm 160.00 mm 1400.00 mm 256.00 mm 98.00 mm n/a mm 90.00 ° POM 14 1941.00 mm
19577 0.00 mm 20.00 mm 800.00 mm 100.00 mm 60.00 mm 20.00 mm n/a ° PA6 12 n/a 875.00 mm
1603A 0.00 mm 40.00 mm 400.00 mm 80.00 mm 40.00 mm 20.00 mm n/a ° Steel 7 n/a 100.00 mm
12192 0.00 mm 10.00 mm 400.00 mm 80.00 mm 60.00 mm 10.00 mm n/a ° PA6 7 n/a 100.00 mm
11481 0.00 mm 50.00 mm 400.00 mm 90.00 mm 40.00 mm 25.00 mm n/a ° Steel n/a 6 134.00 mm

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 20566
Product Range - MIN 5.00 mm
Product Range - MAX 160.00 mm
Radius 1400.00 mm
Diameter, Outer 256.00 mm
Diameter, Root 98.00 mm
Groove - Radius n/a mm
Article. No 19577
Product Range - MIN 0.00 mm
Product Range - MAX 20.00 mm
Radius 800.00 mm
Diameter, Outer 100.00 mm
Diameter, Root 60.00 mm
Groove - Radius 20.00 mm
Article. No 1603A
Product Range - MIN 0.00 mm
Product Range - MAX 40.00 mm
Radius 400.00 mm
Diameter, Outer 80.00 mm
Diameter, Root 40.00 mm
Groove - Radius 20.00 mm
Article. No 12192
Product Range - MIN 0.00 mm
Product Range - MAX 10.00 mm
Radius 400.00 mm
Diameter, Outer 80.00 mm
Diameter, Root 60.00 mm
Groove - Radius 10.00 mm
Article. No 11481
Product Range - MIN 0.00 mm
Product Range - MAX 50.00 mm
Radius 400.00 mm
Diameter, Outer 90.00 mm
Diameter, Root 40.00 mm
Groove - Radius 25.00 mm
!
