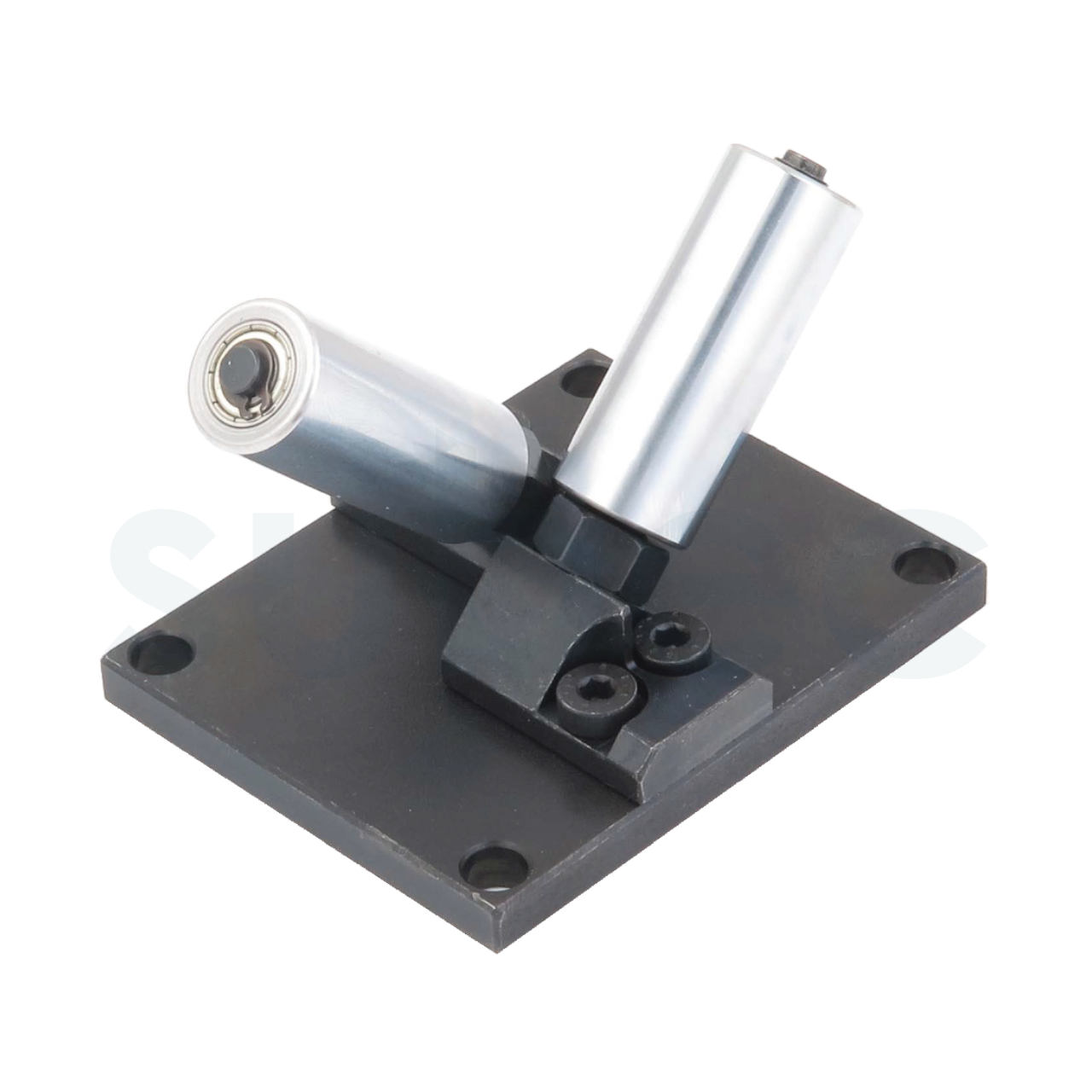

V-Guide 90°

V-Guide 90°

Drawing No: 3-400531-00

Description

Subec’s V-Guides are designed to provide high versatility in product guiding applications. The design enables optimal alignment across a wide range of materials and process conditions. The unit can be configured with rollers in different material options to accommodate specific friction, wear, or environmental requirements, making it an adaptable solution for your production lines.

Dimensions

  • Hide Filters
Article. No Product Range - MIN Product Range - MAX Diameter, Roller Vert. Length, Roller Vert. Diameter, Roller Horz. Length, Roller Horz. Material, Roller/Sheave Suffix
21338 20.00 mm 280.00 mm 80.00 mm 200.00 mm n/a mm n/a mm PU 70 Shore A n/a
9784 0.00 mm 50.00 mm 16.00 mm 40.00 mm n/a mm n/a mm HRX n/a

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 21338
Product Range - MIN 20.00 mm
Product Range - MAX 280.00 mm
Diameter, Roller Vert. 80.00 mm
Length, Roller Vert. 200.00 mm
Diameter, Roller Horz. n/a mm
Length, Roller Horz. n/a mm
Article. No 9784
Product Range - MIN 0.00 mm
Product Range - MAX 50.00 mm
Diameter, Roller Vert. 16.00 mm
Length, Roller Vert. 40.00 mm
Diameter, Roller Horz. n/a mm
Length, Roller Horz. n/a mm
!
