These roller guides are designed with one horizontal roller and two independently adjustable vertical rollers. The vertical rollers can be repositioned along the slotted base by loosening the mounting fasteners, allowing precise adjustment of the opening width to suit the required application. The series is available in multiple sizes and opening ranges, with vertical roller lengths configurable according to specification.
Standard configuration includes HRX rollers manufactured from hardened steel cylinders with a chrome-plated surface, ensuring high wear resistance and extended service life. Alternative roller materials, such as polyurethane or technical plastics, can be supplied upon request to accommodate specific operational or material-handling requirements.

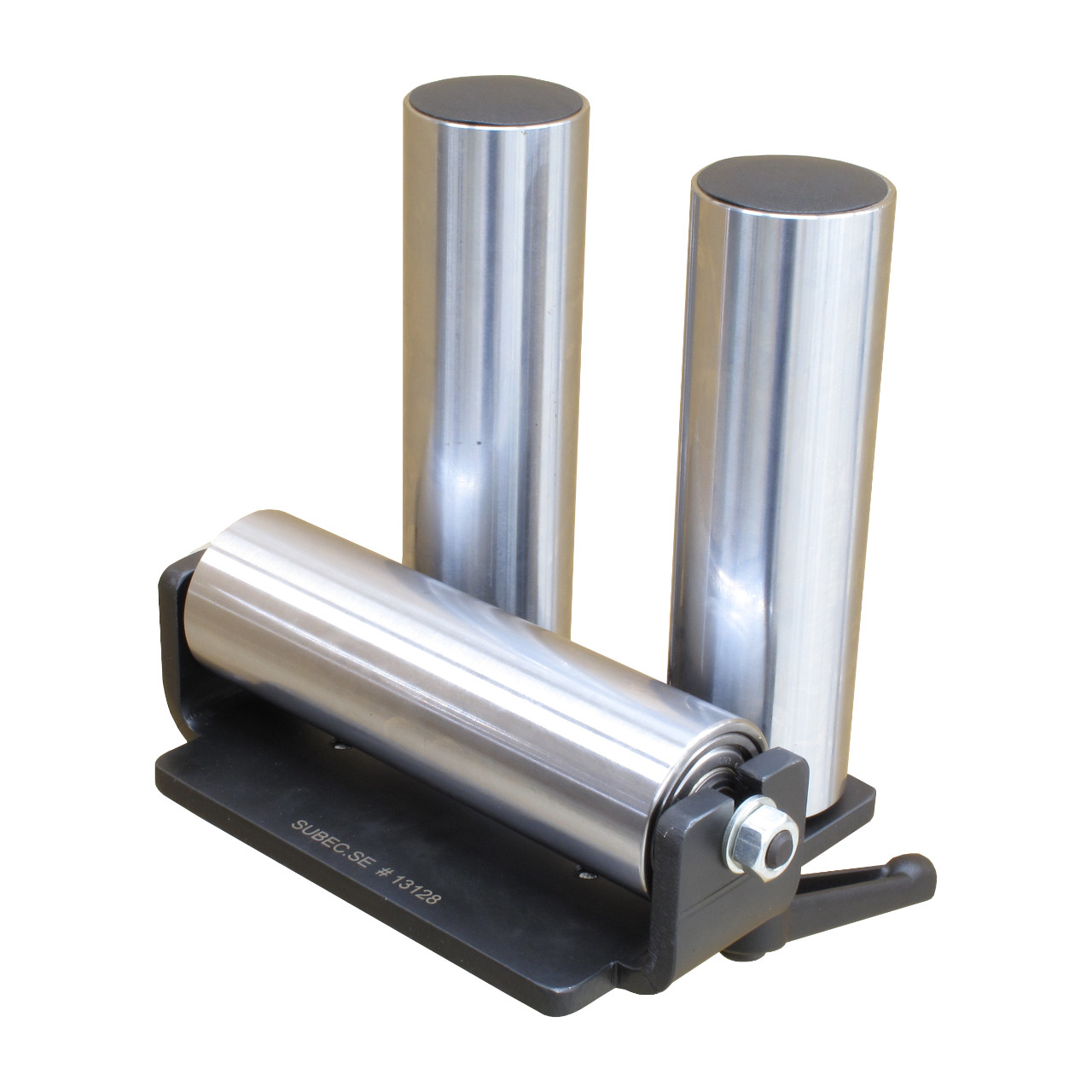

Slotted Roller Guide, Adj. Vert. Rollers
Drawing No: 3-401359-00
Description
These roller guides are designed with one horizontal roller and two independently adjustable vertical rollers. The vertical rollers can be repositioned along the slotted base by loosening the mounting fasteners, allowing precise adjustment of the opening width to suit the required application. The series is available in multiple sizes and opening ranges, with vertical roller lengths configurable according to specification.
Standard configuration includes HRX rollers manufactured from hardened steel cylinders with a chrome-plated surface, ensuring high wear resistance and extended service life. Alternative roller materials, such as polyurethane or technical plastics, can be supplied upon request to accommodate specific operational or material-handling requirements.
