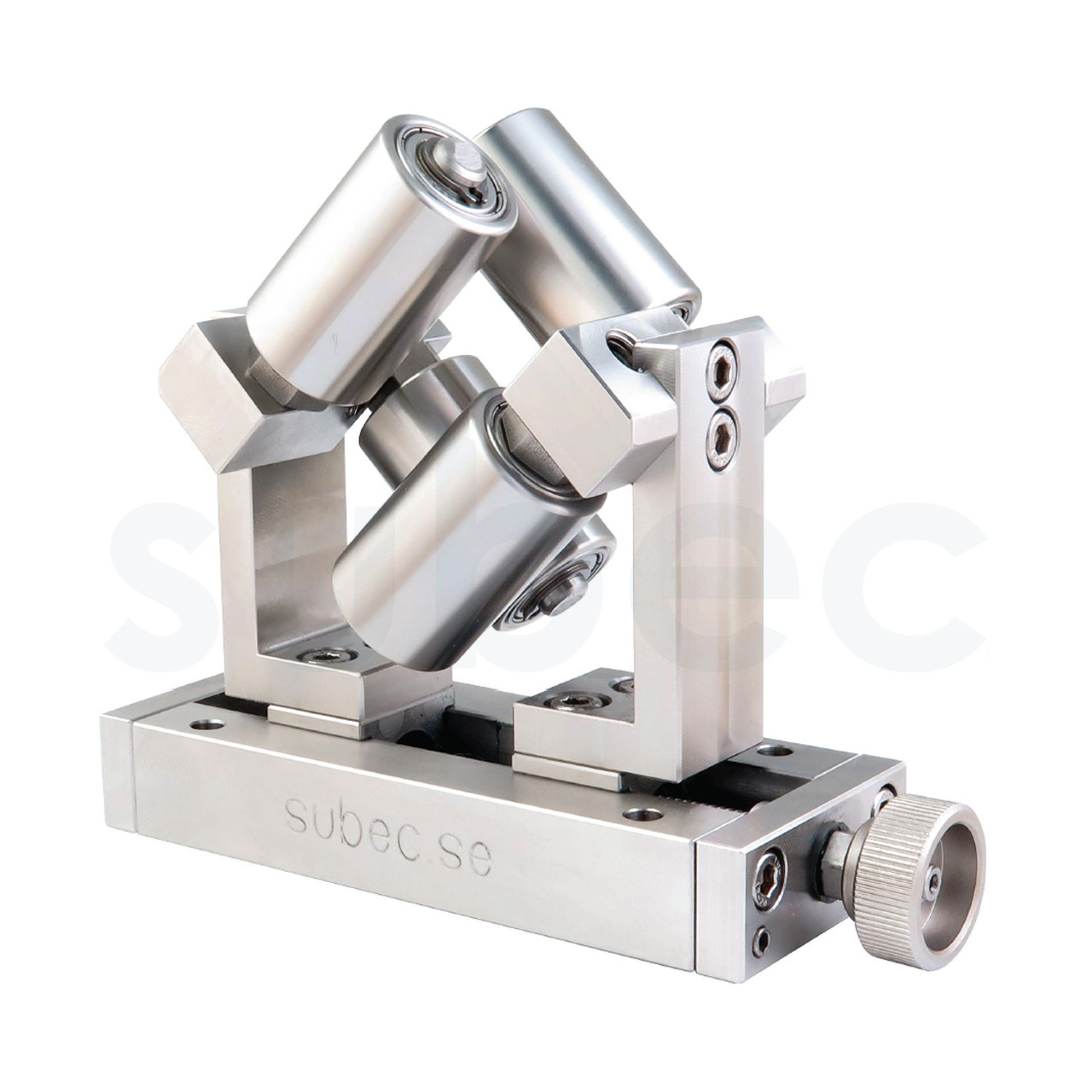

Roller Guides with rollers in 45° angle, Stainless

Roller Guides with rollers in 45° angle, Stainless

Drawing No: 3-400327-04

Description

These roller guides have rollers positioned at a 45° angle, maintaining a consistent centerline height across various product dimensions. Equipped with stainless rollers and blocks, but other materials such as polyurethane or plastic are also available. They are available in different block sizes, allowing for varying opening windows.

Dimensions

  • Hide Filters
Article. No Product Range - MIN Product Range - MAX Diameter, Roller Vert. Length, Roller Vert. Diameter, Roller Horz. Length, Roller Horz. Material, Roller/Sheave Suffix
10924 1.00 mm 40.00 mm 25.00 mm 40.00 mm 25.00 mm 40.00 mm SS (AISI 304) All parts in 304/A2 SS

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 10924
Product Range - MIN 1.00 mm
Product Range - MAX 40.00 mm
Diameter, Roller Vert. 25.00 mm
Length, Roller Vert. 40.00 mm
Diameter, Roller Horz. 25.00 mm
Length, Roller Horz. 40.00 mm
!
