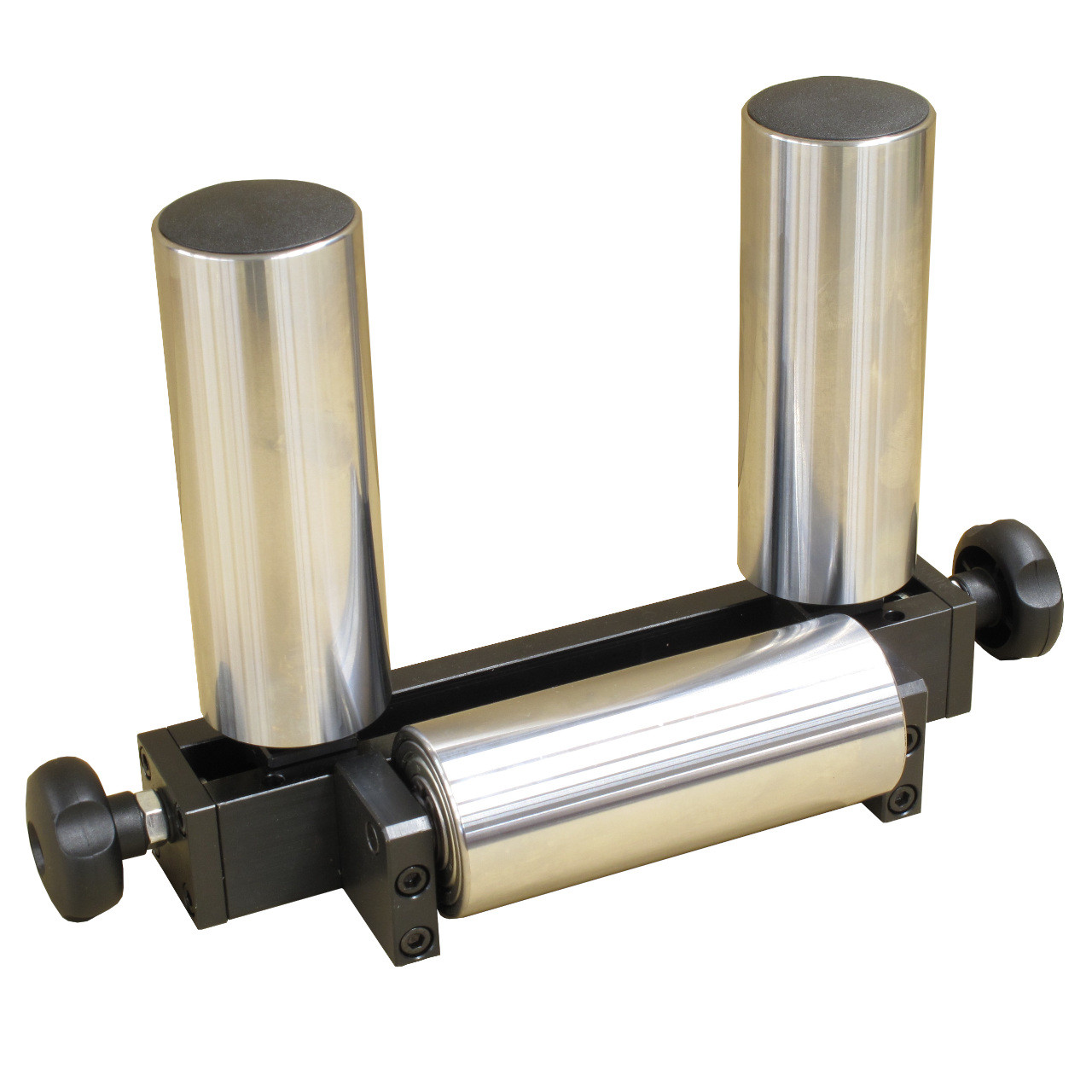

Roller Guide, Two-Side Indv. Adj. Vert. Rollers

Roller Guide, Two-Side Indv. Adj. Vert. Rollers

Drawing No: 3-300078-00

Description

These Roller Guides feature one horizontal roller and two vertical rollers. By turning the knobs individually, the vertical rollers move toward or away from the center. The length of the vertical rollers can vary. HRX rollers (hardened steel cylinders with a chrome layer) are standard, but other materials such as polyurethane or plastic are also available.

Dimensions

  • Hide Filters
Article. No Product Range - MIN Product Range - MAX Diameter, Roller Vert. Length, Roller Vert. Diameter, Roller Horz. Length, Roller Horz. Material, Roller/Sheave Suffix
5807A 0.00 mm 125.00 mm 40.00 mm 110.00 mm 40.00 mm 110.00 mm HRX Ind. Adj. Vert. Rollers
7297 0.00 mm 150.00 mm 60.00 mm 160.00 mm 60.00 mm 150.00 mm HRX _

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 5807A
Product Range - MIN 0.00 mm
Product Range - MAX 125.00 mm
Diameter, Roller Vert. 40.00 mm
Length, Roller Vert. 110.00 mm
Diameter, Roller Horz. 40.00 mm
Length, Roller Horz. 110.00 mm
Article. No 7297
Product Range - MIN 0.00 mm
Product Range - MAX 150.00 mm
Diameter, Roller Vert. 60.00 mm
Length, Roller Vert. 160.00 mm
Diameter, Roller Horz. 60.00 mm
Length, Roller Horz. 150.00 mm
!
