Roller Guide, Spring Loaded

Roller Guide, Spring Loaded

Drawing No: 3-400440-00

Description

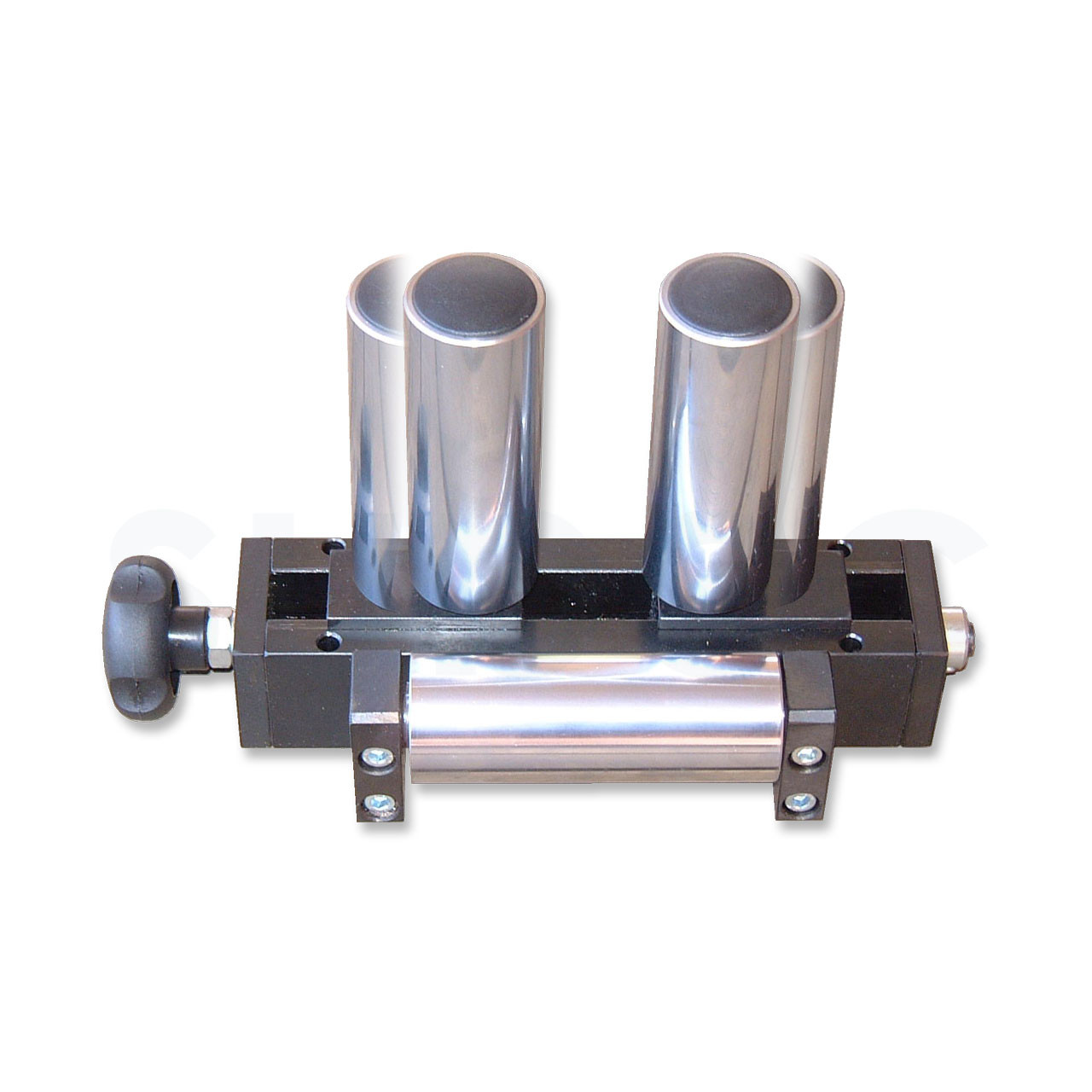

These Roller Guides feature one horizontal roller and two vertical rollers. The system is spring-loaded, meaning each vertical roller is mounted on an individual mechanical mechanism that allows it to deflect laterally by up to 10 mm. This enables the guide to accommodate lumps or splices passing through the pre-set opening. A typical spring force is 44 N. Vertical rollers are typically available in lengths of 60, 90, or 120 mm. HRX rollers (hardened steel cylinders with a chrome layer) are standard, but other materials such as polyurethane or plastic are also available.

Dimensions

  • Hide Filters
Article. No Product Range - MIN Product Range - MAX Diameter, Roller Vert. Length, Roller Vert. Diameter, Roller Horz. Length, Roller Horz. Material, Roller/Sheave Suffix
12223 0.00 mm 50.00 mm 40.00 mm 60.00 mm 40.00 mm 110.00 mm HRX Spring force: 18-54N
5831 0.00 mm 130.00 mm 40.00 mm 90.00 mm 40.00 mm 150.00 mm HRX Spring force: 18-54N
5772 0.00 mm 100.00 mm 40.00 mm 60.00 mm 40.00 mm 150.00 mm HRX 50N
5771 0.00 mm 60.00 mm 30.00 mm 60.00 mm 40.00 mm 110.00 mm HRX spring loaded
5031 0.00 mm 50.00 mm 40.00 mm 110.00 mm 40.00 mm 110.00 mm HRX Spring force: 18-54N
3623 0.00 mm 90.00 mm 60.00 mm 160.00 mm 60.00 mm 150.00 mm HRX Spring force: 18-54N
1079 0.00 mm 50.00 mm 40.00 mm 90.00 mm 40.00 mm 110.00 mm HRX Spring force: 18-54N

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 12223
Product Range - MIN 0.00 mm
Product Range - MAX 50.00 mm
Diameter, Roller Vert. 40.00 mm
Length, Roller Vert. 60.00 mm
Diameter, Roller Horz. 40.00 mm
Length, Roller Horz. 110.00 mm
