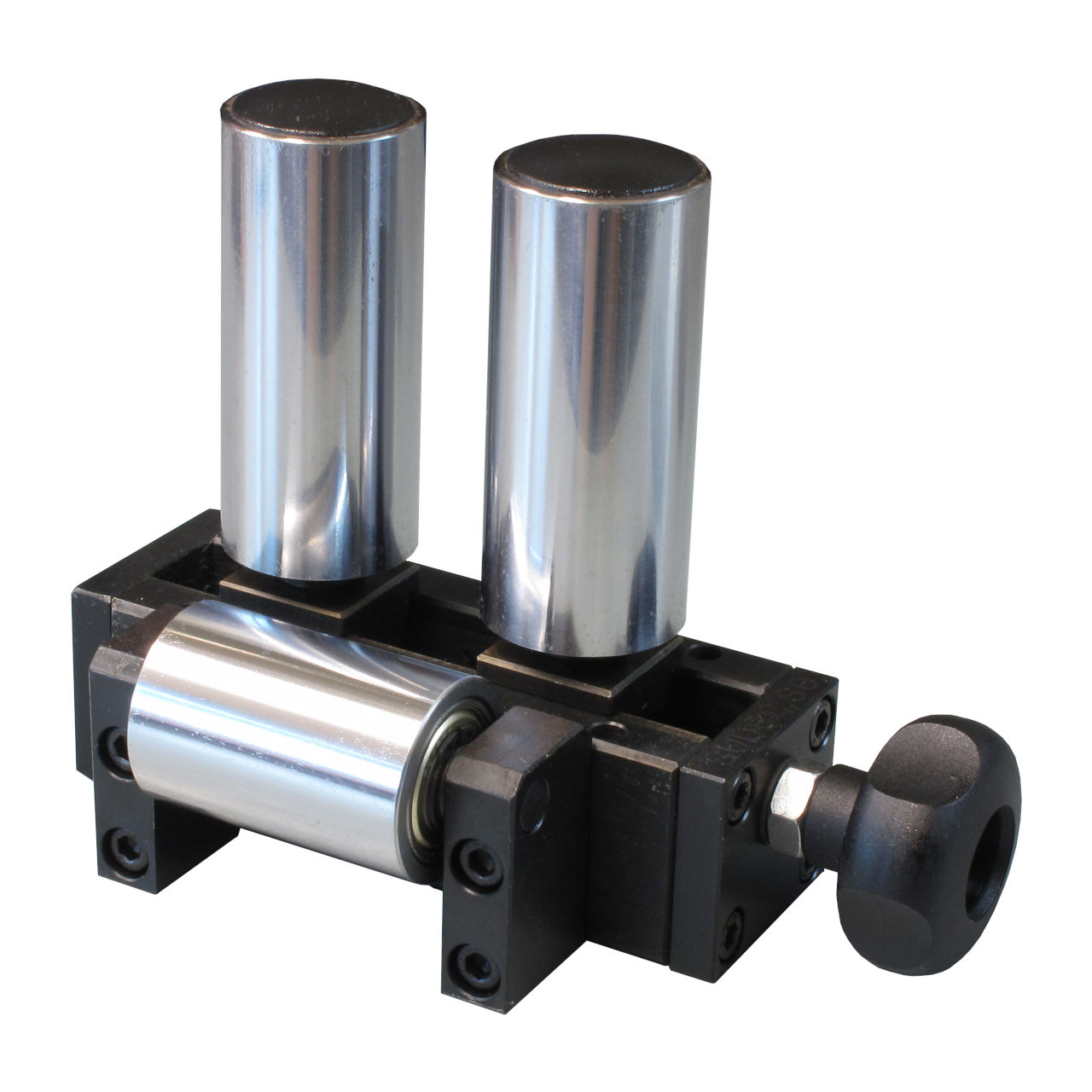

Roller Guide, Opening 60mm (2,36")

Roller Guide, Opening 60mm (2,36")

Drawing No: 3-400080-00

Description

These Roller Guides have one horizontal roller and two vertical rollers. When the knob is turned the vertical rollers close down to zero opening. Length of vertical rollers, typically 60, 90 or 90mm long. HRX Rollers (hardened steel cylinder with a chrome layer) are standard, but other materials like Polyurethan or plastic are also available.

Dimensions

  • Hide Filters
Article. No Product Range - MIN Product Range - MAX Diameter, Roller Vert. Length, Roller Vert. Diameter, Roller Horz. Length, Roller Horz. Material, Roller/Sheave Suffix
21381 0.00 mm 60.00 mm 40.00 mm 90.00 mm 40.00 mm 60.00 mm HRX Handwheel
0052 0.00 mm 60.00 mm 40.00 mm 90.00 mm 40.00 mm 60.00 mm HRX Adjustment Knob

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 21381
Product Range - MIN 0.00 mm
Product Range - MAX 60.00 mm
Diameter, Roller Vert. 40.00 mm
Length, Roller Vert. 90.00 mm
Diameter, Roller Horz. 40.00 mm
Length, Roller Horz. 60.00 mm
Article. No 0052
Product Range - MIN 0.00 mm
Product Range - MAX 60.00 mm
Diameter, Roller Vert. 40.00 mm
Length, Roller Vert. 90.00 mm
Diameter, Roller Horz. 40.00 mm
Length, Roller Horz. 60.00 mm
!
