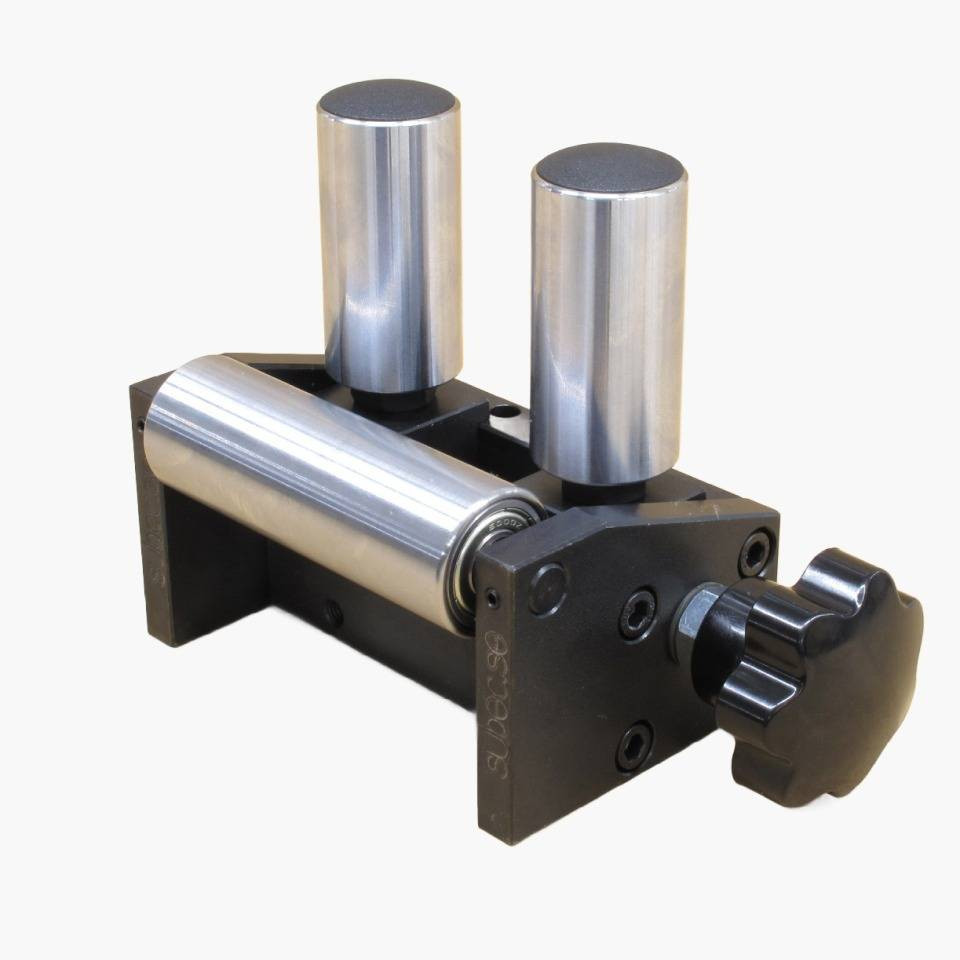

Roller Guide, Opening 30mm (1.18’’)

Roller Guide, Opening 30mm (1.18’’)

Drawing No: 3-400282-02

Description

These Roller Guides have one horizontal roller and two vertical rollers. When the knob is turned the vertical rollers D30mm close down to zero opening. Length of vertical rollers, typically 60, 90 or 90mm long. HRX Rollers (hardened steel cylinder with a chrome layer) are standard, but other materials like Polyurethan or plastic are also available.

Dimensions

  • Hide Filters
Article. No Product Range - MIN Product Range - MAX Diameter, Roller Vert. Length, Roller Vert. Diameter, Roller Horz. Length, Roller Horz. Material, Roller/Sheave Suffix
6019 1.00 mm 30.00 mm 30.00 mm 60.00 mm 30.00 mm 60.00 mm HRX n/a
5943 1.00 mm 30.00 mm 30.00 mm 60.00 mm 30.00 mm 90.00 mm HRX n/a
1298 0.00 mm 30.00 mm 30.00 mm 90.00 mm 30.00 mm 90.00 mm HRX n/a
1297 0.00 mm 30.00 mm 30.00 mm 90.00 mm 30.00 mm 90.00 mm HRX n/a

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 6019
Product Range - MIN 1.00 mm
Product Range - MAX 30.00 mm
Diameter, Roller Vert. 30.00 mm
Length, Roller Vert. 60.00 mm
Diameter, Roller Horz. 30.00 mm
Length, Roller Horz. 60.00 mm
Article. No 5943
Product Range - MIN 1.00 mm
Product Range - MAX 30.00 mm
Diameter, Roller Vert. 30.00 mm
Length, Roller Vert. 60.00 mm
Diameter, Roller Horz. 30.00 mm
Length, Roller Horz. 90.00 mm
Article. No 1298
Product Range - MIN 0.00 mm
Product Range - MAX 30.00 mm
Diameter, Roller Vert. 30.00 mm
Length, Roller Vert. 90.00 mm
Diameter, Roller Horz. 30.00 mm
Length, Roller Horz. 90.00 mm
Article. No 1297
Product Range - MIN 0.00 mm
Product Range - MAX 30.00 mm
Diameter, Roller Vert. 30.00 mm
Length, Roller Vert. 90.00 mm
Diameter, Roller Horz. 30.00 mm
Length, Roller Horz. 90.00 mm
!
