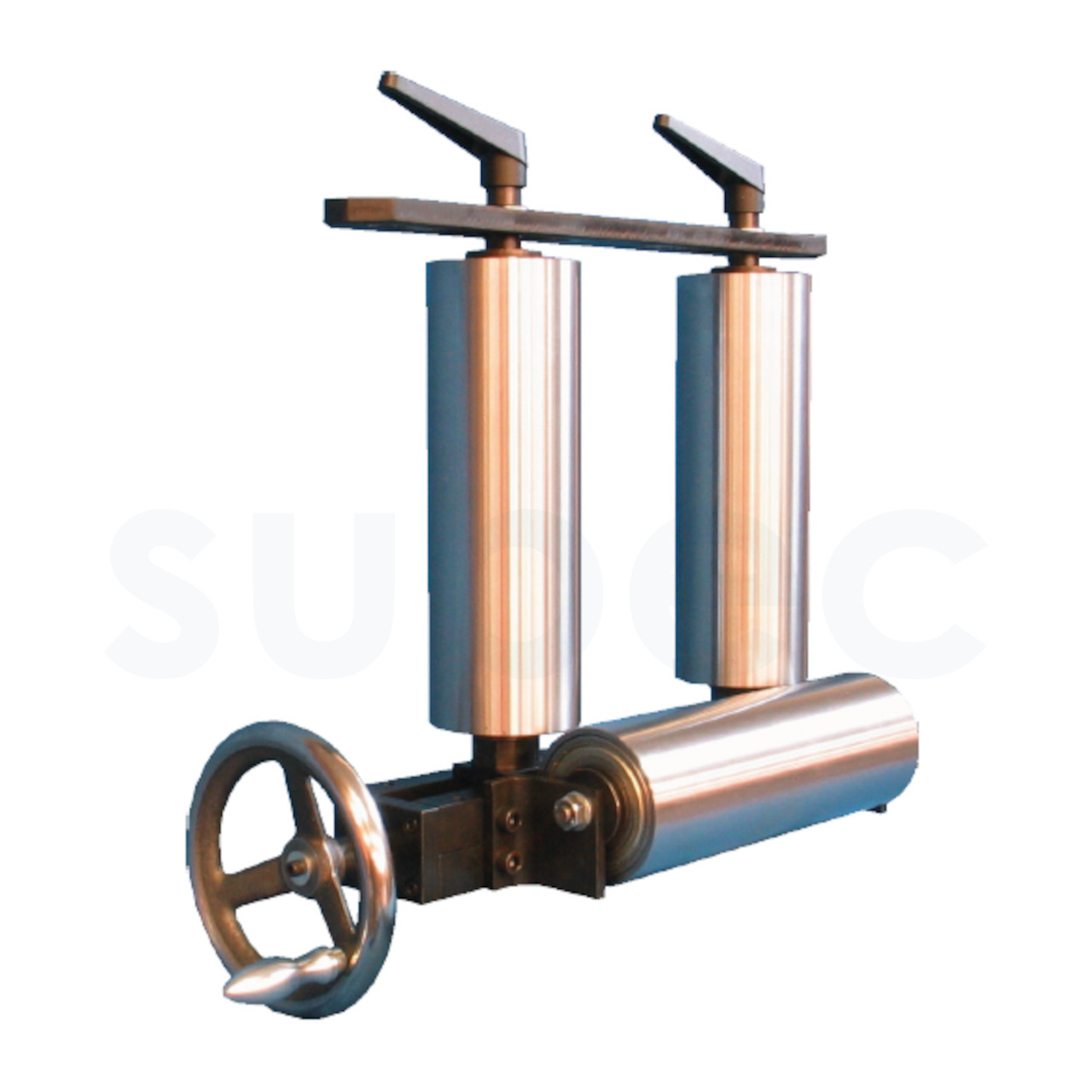

Roller Guide, Large version, with handwheel

Roller Guide, Large version, with handwheel

Drawing No: 3-300438-00

Description

These Roller Guides have one or two horizontal rollers and two vertical rollers. When the handwheel is turned, the vertical rollers close down to zero opening. Units with long vertical rollers have a reinforcement bracket. HRX Rollers (hardened steel cylinder with a chrome layer) are standard, but other materials like polyurethane or plastic are also available.

Dimensions

  • Hide Filters
Article. No Product Range - MIN Product Range - MAX Diameter, Roller Vert. Length, Roller Vert. Diameter, Roller Horz. Length, Roller Horz. Material, Roller/Sheave Suffix
11598 0.00 mm 180.00 mm 100.00 mm 200.00 mm 100.00 mm 200.00 mm PU 80 Shore A n/a
21138 0.00 mm 180.00 mm 100.00 mm 200.00 mm 100.00 mm 200.00 mm PU 90 Shore A n/a
20693 0.00 mm 290.00 mm 100.00 mm 300.00 mm 100.00 mm 300.00 mm PU 80 Shore A Handwheel Ø250
15114 0.00 mm 180.00 mm 100.00 mm 200.00 mm 100.00 mm 200.00 mm POM n/a
7720A 0.00 mm 250.00 mm 100.00 mm 300.00 mm 100.00 mm 300.00 mm HRX n/a
12753 0.00 mm 160.00 mm 60.00 mm 160.00 mm 60.00 mm 200.00 mm HRX -
5041 0.00 mm 175.00 mm 100.00 mm 200.00 mm 100.00 mm 200.00 mm PA6 n/a
0061 0.00 mm 175.00 mm 100.00 mm 200.00 mm 100.00 mm 200.00 mm HRX n/a

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 11598
Product Range - MIN 0.00 mm
Product Range - MAX 180.00 mm
Diameter, Roller Vert. 100.00 mm
Length, Roller Vert. 200.00 mm
Diameter, Roller Horz. 100.00 mm
Length, Roller Horz. 200.00 mm
Article. No 21138
Product Range - MIN 0.00 mm
Product Range - MAX 180.00 mm
Diameter, Roller Vert. 100.00 mm
Length, Roller Vert. 200.00 mm
Diameter, Roller Horz. 100.00 mm
Length, Roller Horz. 200.00 mm
Article. No 20693
Product Range - MIN 0.00 mm
Product Range - MAX 290.00 mm
Diameter, Roller Vert. 100.00 mm
Length, Roller Vert. 300.00 mm
Diameter, Roller Horz. 100.00 mm
Length, Roller Horz. 300.00 mm
Article. No 15114
Product Range - MIN 0.00 mm
Product Range - MAX 180.00 mm
Diameter, Roller Vert. 100.00 mm
Length, Roller Vert. 200.00 mm
Diameter, Roller Horz. 100.00 mm
Length, Roller Horz. 200.00 mm
Article. No 7720A
Product Range - MIN 0.00 mm
Product Range - MAX 250.00 mm
Diameter, Roller Vert. 100.00 mm
Length, Roller Vert. 300.00 mm
Diameter, Roller Horz. 100.00 mm
Length, Roller Horz. 300.00 mm
Article. No 12753
Product Range - MIN 0.00 mm
Product Range - MAX 160.00 mm
Diameter, Roller Vert. 60.00 mm
Length, Roller Vert. 160.00 mm
Diameter, Roller Horz. 60.00 mm
Length, Roller Horz. 200.00 mm
Article. No 5041
Product Range - MIN 0.00 mm
Product Range - MAX 175.00 mm
Diameter, Roller Vert. 100.00 mm
Length, Roller Vert. 200.00 mm
Diameter, Roller Horz. 100.00 mm
Length, Roller Horz. 200.00 mm
Article. No 0061
Product Range - MIN 0.00 mm
Product Range - MAX 175.00 mm
Diameter, Roller Vert. 100.00 mm
Length, Roller Vert. 200.00 mm
Diameter, Roller Horz. 100.00 mm
Length, Roller Horz. 200.00 mm
!
