Roller Guide, Adjustable, Block profile 50x44mm

Roller Guide, Adjustable, Block profile 50x44mm

Drawing No: 3-300077-00

Description

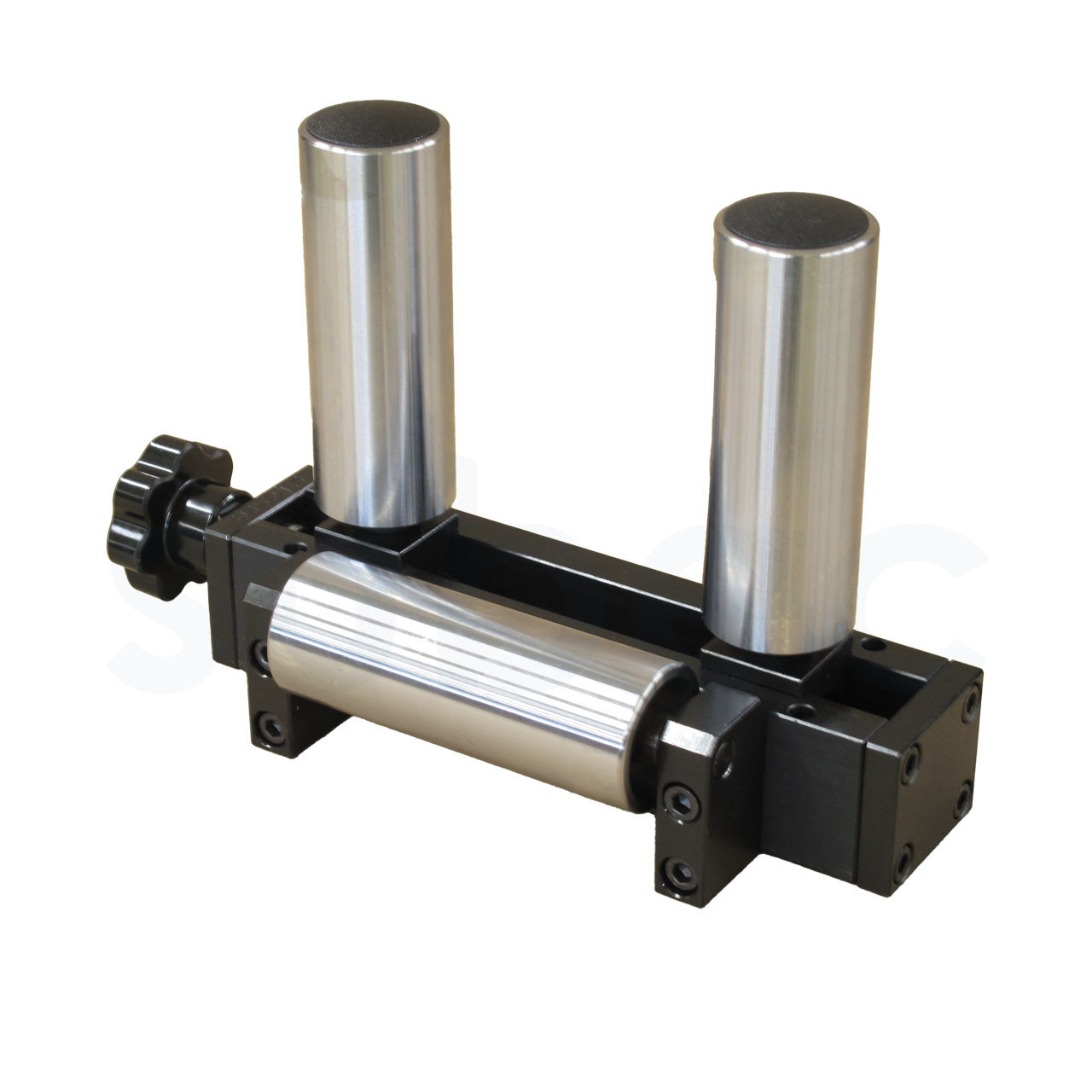

This series of guides is built on our standard 50 × 44 mm (W × H) block profile. They are available in various block lengths and configurations with one or two knurled hand wheels. Vertical rollers can be adjusted in or out by turning a single hand wheel or set individually using two hand wheels. Standard rollers are made from HRX material (hardened steel cylinders with a hard chromium coating), but plastic rollers are also available. The body features a black-oxidized surface treatment, or the body and rollers can be supplied entirely in stainless steel (AISI 304) or an acid-resistant grade for more demanding environments.

Dimensions

  • Hide Filters
Article. No Product Range - MIN Product Range - MAX Diameter, Roller Vert. Length, Roller Vert. Diameter, Roller Horz. Length, Roller Horz. Material, Roller/Sheave Suffix
21380 0.00 mm 130.00 mm 40.00 mm 110.00 mm 40.00 mm 110.00 mm HRX Handwheel
20834 0.00 mm 150.00 mm 60.00 mm 160.00 mm 60.00 mm 160.00 mm HRX Fold-Down
20517 0.00 mm 65.00 mm 50.00 mm 90.00 mm n/a mm n/a mm PU 90 Shore A Unidirectional
15204 0.00 mm 130.00 mm 40.00 mm 150.00 mm 40.00 mm 110.00 mm Stainless n/a
15179 0.00 mm 130.00 mm 40.00 mm 110.00 mm 40.00 mm 110.00 mm Stainless n/a
0154A 0.00 mm 125.00 mm 60.00 mm 160.00 mm 60.00 mm 150.00 mm HRX n/a
11337 0.00 mm 150.00 mm 60.00 mm 160.00 mm 60.00 mm 160.00 mm HRX Fold-Down
1180 0.00 mm 130.00 mm 40.00 mm 110.00 mm 40.00 mm 110.00 mm HRX Adjustment Knob
0154 0.00 mm 170.00 mm 60.00 mm 160.00 mm 60.00 mm 150.00 mm HRX n/a

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 21380
Product Range - MIN 0.00 mm
Product Range - MAX 130.00 mm
Diameter, Roller Vert. 40.00 mm
Length, Roller Vert. 110.00 mm
Diameter, Roller Horz. 40.00 mm
Length, Roller Horz. 110.00 mm
Article. No 20834
Product Range - MIN 0.00 mm
Product Range - MAX 150.00 mm
Diameter, Roller Vert. 60.00 mm
Length, Roller Vert. 160.00 mm
Diameter, Roller Horz. 60.00 mm
Length, Roller Horz. 160.00 mm
Article. No 20517
Product Range - MIN 0.00 mm
Product Range - MAX 65.00 mm
Diameter, Roller Vert. 50.00 mm
Length, Roller Vert. 90.00 mm
Diameter, Roller Horz. n/a mm
Length, Roller Horz. n/a mm
Article. No 15204
Product Range - MIN 0.00 mm
Product Range - MAX 130.00 mm
Diameter, Roller Vert. 40.00 mm
Length, Roller Vert. 150.00 mm
Diameter, Roller Horz. 40.00 mm
Length, Roller Horz. 110.00 mm
Article. No 15179
Product Range - MIN 0.00 mm
Product Range - MAX 130.00 mm
Diameter, Roller Vert. 40.00 mm
Length, Roller Vert. 110.00 mm
Diameter, Roller Horz. 40.00 mm
Length, Roller Horz. 110.00 mm
Article. No 0154A
Product Range - MIN 0.00 mm
Product Range - MAX 125.00 mm
Diameter, Roller Vert. 60.00 mm
Length, Roller Vert. 160.00 mm
Diameter, Roller Horz. 60.00 mm
Length, Roller Horz. 150.00 mm
Article. No 11337
Product Range - MIN 0.00 mm
Product Range - MAX 150.00 mm
Diameter, Roller Vert. 60.00 mm
Length, Roller Vert. 160.00 mm
Diameter, Roller Horz. 60.00 mm
Length, Roller Horz. 160.00 mm
Article. No 1180
Product Range - MIN 0.00 mm
Product Range - MAX 130.00 mm
Diameter, Roller Vert. 40.00 mm
Length, Roller Vert. 110.00 mm
Diameter, Roller Horz. 40.00 mm
Length, Roller Horz. 110.00 mm
Article. No 0154
Product Range - MIN 0.00 mm
Product Range - MAX 170.00 mm
Diameter, Roller Vert. 60.00 mm
Length, Roller Vert. 160.00 mm
Diameter, Roller Horz. 60.00 mm
Length, Roller Horz. 150.00 mm
!
