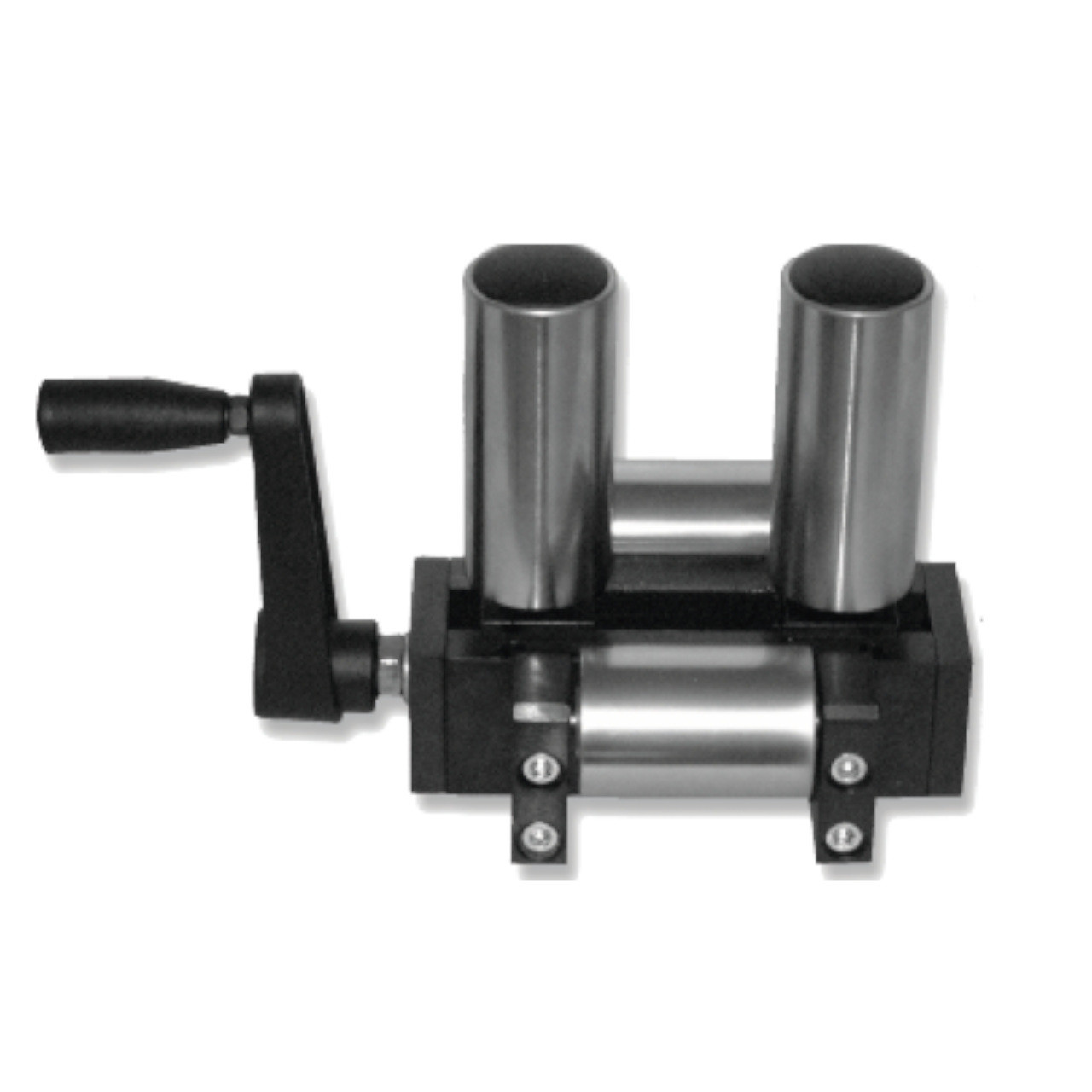

Roller Guide, 2-Horz. Rollers

Roller Guide, 2-Horz. Rollers

Drawing No: 3-400277-00

Description

These Roller Guides have two horizontal roller and two vertical rollers. When the knob is turned the vertical rollers close down to zero opening. HRX Rollers (hardened steel cylinder with a chrome layer) are standard, but other materials like Polyurethan or plastic are also available.

Dimensions

  • Hide Filters
Article. No Product Range - MIN Product Range - MAX Diameter, Roller Vert. Length, Roller Vert. Diameter, Roller Horz. Length, Roller Horz. Material, Roller/Sheave Suffix
1480 0.00 mm 60.00 mm 40.00 mm 90.00 mm 40.00 mm 60.00 mm HRX n/a

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 1480
Product Range - MIN 0.00 mm
Product Range - MAX 60.00 mm
Diameter, Roller Vert. 40.00 mm
Length, Roller Vert. 90.00 mm
Diameter, Roller Horz. 40.00 mm
Length, Roller Horz. 60.00 mm
!
