Mini Roller Guide

Mini Roller Guide

Drawing No: 3-400370-01

Description

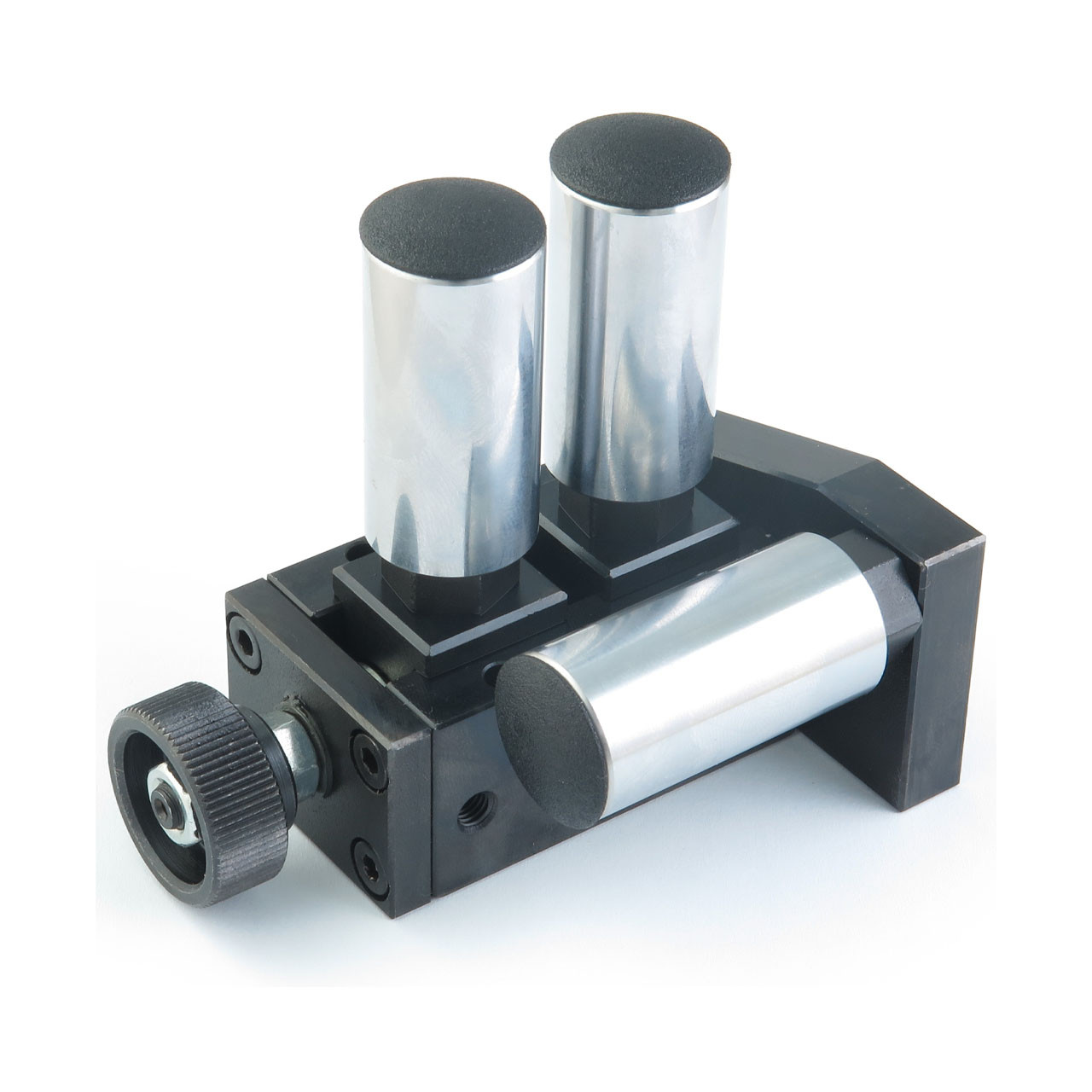

These Roller Guides feature two vertical rollers and either one horizontal roller or none. When the knob is turned the vertical rollers D20mm close down to zero opening. HRX Rollers (hardened steel cylinder with a chrome layer) are standard, but other materials like Polyurethan or plastic are also available.

Dimensions

  • Hide Filters
Article. No Product Range - MIN Product Range - MAX Diameter, Roller Vert. Length, Roller Vert. Diameter, Roller Horz. Length, Roller Horz. Material, Roller/Sheave Suffix
1503A 0.00 mm 14.00 mm 20.00 mm 40.00 mm 20.00 mm 40.00 mm HRX n/a
1502A 0.00 mm 14.00 mm 20.00 mm 40.00 mm 20.00 mm 40.00 mm HRX n/a
10589 0.00 mm 14.00 mm 20.00 mm 40.00 mm n/a mm n/a mm HRX n/a
6710 0.00 mm 10.00 mm 20.00 mm 40.00 mm n/a mm n/a mm Hardened Steel HRC 58 No Horiz. Roller

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 1503A
Product Range - MIN 0.00 mm
Product Range - MAX 14.00 mm
Diameter, Roller Vert. 20.00 mm
Length, Roller Vert. 40.00 mm
Diameter, Roller Horz. 20.00 mm
Length, Roller Horz. 40.00 mm
Article. No 1502A
Product Range - MIN 0.00 mm
Product Range - MAX 14.00 mm
Diameter, Roller Vert. 20.00 mm
Length, Roller Vert. 40.00 mm
Diameter, Roller Horz. 20.00 mm
Length, Roller Horz. 40.00 mm
Article. No 10589
Product Range - MIN 0.00 mm
Product Range - MAX 14.00 mm
Diameter, Roller Vert. 20.00 mm
Length, Roller Vert. 40.00 mm
Diameter, Roller Horz. n/a mm
Length, Roller Horz. n/a mm
Article. No 6710
Product Range - MIN 0.00 mm
Product Range - MAX 10.00 mm
Diameter, Roller Vert. 20.00 mm
Length, Roller Vert. 40.00 mm
Diameter, Roller Horz. n/a mm
Length, Roller Horz. n/a mm
!
