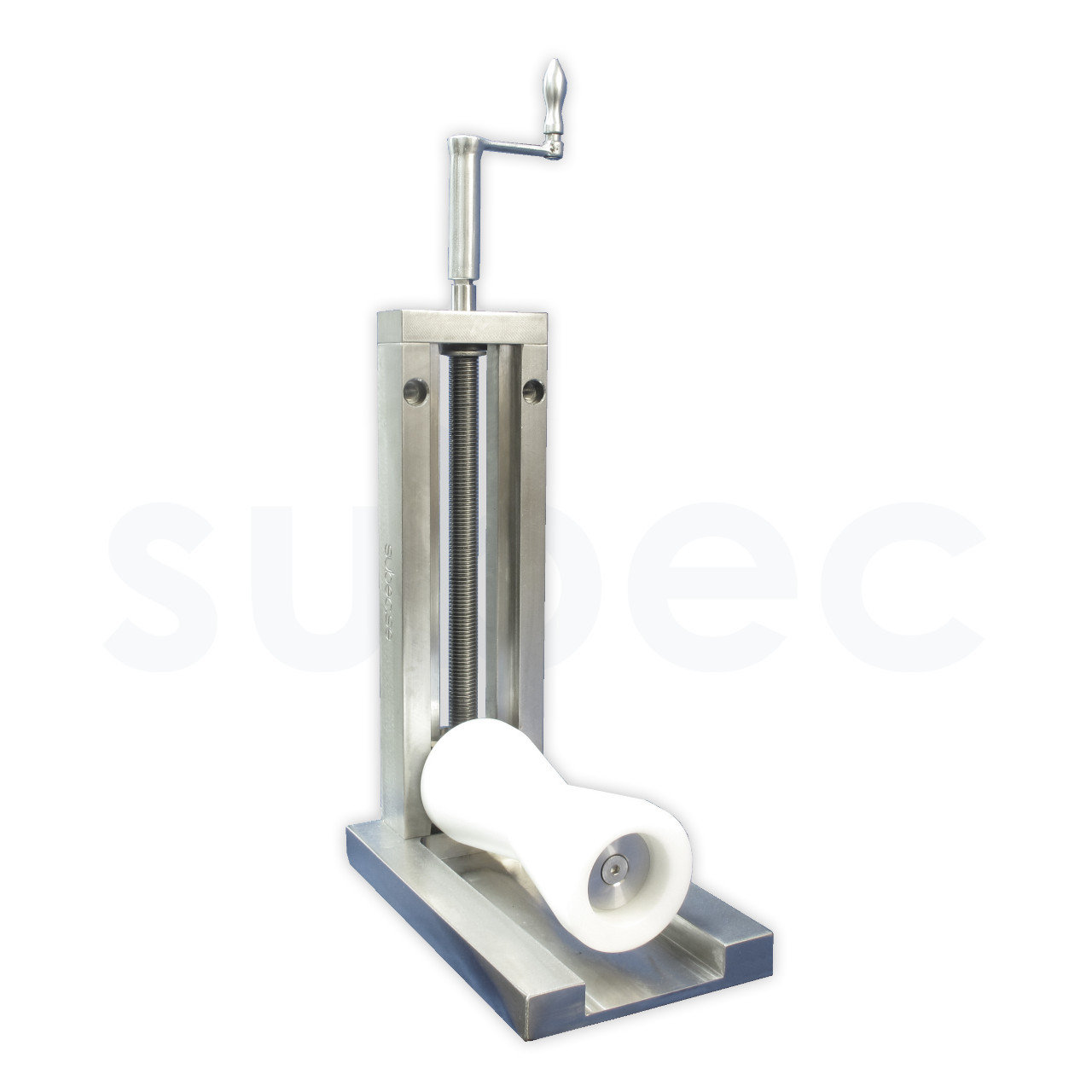

Guides for wet application - Cooling Trough

Guides for wet application - Cooling Trough

Drawing No: 3-400924-00

Description

Subec’s roller guides for wet applications are engineered to meet the stringent requirements of the wire and cable industry in moisture-intensive environments, such as cooling troughs. These guides are available in various configurations and can be customized according to specific application requirements. They are typically manufactured with a stainless steel body and rollers made from plastic materials such as POM.

Dimensions

  • Hide Filters
Article. No Product Range - MIN Product Range - MAX Diameter, Roller Vert. Length, Roller Vert. Diameter, Roller Horz. Length, Roller Horz. Material, Roller/Sheave Suffix
20803 0.80 mm 25.00 mm n/a mm n/a mm 65.00 mm 30.00 mm POM -
7224 0.00 mm 160.00 mm n/a mm n/a mm 80.00 mm 180.00 mm POM -

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 20803
Product Range - MIN 0.80 mm
Product Range - MAX 25.00 mm
Diameter, Roller Vert. n/a mm
Length, Roller Vert. n/a mm
Diameter, Roller Horz. 65.00 mm
Length, Roller Horz. 30.00 mm
Article. No 7224
Product Range - MIN 0.00 mm
Product Range - MAX 160.00 mm
Diameter, Roller Vert. n/a mm
Length, Roller Vert. n/a mm
Diameter, Roller Horz. 80.00 mm
Length, Roller Horz. 180.00 mm
