Roller Guides
-

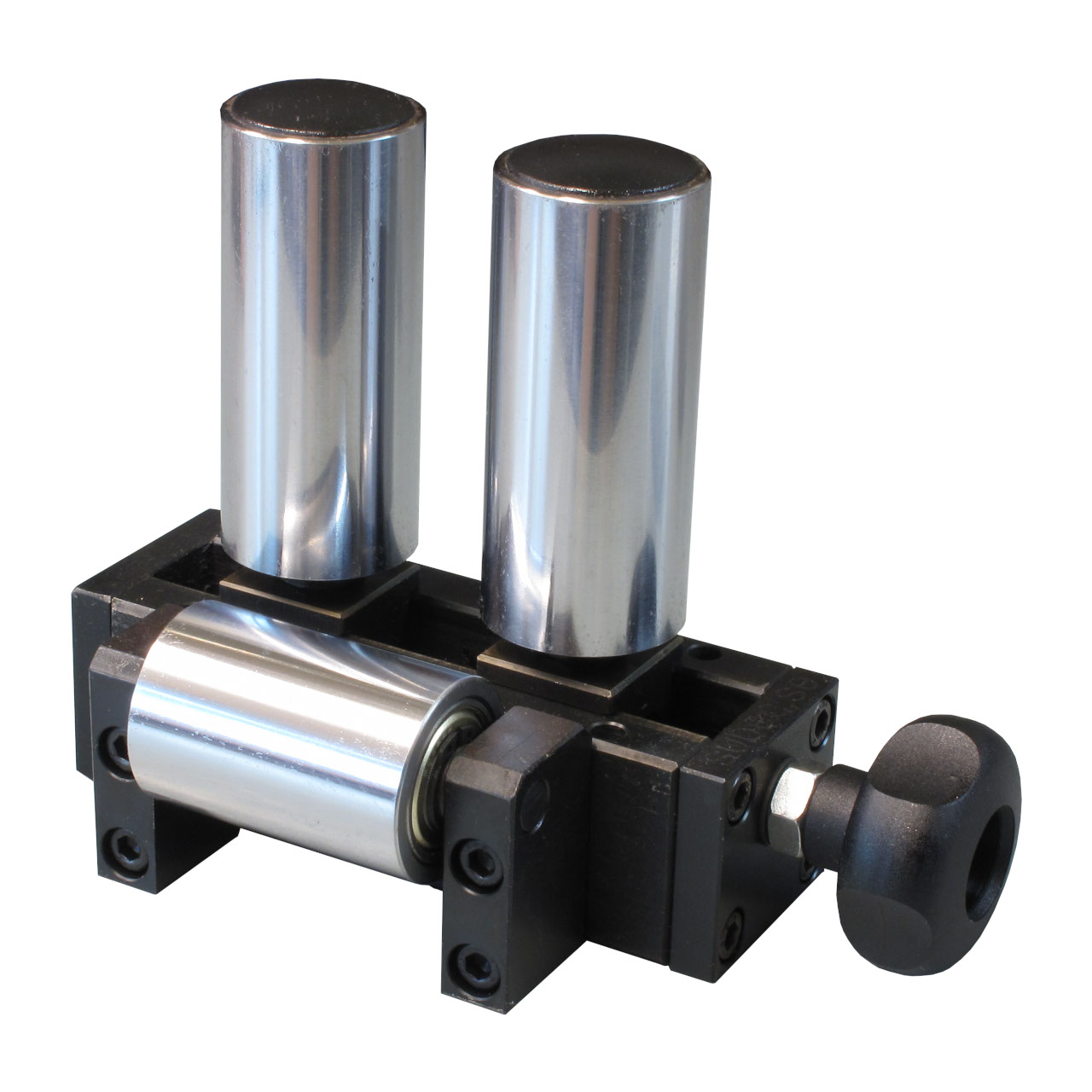

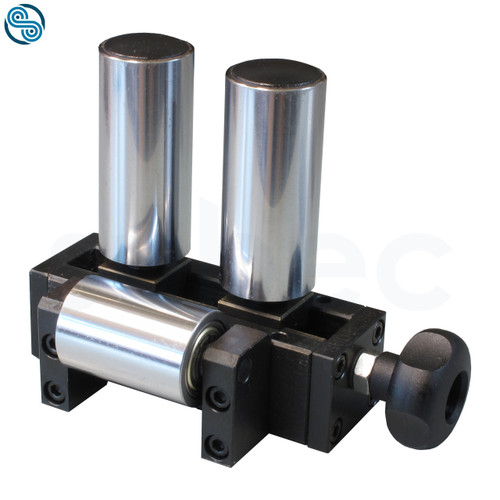

Mini Roller Guide Systems
Drawing No:These Roller Guides feature two vertical rollers and either one horizontal roller or none. When the knob is turned the vertical rollers D20mm close down to zero opening. HRX Rollers (hardened steel cylinder with a chrome layer) are standard, but other materials like Polyurethan or plastic are also available.
-

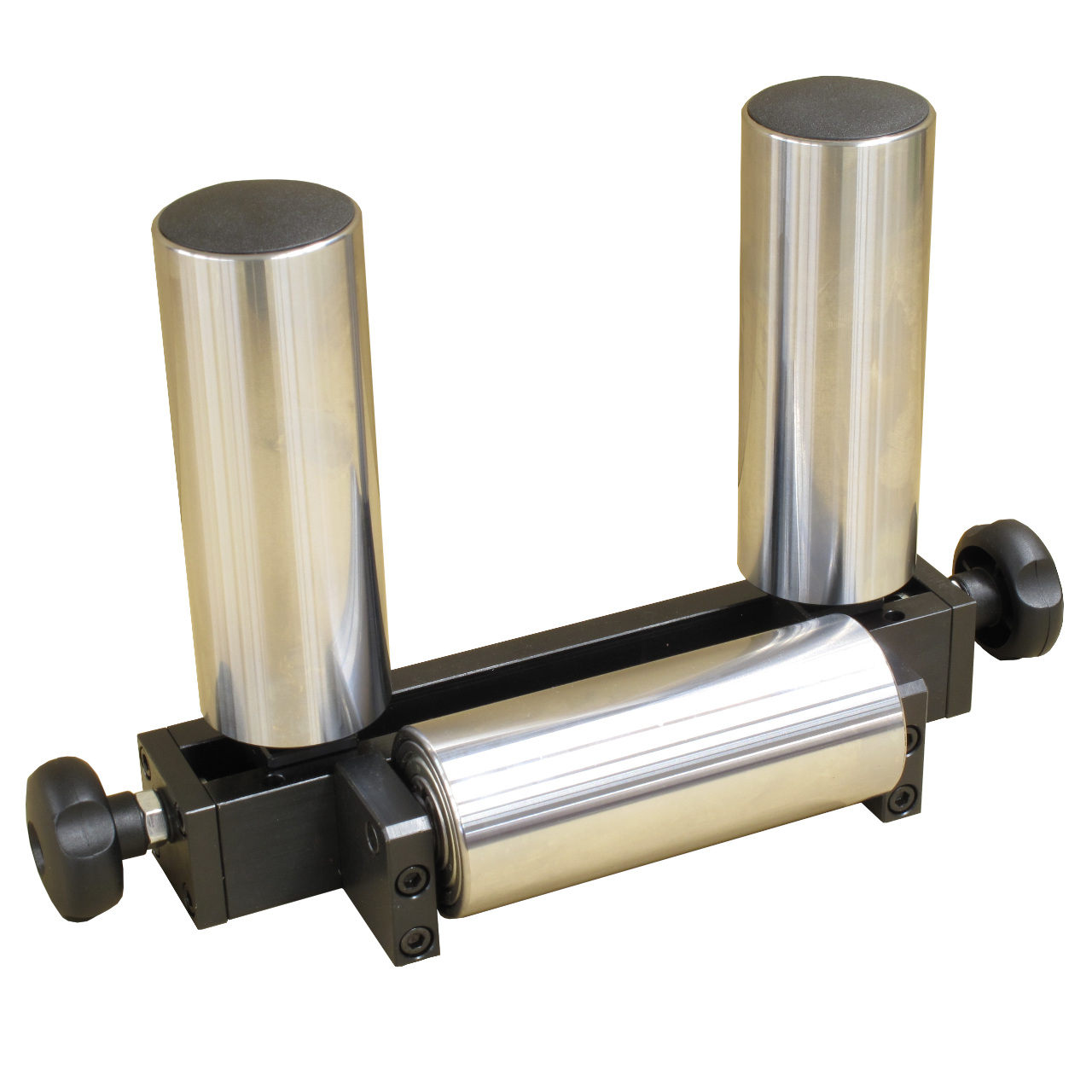

Roller Guide System with 2-Horz. Rollers
Drawing No:These Roller Guides have two horizontal roller and two vertical rollers. When the knob is turned the vertical rollers close down to zero opening. HRX Rollers (hardened steel cylinder with a chrome layer) are standard, but other materials like Polyurethan or plastic are also available.
-

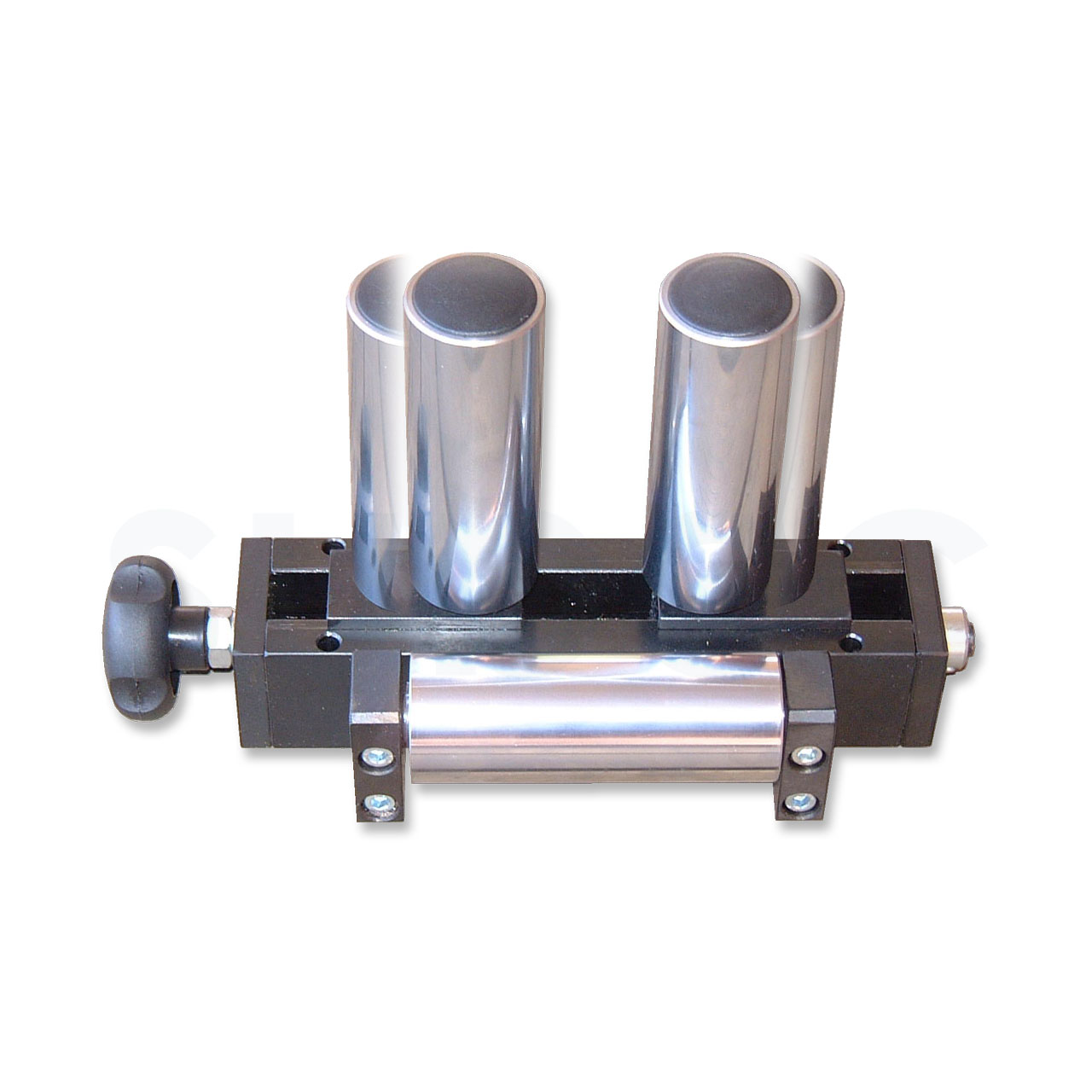

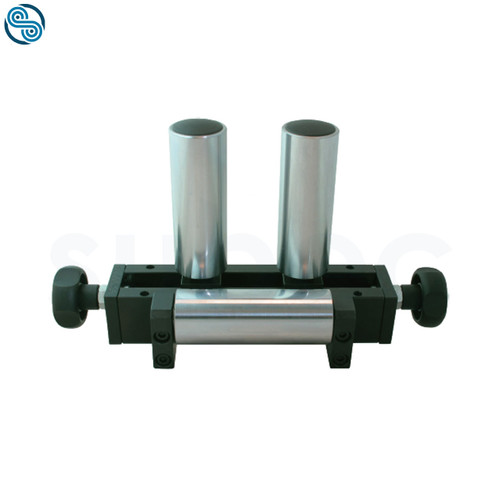

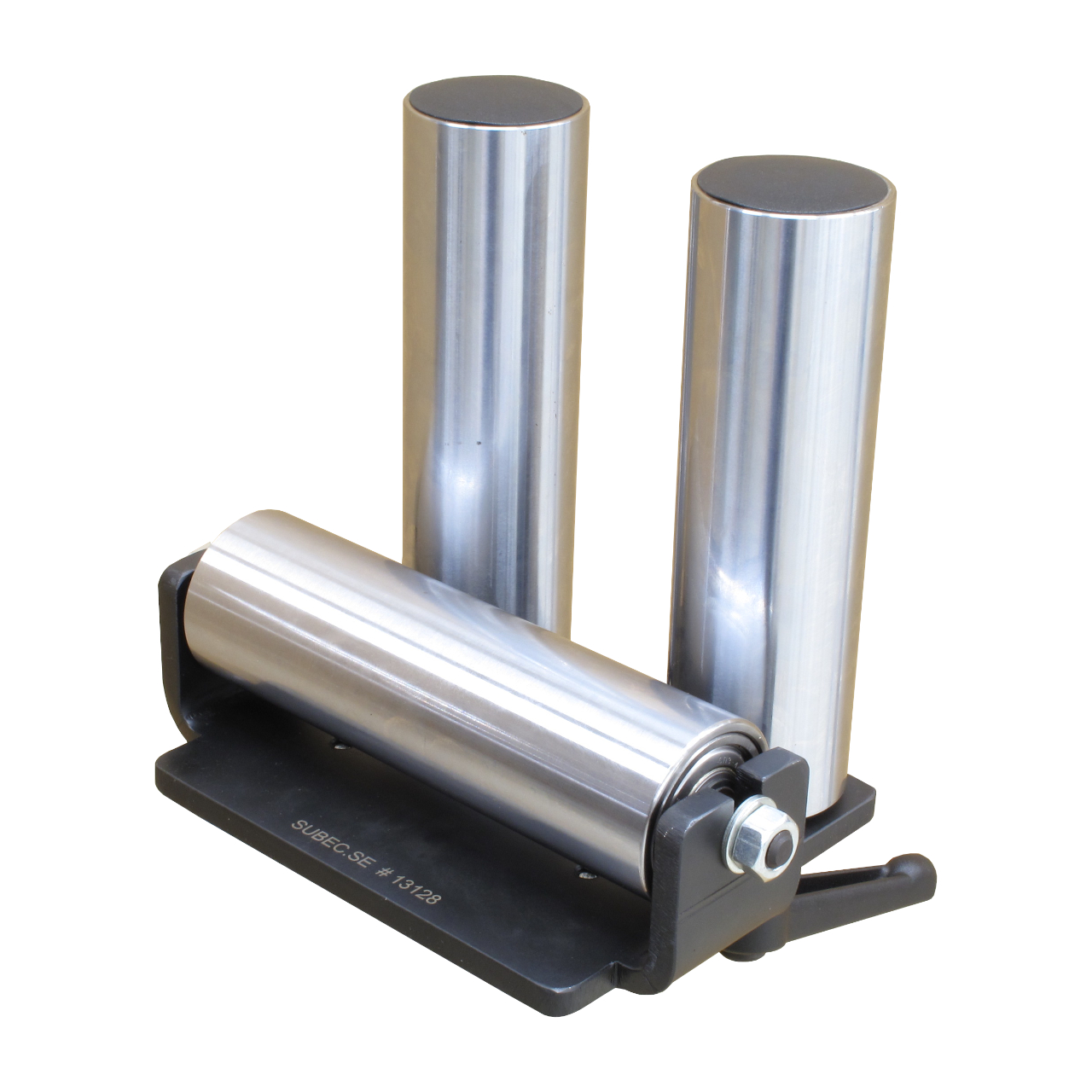

Roller Guides w/ individually adj. Vert. Rollers
Drawing No:These Roller Guides feature one horizontal roller and two vertical rollers. By turning the knobs individually, the vertical rollers move toward or away from the center. The length of the vertical rollers can vary. HRX rollers (hardened steel cylinders with a chrome layer) are standard, but other materials such as polyurethane or plastic are also available.
-

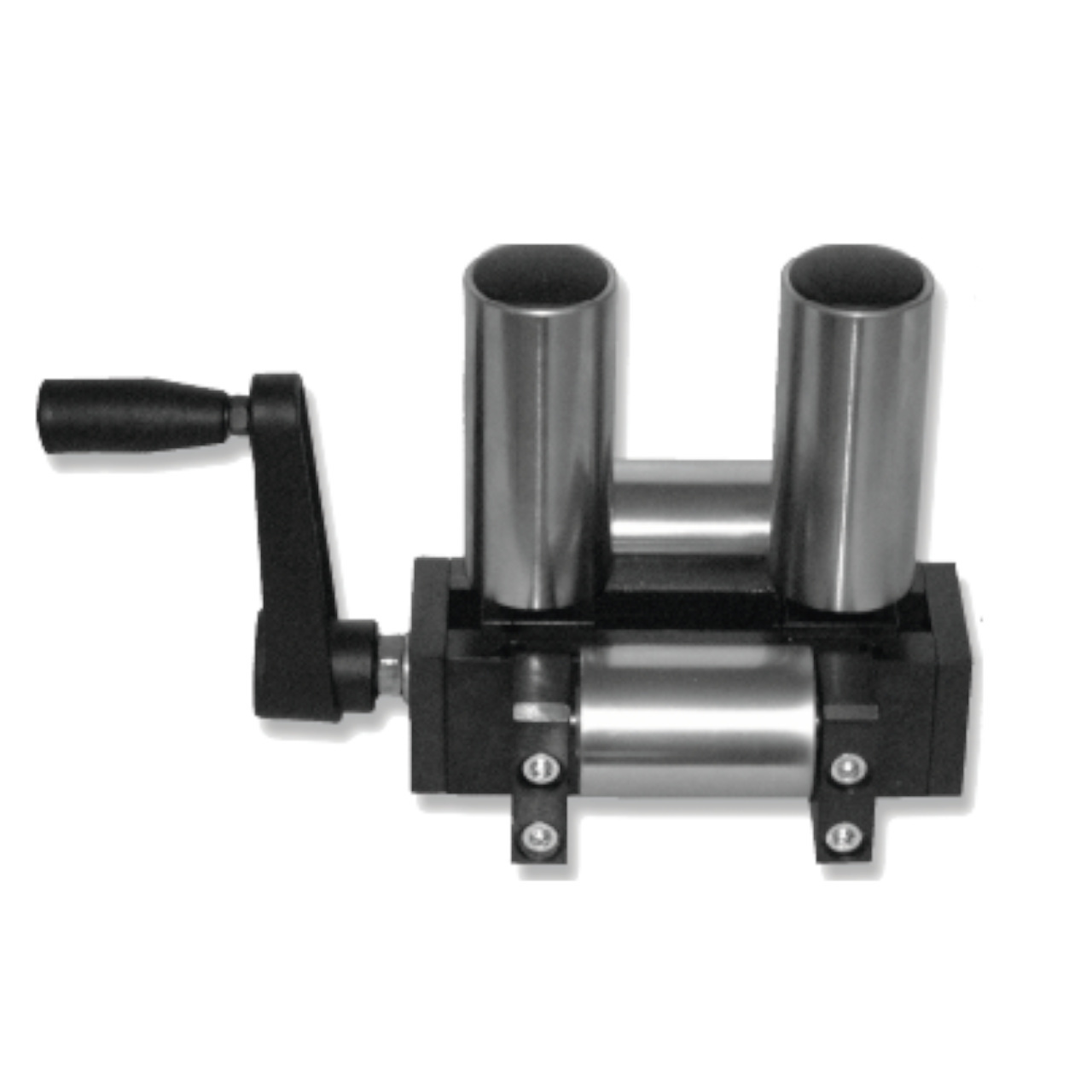

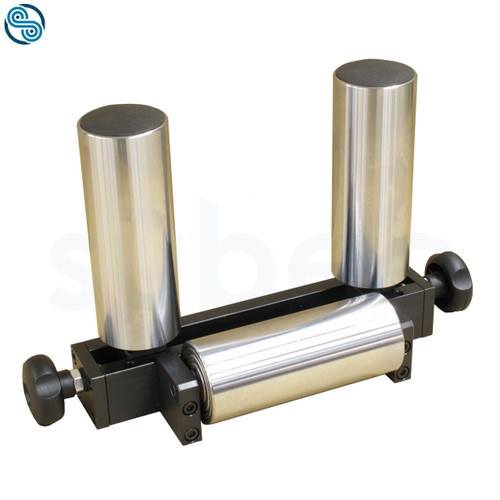

Roller System w/ sym adj rollers. Block L280mm
Drawing No:These roller guides feature one horizontal roller and two vertical rollers. When the knob or crank is turned, the vertical rollers close completely to a zero opening. The length of the vertical rollers can vary. HRX rollers (hardened steel cylinders with a chrome layer) are standard, but other materials such as polyurethane or plastic are also available.
-
-

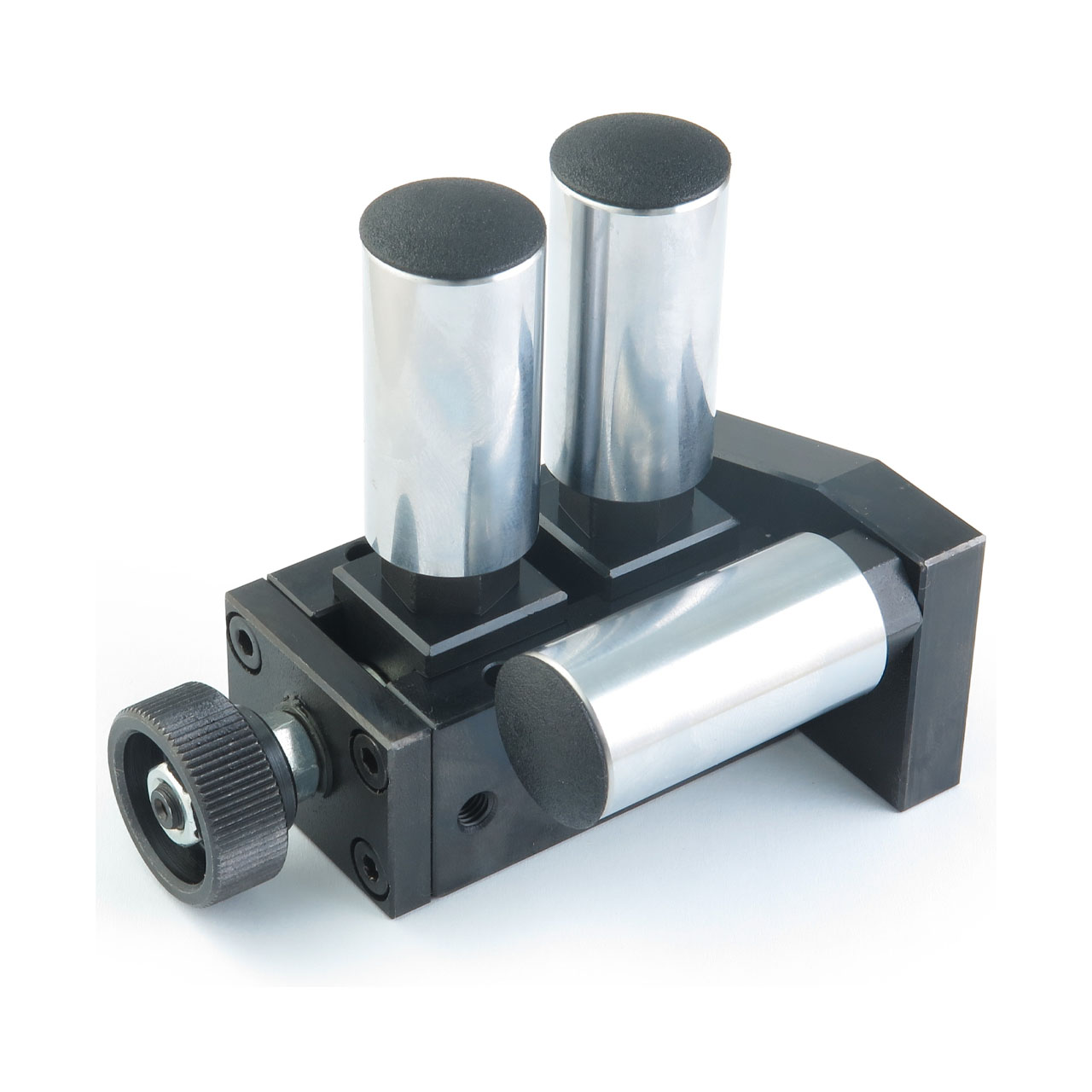

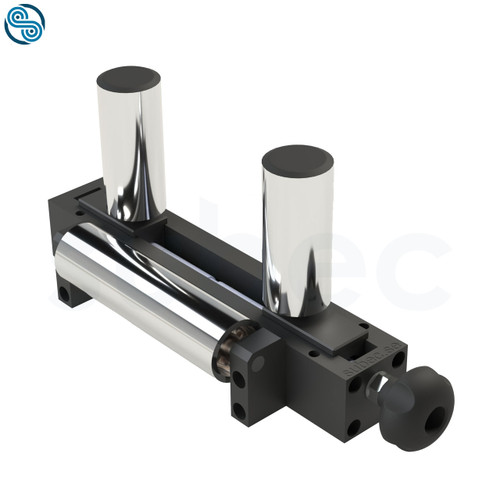

Roller System, Spring Loaded
Drawing No:These Roller Guides feature one horizontal roller and two vertical rollers. The system is spring-loaded, meaning each vertical roller is mounted on an individual mechanical mechanism that allows it to deflect laterally by up to 10 mm. This enables the guide to accommodate lumps or splices passing through the pre-set opening. A typical spring force is 44 N. Vertical rollers are typically available in lengths of 60, 90, or 120 mm. HRX rollers (hardened steel cylinders with a chrome layer) are standard, but other materials such as polyurethane or plastic are also available.
-

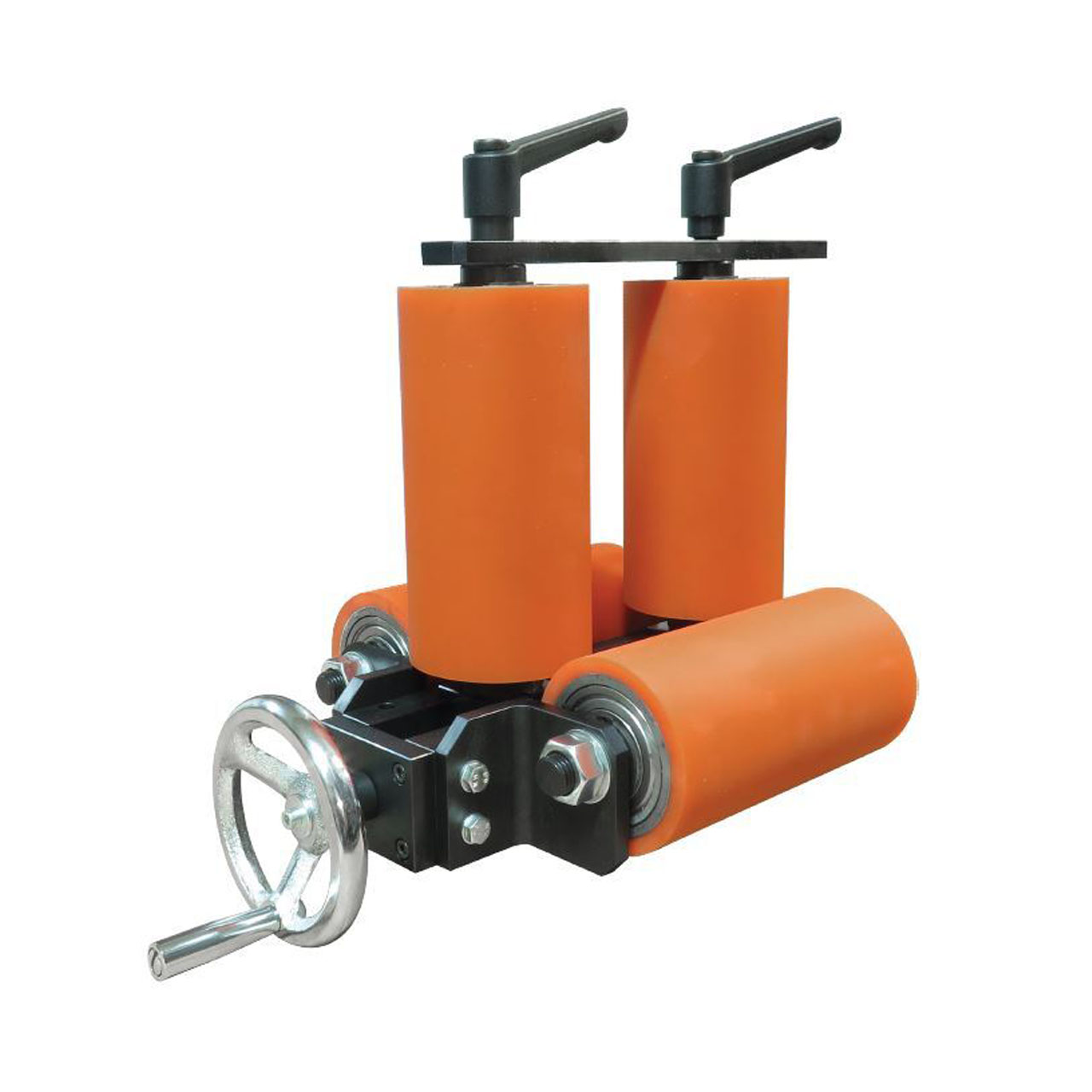

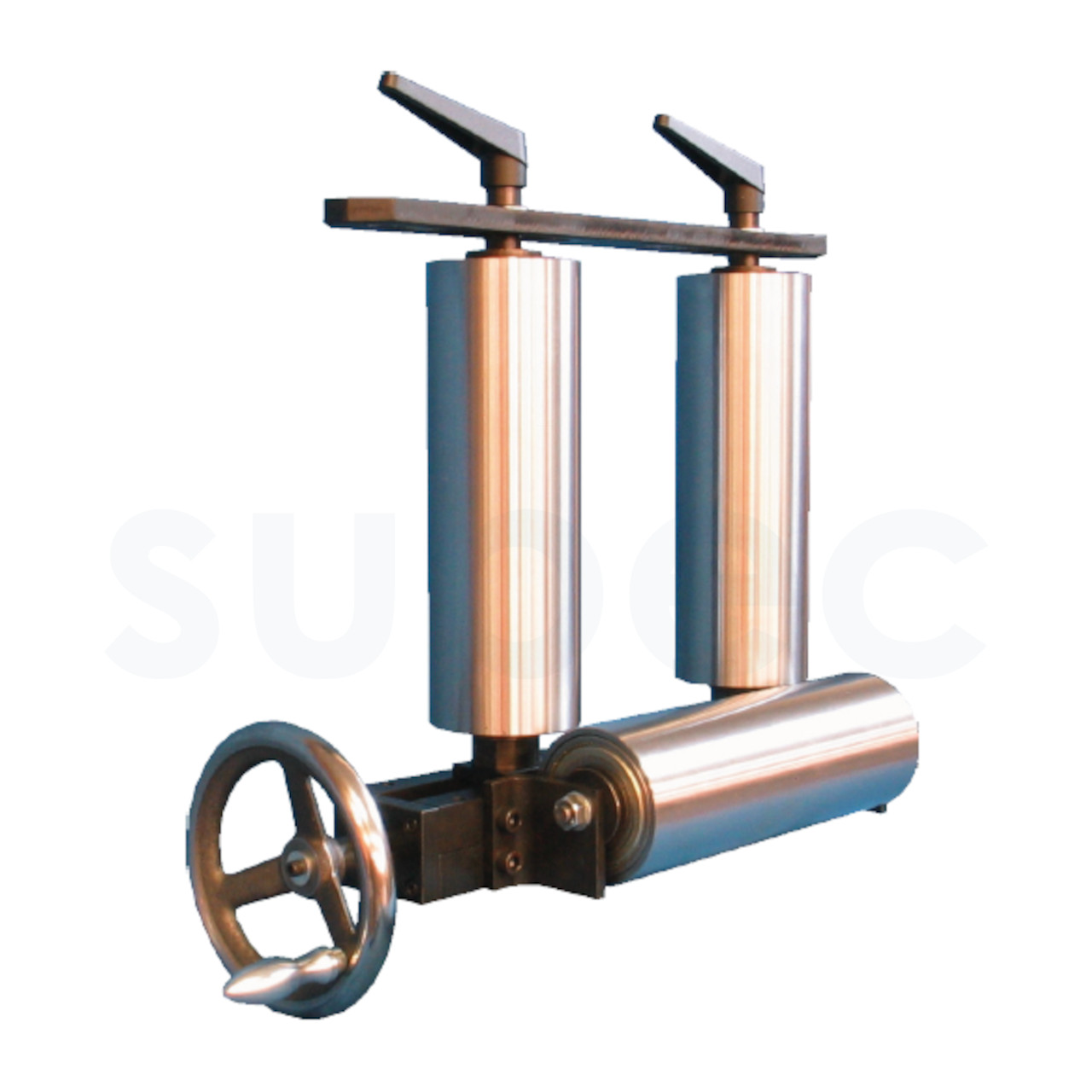

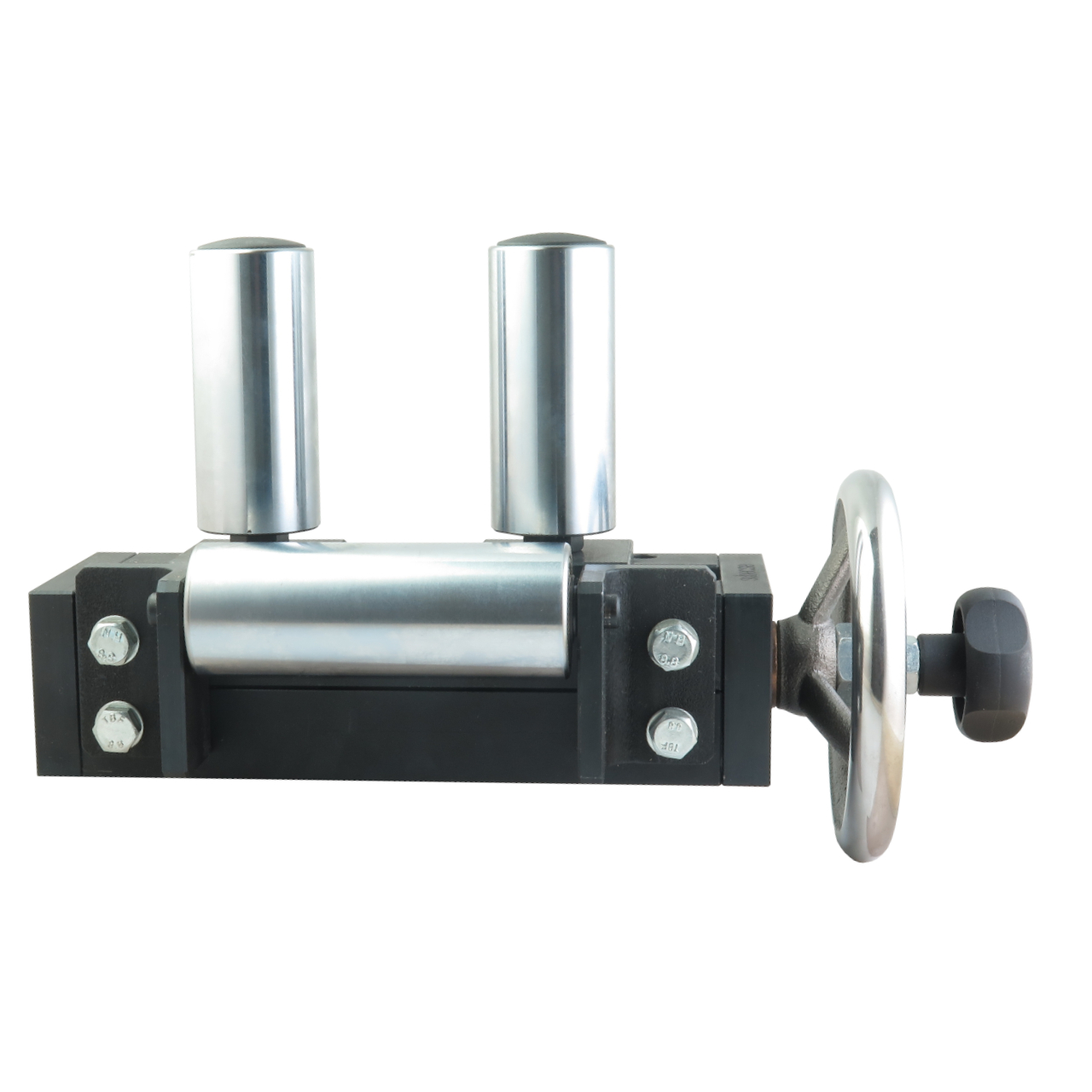

Roller Systems; 1+2 rollers with handwheel
Drawing No:These Roller Guides have one horizontal roller and two vertical rollers. When the handwheel is turned the vertical rollers close down to zero opening. Units with long vertical rollers have a re-inforcement bracket. HRX Rollers (hardened steel cylinder with a chrome layer) are standard, but other materials like polyurethan or plastic are also available.
-

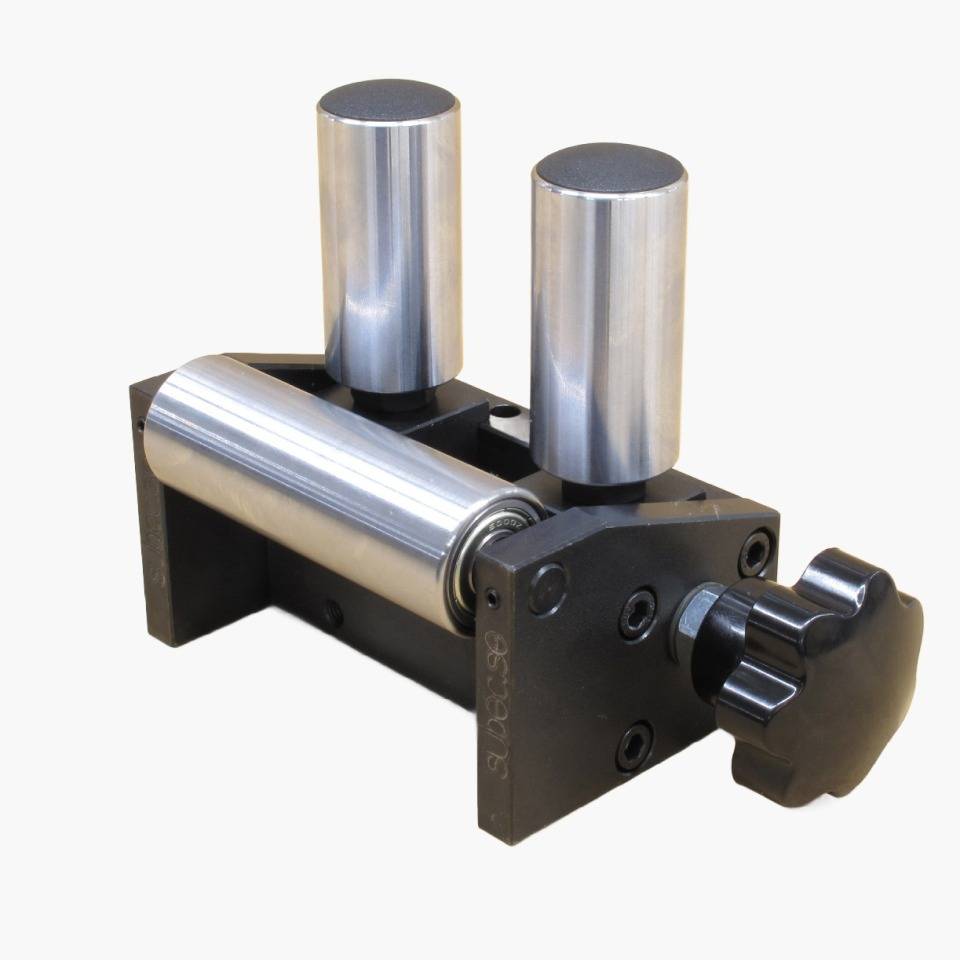

Roller Systems; opening 30mm (1.18’’)
Drawing No:These Roller Guides have one horizontal roller and two vertical rollers. When the knob is turned the vertical rollers D30mm close down to zero opening. Length of vertical rollers, typically 60, 90 or 90mm long. HRX Rollers (hardened steel cylinder with a chrome layer) are standard, but other materials like Polyurethan or plastic are also available.
-

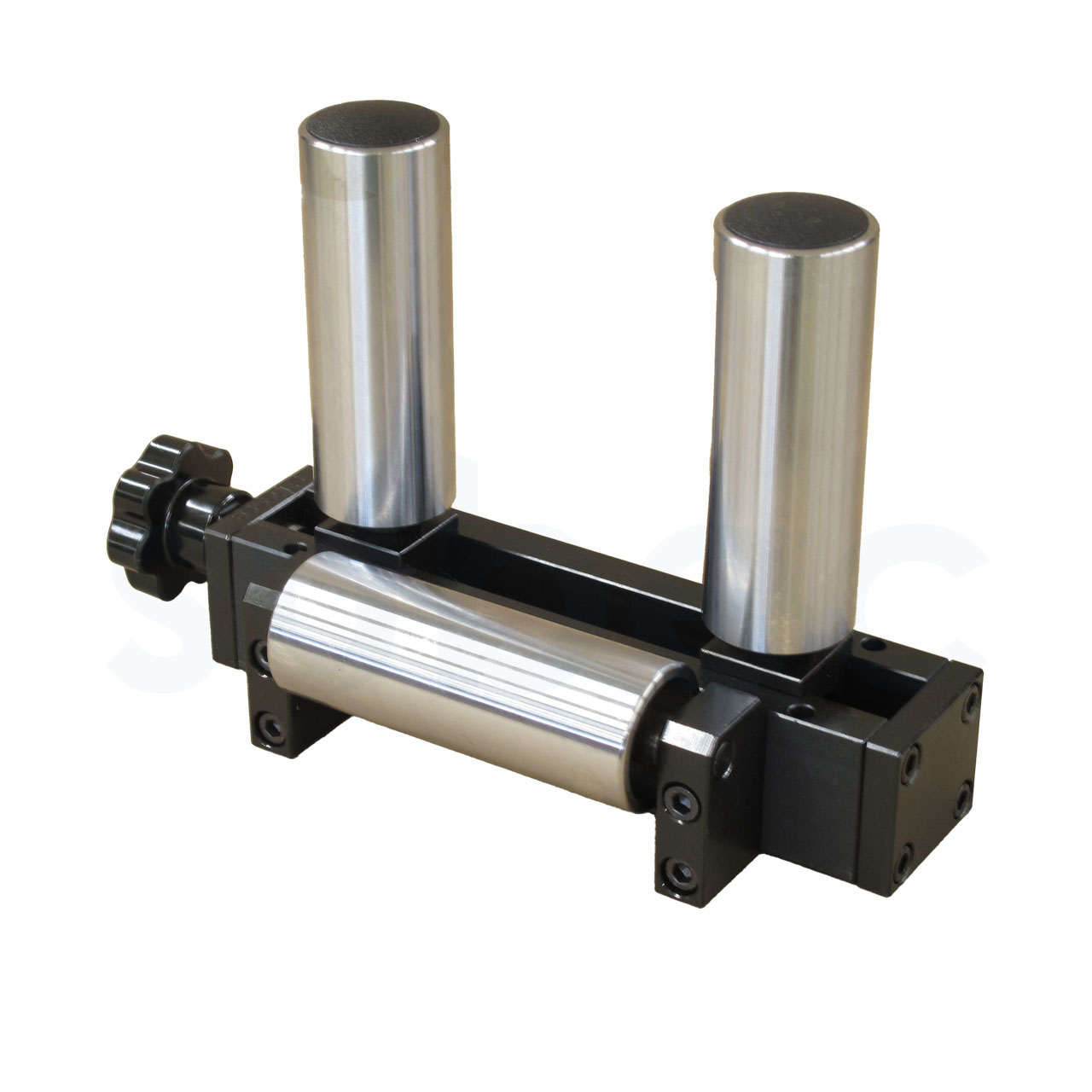

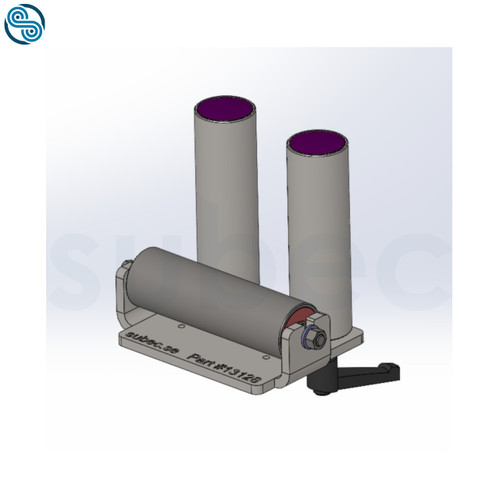

Roller Systems; opening 60mm (2,36")
Drawing No:These Roller Guides have one horizontal roller and two vertical rollers. When the knob is turned the vertical rollers close down to zero opening. Length of vertical rollers, typically 60, 90 or 90mm long. HRX Rollers (hardened steel cylinder with a chrome layer) are standard, but other materials like Polyurethan or plastic are also available.
-

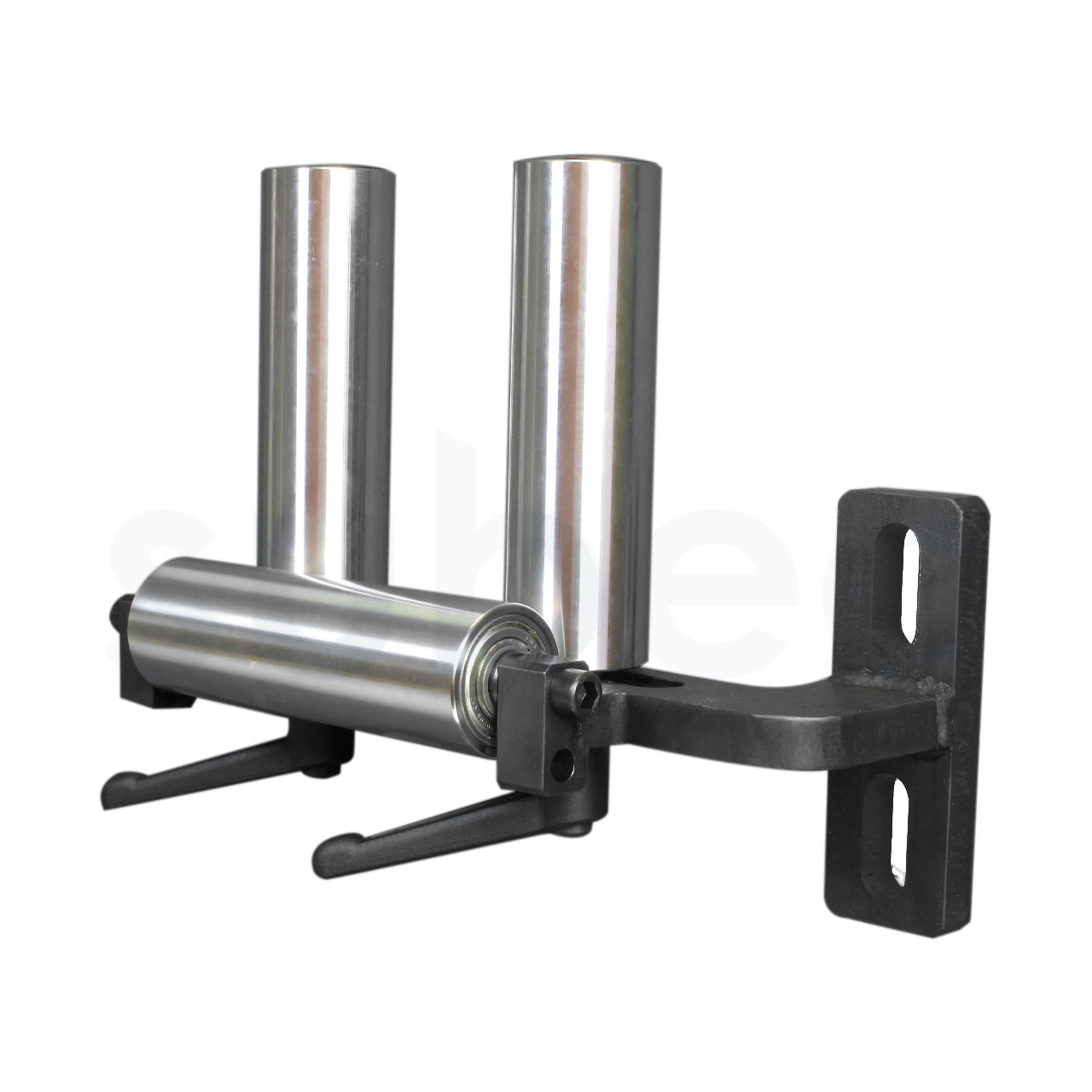

Side-Mounted Roller Guide
Drawing No:A robust side-mounted adjustable roller guide, designed for reliable guiding of cables, wires, or material strips. It features dual vertical rollers and quick-lock handles for fast and secure adjustment of the window opening. The design of the bracket is Ambidextrous.
-

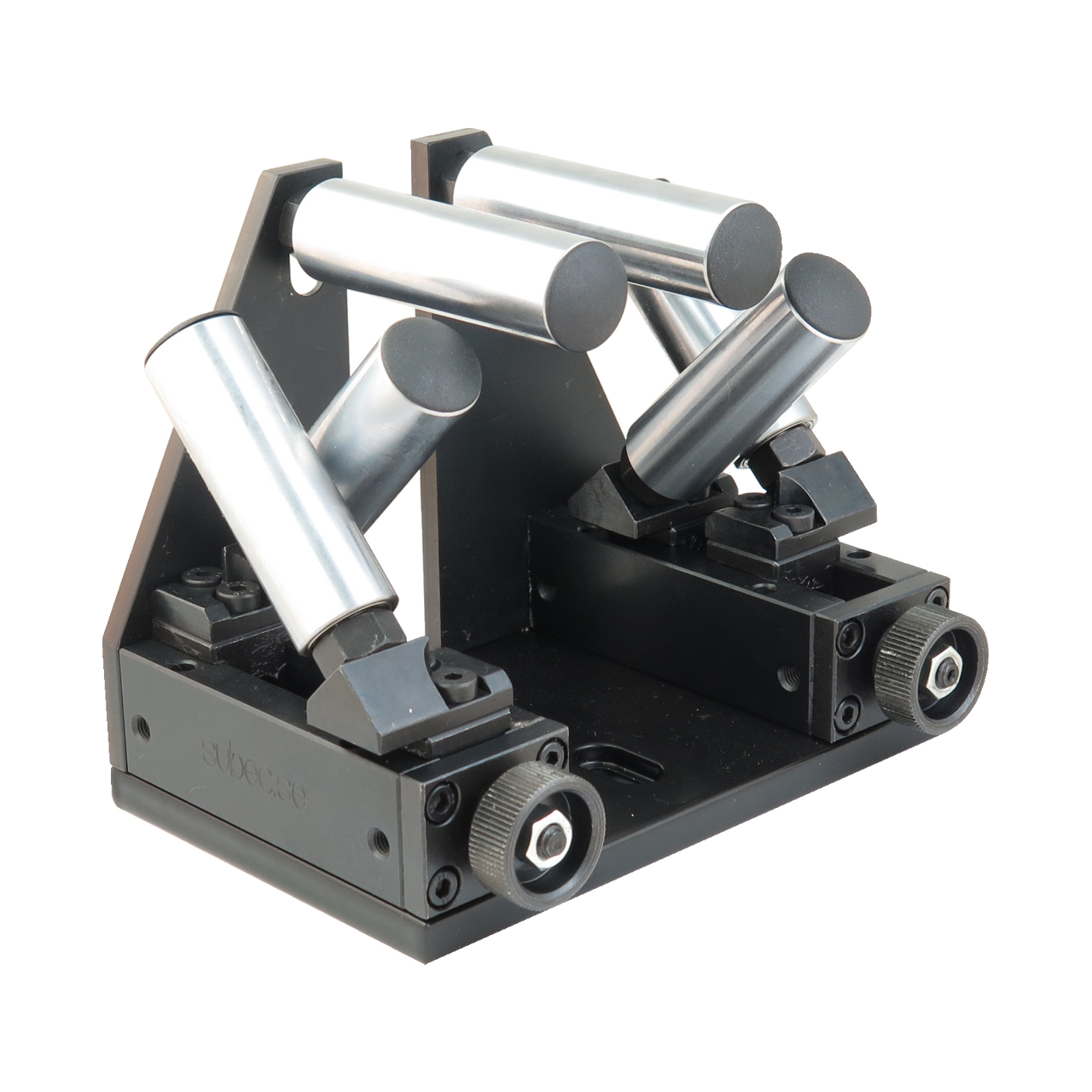

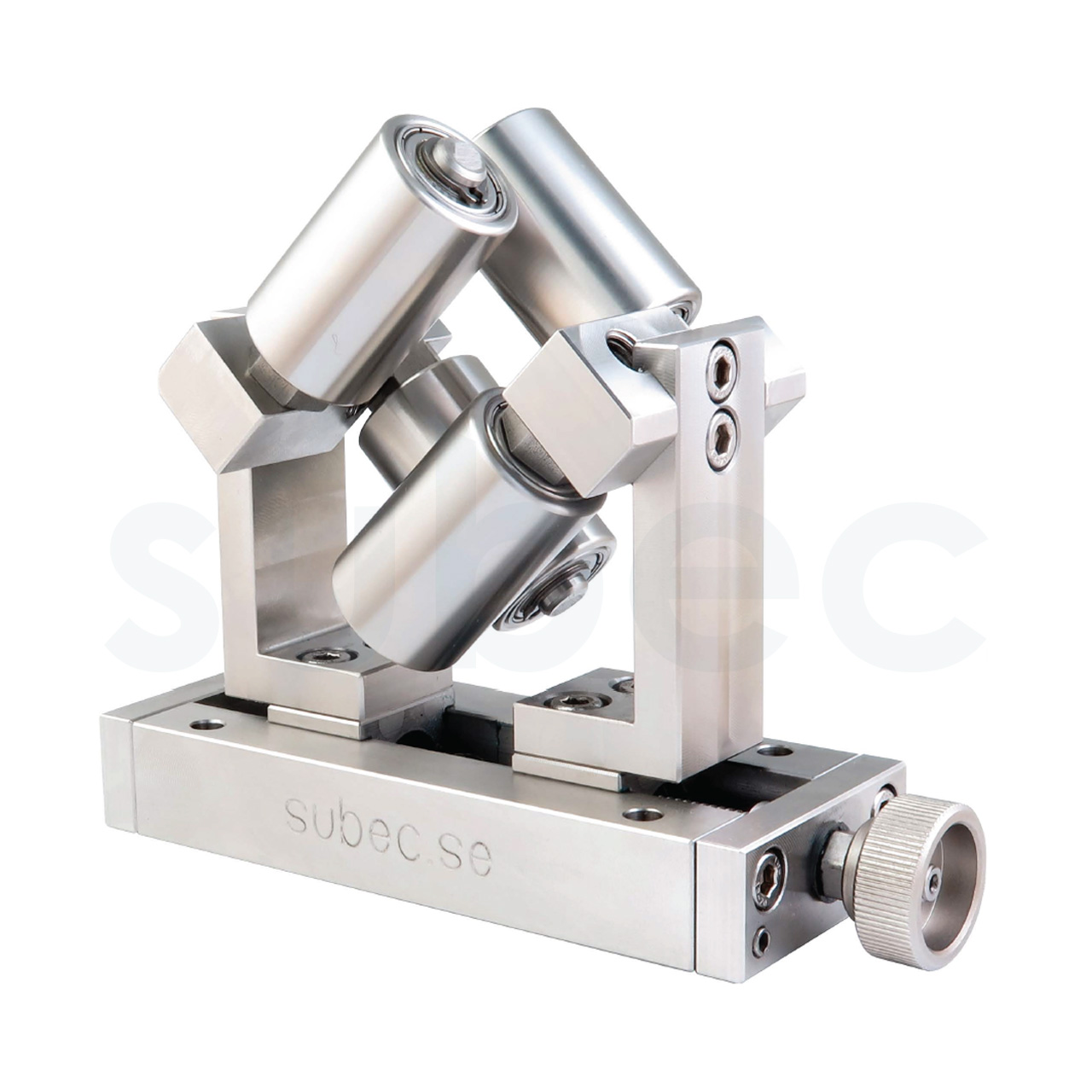

V-Guide system, TLU
Drawing No:Precision guiding for wires and cables with diameters ranging from 0 to 50 mm. The clever design allows lumps, knots, or joints to pass through. TLU – Top Line Unit: When the V-rollers close, they guide the product upward against the horizontal roller. This setup is ideal for maintaining a specific stand-off distance between, for example, a laser length counter beam and the product being measured.
