Roller Crosses – Frame Design

Roller Crosses – Frame Design

Drawing No: 3-401450-00

Description

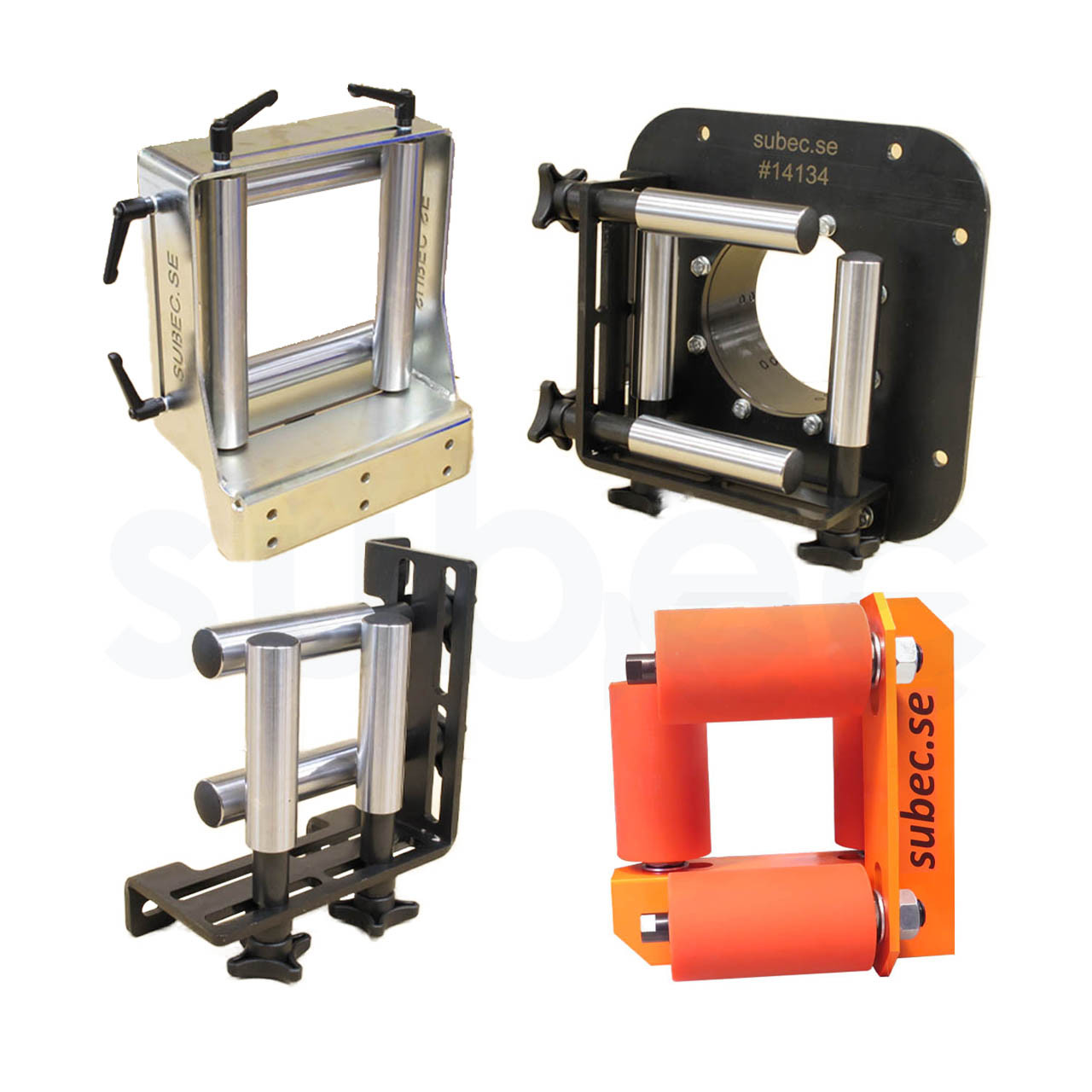

Roller Crosses in this category are based on a frame construction, where the rollers are mounted to a structural frame, as opposed to block-type designs where the rollers are integrated and guided within a solid steel block. All rollers are individually adjustable in this category. The frame design allows for a high degree of flexibility, enabling a wide range of configurations tailored to specific applications, processes, or machine interfaces. Frames can be manufactured in stainless steel, black oxidized steel, powder-coated steel, or zinc-coated steel, depending on environmental and operational requirements. Rollers are available in various shapes and sizes, with different cylinder materials such as hardened steel with chrome coating (HRX), plastic, or polyurethane-coated options, depending on the application.

Dimensions

  • Hide Filters
Article. No Opening Window, Min Opening Window, Max Diameter, Roller Vert. Diameter, Roller Horz. Length, Roller Vert. Length, Roller Horz. Material, Roller/Sheave Roller Guide Type Direction Suffix
21216 0.00 mm 250.00 mm 100.00 mm 100.00 mm 270.00 mm 355.00 mm HRX Asymmetrical Adjustable Guide Ambidextrous Vert ind adjust / Hor Low fixed
19889 0.00 mm 110.00 mm 60.00 mm 60.00 mm 380.00 mm 245.00 mm HRX Asymmetrical Adjustable Guide Ambidextrous n/a
16737 0.00 mm 150.00 mm 40.00 mm 40.00 mm 250.00 mm 250.00 mm HRX Asymmetrical Adjustable Guide Ambidextrous n/a
14134 0.00 mm 105.00 mm 25.00 mm 25.00 mm 100.00 mm 100.00 mm HRX Asymmetrical Adjustable Guide Ambidextrous Flanged Tube adapter
13949 0.00 mm 105.00 mm 25.00 mm 25.00 mm 100.00 mm 100.00 mm HRX Asymmetrical Adjustable Guide Ambidextrous n/a

No products matches the diameter range

Reach out to us for other dimensions on request.
