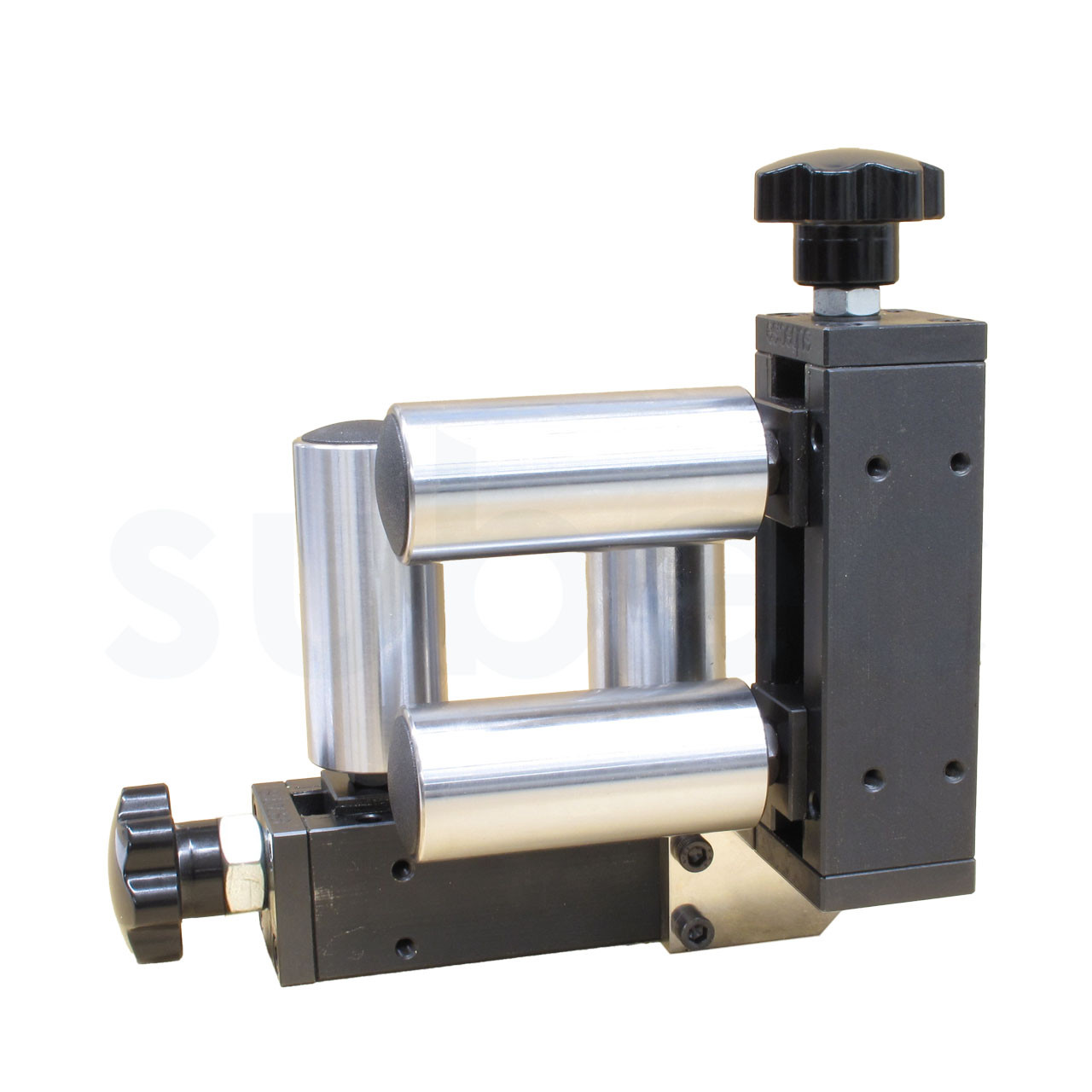

Roller Cross; opening 60mm (2.36")

Roller Cross; opening 60mm (2.36")

Drawing No: 3-300079-00

Description

These Roller Crosses are equipped with two horizontal and two vertical rollers. Each roller set is independently adjustable: one hand wheel controls the vertical rollers and one controls the horizontal rollers, both allowing an opening range from 0 to 60 mm (2.36''). In selected configurations, each roller can be individually adjusted toward the center of the block using dedicated hand wheels. This allows for precise positioning and makes the unit well-suited for accurate guiding of round products as well as tapes made from various materials. Standard rollers are manufactured in HRX material (hardened steel cylinders with a chrome layer). Alternative materials are available upon request, including polyurethane-coated rollers, plastic, and PTFE, depending on application requirements.

Dimensions

  • Hide Filters
Article. No Opening Window, Min Opening Window, Max Diameter, Roller Vert. Diameter, Roller Horz. Length, Roller Vert. Length, Roller Horz. Material, Roller/Sheave Roller Guide Type Direction Suffix
19211 0.00 mm 60.00 mm 40.00 mm 40.00 mm 90.00 mm 90.00 mm PTFE Symmetrically Adjustable Guide Ambidextrous n/a
6292A 0.00 mm 70.00 mm 30.00 mm 30.00 mm 90.00 mm 90.00 mm HRX Asymmetrical Adjustable Guide Ambidextrous Rollers Individually adjustable
14324 0.00 mm 70.00 mm 30.00 mm 30.00 mm 90.00 mm 90.00 mm HRX Symmetrically Adjustable Guide Ambidextrous n/a
13249 0.00 mm 70.00 mm 30.00 mm 30.00 mm 90.00 mm 90.00 mm HRX Symmetrically Adjustable Guide Left to Right -
0053 0.00 mm 60.00 mm 40.00 mm 40.00 mm 90.00 mm 90.00 mm HRX Symmetrically Adjustable Guide Ambidextrous n/a

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 19211
Opening Window, Min 0.00 mm
Opening Window, Max 60.00 mm
Diameter, Roller Vert. 40.00 mm
Diameter, Roller Horz. 40.00 mm
Length, Roller Vert. 90.00 mm
Length, Roller Horz. 90.00 mm
Article. No 6292A
Opening Window, Min 0.00 mm
Opening Window, Max 70.00 mm
Diameter, Roller Vert. 30.00 mm
Diameter, Roller Horz. 30.00 mm
Length, Roller Vert. 90.00 mm
Length, Roller Horz. 90.00 mm
Article. No 14324
Opening Window, Min 0.00 mm
Opening Window, Max 70.00 mm
Diameter, Roller Vert. 30.00 mm
Diameter, Roller Horz. 30.00 mm
Length, Roller Vert. 90.00 mm
Length, Roller Horz. 90.00 mm
Article. No 13249
Opening Window, Min 0.00 mm
Opening Window, Max 70.00 mm
Diameter, Roller Vert. 30.00 mm
Diameter, Roller Horz. 30.00 mm
Length, Roller Vert. 90.00 mm
Length, Roller Horz. 90.00 mm
Article. No 0053
Opening Window, Min 0.00 mm
Opening Window, Max 60.00 mm
Diameter, Roller Vert. 40.00 mm
Diameter, Roller Horz. 40.00 mm
Length, Roller Vert. 90.00 mm
Length, Roller Horz. 90.00 mm
!
