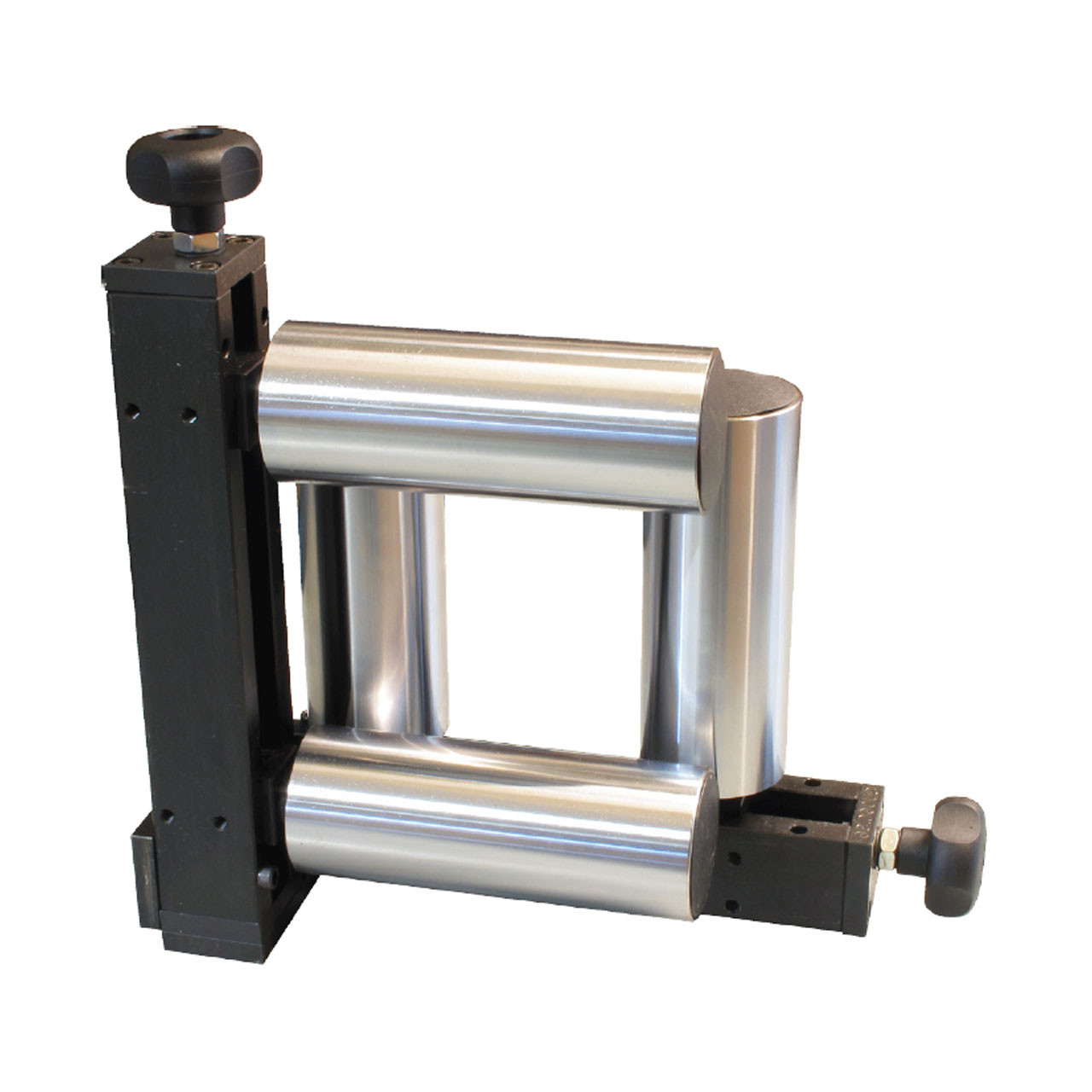

Roller Cross D60 Rollers, All Adjustable

Roller Cross D60 Rollers, All Adjustable

Drawing No: 3-400263-00

Description

Sturdy Roller Cross, available in both left- and right-hand configurations. The unit is equipped with D60 HRX rollers (hardened steel with hard chromium plating). The roller pair moves symmetrically toward or away from each other by turning the adjustment star knob, allowing precise positioning of the product during operation. All rollers adjustable.

Dimensions

  • Hide Filters
Article. No Opening Window, Min Opening Window, Max Diameter, Roller Vert. Diameter, Roller Horz. Length, Roller Vert. Length, Roller Horz. Material, Roller/Sheave Roller Guide Type Direction Suffix
0058RLA 0.00 mm 170.00 mm 60.00 mm 60.00 mm 160.00 mm 160.00 mm HRX Symmetrically Adjustable Guide Right to Left Star Knob
0058LRA 0.00 mm 170.00 mm 60.00 mm 60.00 mm 160.00 mm 160.00 mm HRX Symmetrically Adjustable Guide Left to Right Star Knob

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 0058RLA
Opening Window, Min 0.00 mm
Opening Window, Max 170.00 mm
Diameter, Roller Vert. 60.00 mm
Diameter, Roller Horz. 60.00 mm
Length, Roller Vert. 160.00 mm
Length, Roller Horz. 160.00 mm
Article. No 0058LRA
Opening Window, Min 0.00 mm
Opening Window, Max 170.00 mm
Diameter, Roller Vert. 60.00 mm
Diameter, Roller Horz. 60.00 mm
Length, Roller Vert. 160.00 mm
Length, Roller Horz. 160.00 mm
!
