Iris Opening 70mm (2.76‘‘)

Iris Opening 70mm (2.76‘‘)

Drawing No: 3-400301-01

Description

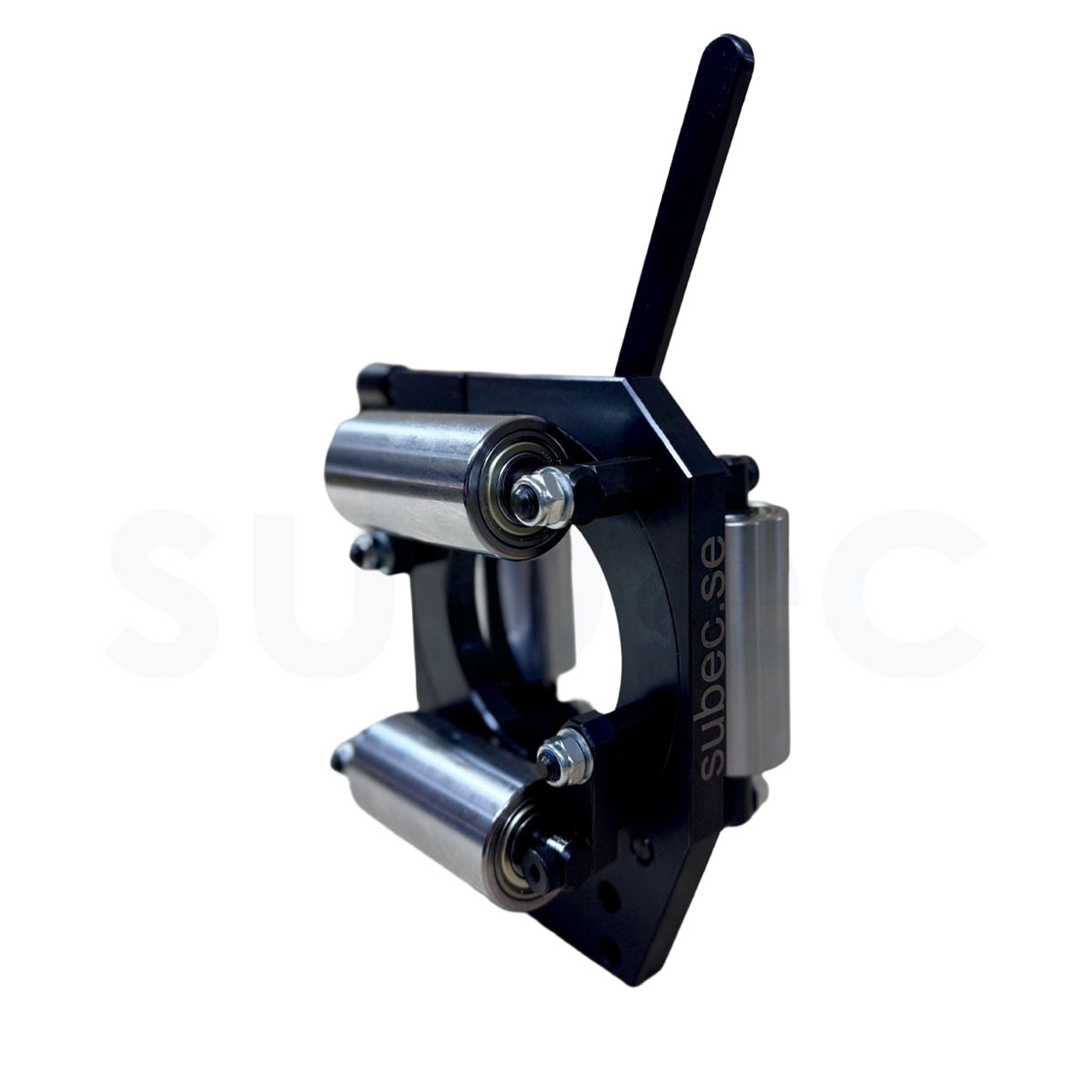

This Iris Cross is equipped with D40mm HRX rollers (hardened steel with a hard chromium layer). Versatile and easy to adjust and lock. Rollers are available in different materials such as plastic or in solid Tungsten Carbide. The Iris body is as standard black oxidized, but also stainless steel is available.

Dimensions

  • Hide Filters
Article. No Opening Window, Min Opening Window, Max Diameter, Outer Material, Roller/Sheave Surface Treatment Suffix
1181B 10.00 mm 70.00 mm 40.00 mm HRX Black Oxidized n/a
2716A 10.00 mm 70.00 mm 40.00 mm Stainless 18.8 n/a Stainless

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 1181B
Opening Window, Min 10.00 mm
Opening Window, Max 70.00 mm
Diameter, Outer 40.00 mm
Material, Roller/Sheave HRX
Surface Treatment Black Oxidized
Suffix n/a
Article. No 2716A
Opening Window, Min 10.00 mm
Opening Window, Max 70.00 mm
Diameter, Outer 40.00 mm
Material, Roller/Sheave Stainless 18.8
Surface Treatment n/a
Suffix Stainless
!
