Iris, For rotating applications

Iris, For rotating applications

Drawing No: 3-401526-00

Description

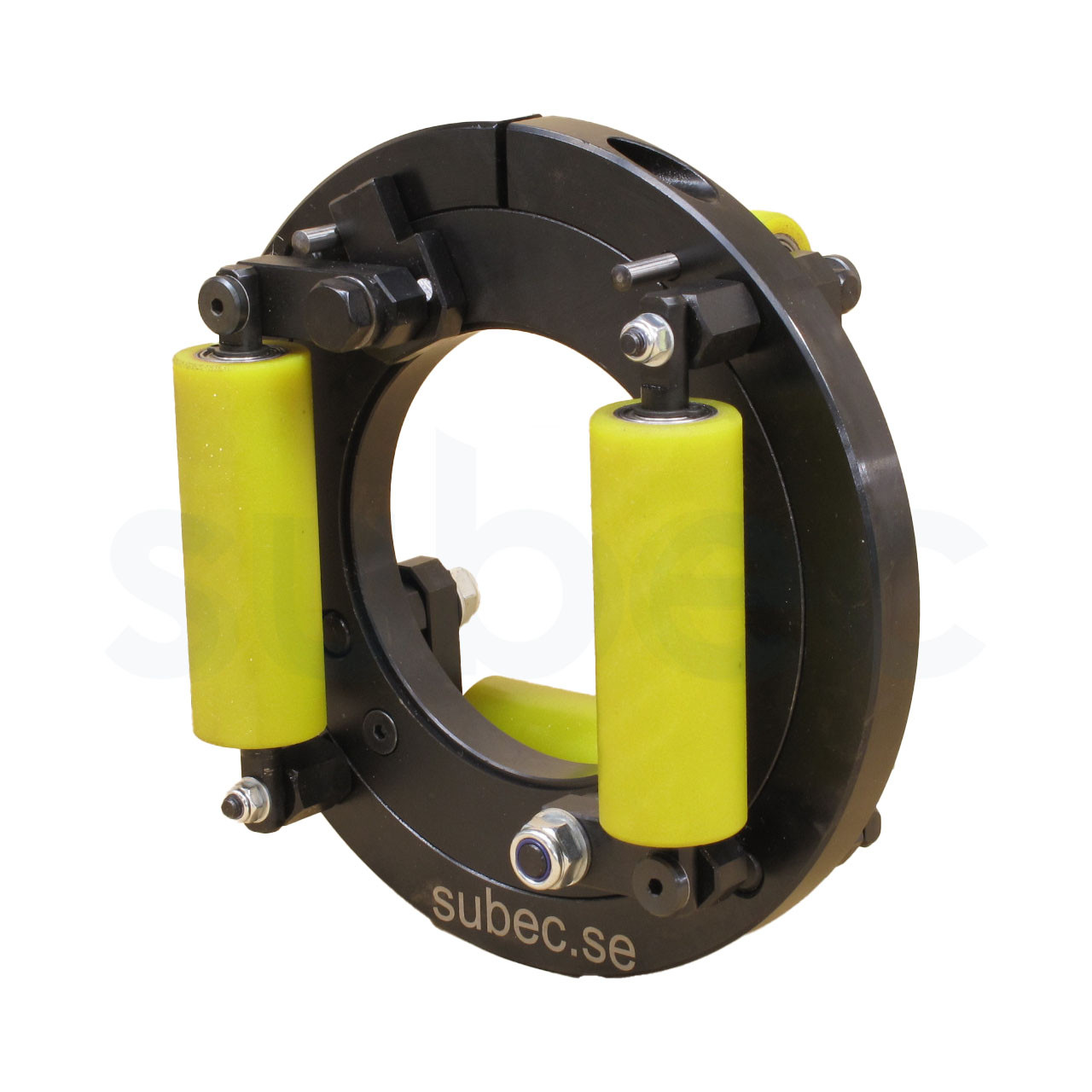

These Iris Crosses are specially designed for integration on rotating machinery. The round body contour and absence of an adjustment lever make them ideal for continuous rotation without mechanical interference. They are available in various opening sizes and can be equipped with rollers featuring cylinders made from different materials, including plastic, polyurethane (PU), or solid tungsten carbide, depending on the application's demands for durability, friction, and wear resistance.

Dimensions

  • Hide Filters
Article. No Opening Window, Min Opening Window, Max Diameter, Outer Material, Roller/Sheave Surface Treatment Suffix
20548 70.00 mm 160.00 mm 60.00 mm HRX Black Oxidized n/a
15500 12.00 mm 80.00 mm 28.00 mm Steel n/a rotating

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 20548
Opening Window, Min 70.00 mm
Opening Window, Max 160.00 mm
Diameter, Outer 60.00 mm
Material, Roller/Sheave HRX
Surface Treatment Black Oxidized
Suffix n/a
Article. No 15500
Opening Window, Min 12.00 mm
Opening Window, Max 80.00 mm
Diameter, Outer 28.00 mm
Material, Roller/Sheave Steel
Surface Treatment n/a
Suffix rotating
