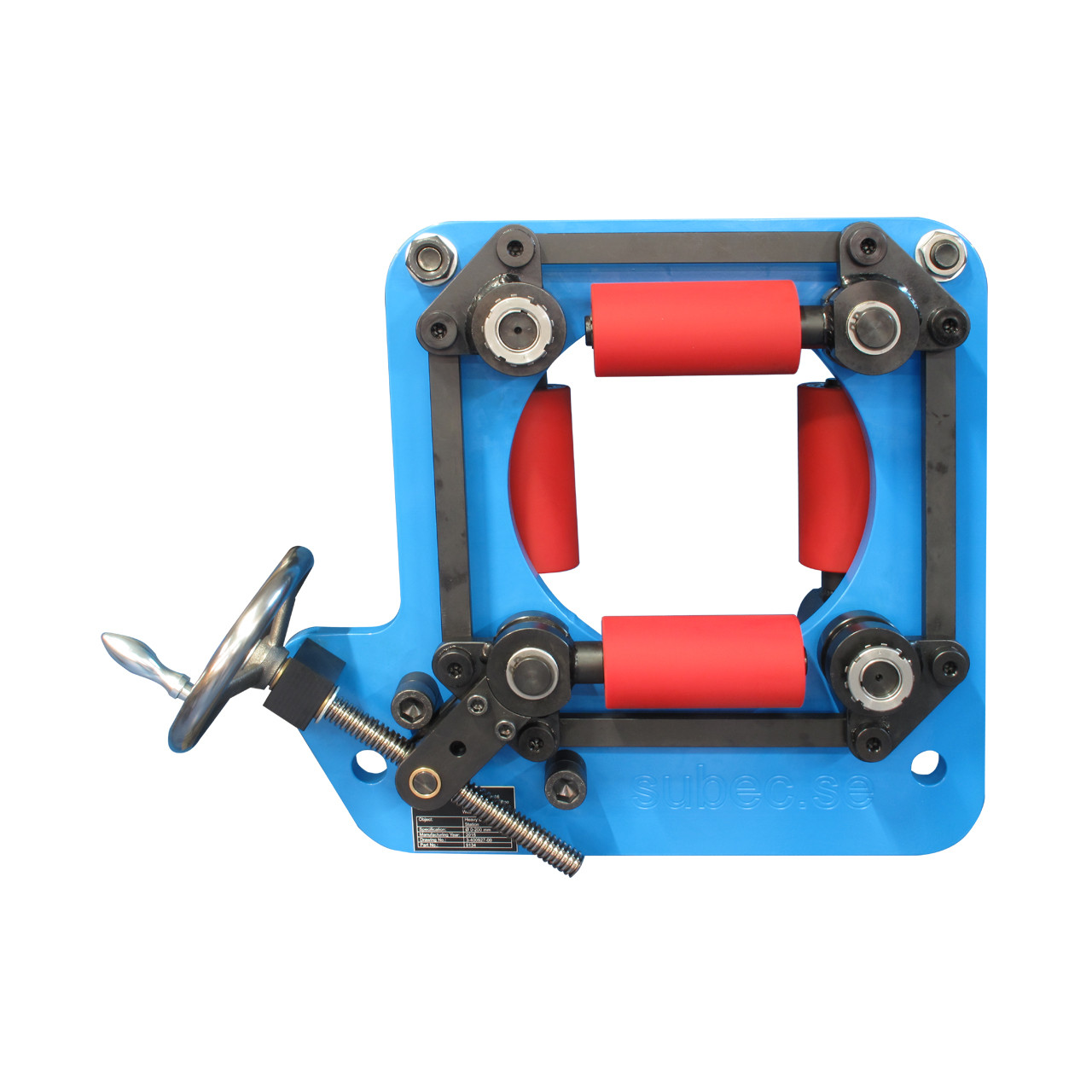

Heavy Duty IRIS Station; Handwheel

Heavy Duty IRIS Station; Handwheel

Drawing No: 3-400927-00

Description

Heavy Duty Irises with self locking threaded rod to adjust the opening window under load. Rollers can be PU coated or in Chromium plated and induction hardened steel (HRX). Postion of the handle can be adapted to your need as well as the max opening window

Dimensions

  • Hide Filters
Article. No Opening Window, Min Opening Window, Max Diameter, Outer Material, Roller/Sheave Surface Treatment Suffix
8377A 70.00 mm 450.00 mm 100.00 mm HRX n/a n/a
13871 70.00 mm 450.00 mm 100.00 mm PA6 n/a PA6 sleeves on steel cylinders
9706 70.00 mm 300.00 mm 100.00 mm HRX n/a n/a
9134 0.00 mm 200.00 mm 75.00 mm PU 85 Shore A n/a n/a

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 8377A
Opening Window, Min 70.00 mm
Opening Window, Max 450.00 mm
Diameter, Outer 100.00 mm
Material, Roller/Sheave HRX
Surface Treatment n/a
Suffix n/a
Article. No 13871
Opening Window, Min 70.00 mm
Opening Window, Max 450.00 mm
Diameter, Outer 100.00 mm
Material, Roller/Sheave PA6
Surface Treatment n/a
Suffix PA6 sleeves on steel cylinders
Article. No 9706
Opening Window, Min 70.00 mm
Opening Window, Max 300.00 mm
Diameter, Outer 100.00 mm
Material, Roller/Sheave HRX
Surface Treatment n/a
Suffix n/a
Article. No 9134
Opening Window, Min 0.00 mm
Opening Window, Max 200.00 mm
Diameter, Outer 75.00 mm
Material, Roller/Sheave PU 85 Shore A
Surface Treatment n/a
Suffix n/a
!
