Tube Eyelets with Radius Inside

Tube Eyelets with Radius Inside

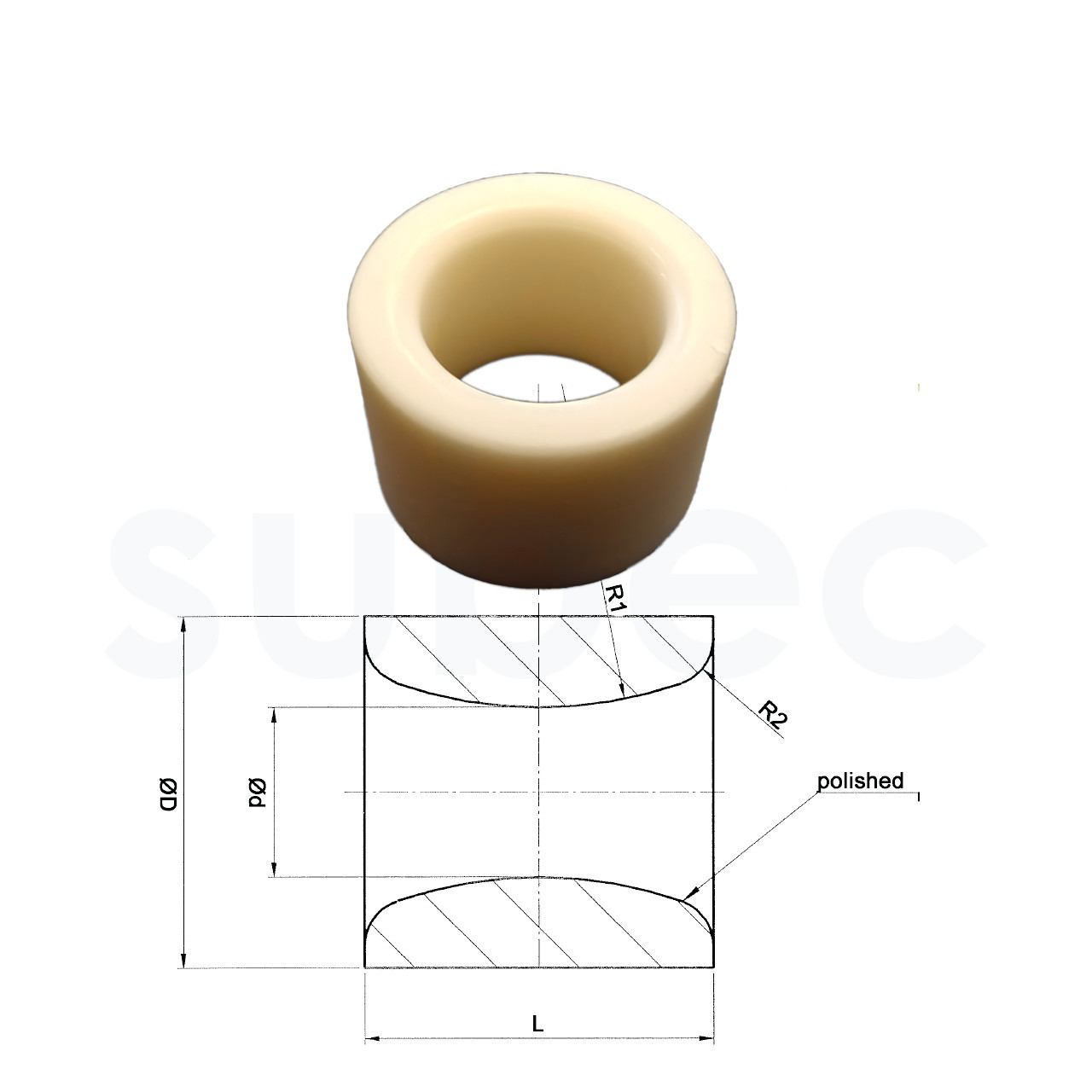

Drawing No: 1-400623-00

Description

Dimensions

  • Hide Filters
Article. No Diameter, Outer Diameter, Inner Length Radius Radius 2 Material
6489 50.00 mm 16.00 mm 50.00 mm 80.00 mm 5.00 mm Al2O3 99%
5305 12.00 mm 7.00 mm 10.00 mm 10.00 mm n/a mm Al2O3 95%
5095 18.00 mm 12.50 mm 14.00 mm 12.00 mm n/a mm Al2O3 99,8%
4529 30.00 mm 20.00 mm 15.00 mm 0.50 mm 0.50 mm Al2O3 99%
4484 20.00 mm 12.00 mm 10.00 mm 2.00 mm 2.00 mm Al2O3 97%
4319 9.00 mm 6.00 mm 7.00 mm 1.00 mm 1.00 mm Al2O3 99,5%
21131 15.00 mm 10.00 mm 10.00 mm 10.00 mm 1.50 mm Al2O3 95%
2804A 20.00 mm 10.00 mm 18.00 mm 3.00 mm 3.00 mm Al2O3 99,5%
11082 35.00 mm 24.00 mm 55.00 mm 2.50 mm 2.50 mm Al2O3 95%
7727 25.00 mm 15.00 mm 17.00 mm 40.00 mm 2.00 mm Al2O3 99,7%
3761 22.00 mm 16.00 mm 10.00 mm 2.00 mm 2.00 mm Al2O3 95%
2655 32.00 mm 25.00 mm 12.00 mm 2.00 mm 2.00 mm Al2O3 99,5%
2642 32.00 mm 19.00 mm 12.00 mm 2.00 mm 2.00 mm Al2O3 99,5%
2641 26.00 mm 16.00 mm 10.00 mm 8.00 mm 8.00 mm Al2O3 99,5%
2640 20.00 mm 12.00 mm 12.00 mm 2.00 mm n/a mm Al2O3 95%
2639 20.00 mm 12.00 mm 10.00 mm 2.00 mm n/a mm Al2O3 99,5%

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 6489
Diameter, Outer 50.00 mm
Diameter, Inner 16.00 mm
Length 50.00 mm
Radius 80.00 mm
Radius 2 5.00 mm
Material Al2O3 99%
Article. No 5305
Diameter, Outer 12.00 mm
Diameter, Inner 7.00 mm
Length 10.00 mm
Radius 10.00 mm
Radius 2 n/a mm
Material Al2O3 95%
Article. No 5095
Diameter, Outer 18.00 mm
Diameter, Inner 12.50 mm
Length 14.00 mm
Radius 12.00 mm
Radius 2 n/a mm
Material Al2O3 99,8%
Article. No 4529
Diameter, Outer 30.00 mm
Diameter, Inner 20.00 mm
Length 15.00 mm
Radius 0.50 mm
Radius 2 0.50 mm
Material Al2O3 99%
Article. No 4484
Diameter, Outer 20.00 mm
Diameter, Inner 12.00 mm
Length 10.00 mm
Radius 2.00 mm
Radius 2 2.00 mm
Material Al2O3 97%
Article. No 4319
Diameter, Outer 9.00 mm
Diameter, Inner 6.00 mm
Length 7.00 mm
Radius 1.00 mm
Radius 2 1.00 mm
Material Al2O3 99,5%
Article. No 21131
Diameter, Outer 15.00 mm
Diameter, Inner 10.00 mm
Length 10.00 mm
Radius 10.00 mm
Radius 2 1.50 mm
Material Al2O3 95%
Article. No 2804A
Diameter, Outer 20.00 mm
Diameter, Inner 10.00 mm
Length 18.00 mm
Radius 3.00 mm
Radius 2 3.00 mm
Material Al2O3 99,5%
Article. No 11082
Diameter, Outer 35.00 mm
Diameter, Inner 24.00 mm
Length 55.00 mm
Radius 2.50 mm
Radius 2 2.50 mm
Material Al2O3 95%
Article. No 7727
Diameter, Outer 25.00 mm
Diameter, Inner 15.00 mm
Length 17.00 mm
Radius 40.00 mm
Radius 2 2.00 mm
Material Al2O3 99,7%
Article. No 3761
Diameter, Outer 22.00 mm
Diameter, Inner 16.00 mm
Length 10.00 mm
Radius 2.00 mm
Radius 2 2.00 mm
Material Al2O3 95%
Article. No 2655
Diameter, Outer 32.00 mm
Diameter, Inner 25.00 mm
Length 12.00 mm
Radius 2.00 mm
Radius 2 2.00 mm
Material Al2O3 99,5%
Article. No 2642
Diameter, Outer 32.00 mm
Diameter, Inner 19.00 mm
Length 12.00 mm
Radius 2.00 mm
Radius 2 2.00 mm
Material Al2O3 99,5%
Article. No 2641
Diameter, Outer 26.00 mm
Diameter, Inner 16.00 mm
Length 10.00 mm
Radius 8.00 mm
Radius 2 8.00 mm
Material Al2O3 99,5%
Article. No 2640
Diameter, Outer 20.00 mm
Diameter, Inner 12.00 mm
Length 12.00 mm
Radius 2.00 mm
Radius 2 n/a mm
Material Al2O3 95%
Article. No 2639
Diameter, Outer 20.00 mm
Diameter, Inner 12.00 mm
Length 10.00 mm
Radius 2.00 mm
Radius 2 n/a mm
Material Al2O3 99,5%
!
