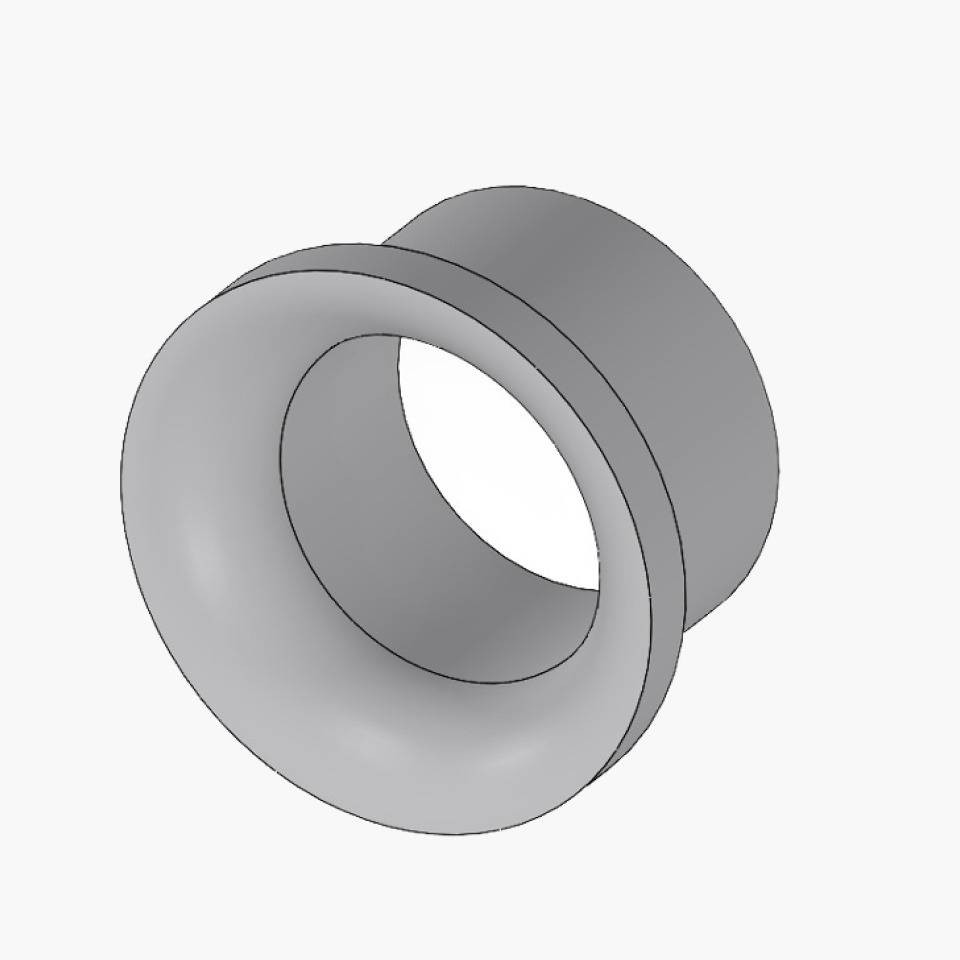

Standard Model, Tapered ID

Standard Model, Tapered ID

Drawing No: 1-400880-00

Description

Dimensions

  • Hide Filters
Article. No Diameter, Inner Diameter, Outer Flange, Diameter Length Flange, Thickness Material Split Suffix
18502P1A 40.00 mm 50.50 mm 63.00 mm 38.00 mm 7.00 mm Al2O3 99,5% No white
16826 15.00 mm 22.00 mm 28.00 mm 33.00 mm 3.00 mm Al2O3 99,8% n/a R200
16825 15.00 mm 22.00 mm 28.00 mm 23.00 mm 3.00 mm Al2O3 99,8% n/a R100
9891 4.00 mm 9.90 mm 13.70 mm 11.20 mm 5.90 mm Al2O3 99% n/a n/a
3708 6.00 mm 12.80 mm 17.00 mm 20.00 mm 5.00 mm Al2O3 95% n/a n/a
3512 8.00 mm 13.90 mm 20.00 mm 17.00 mm 5.00 mm Al2O3 95% n/a n/a

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 18502P1A
Diameter, Inner 40.00 mm
Diameter, Outer 50.50 mm
Flange, Diameter 63.00 mm
Length 38.00 mm
Flange, Thickness 7.00 mm
Material Al2O3 99,5%
Article. No 16826
Diameter, Inner 15.00 mm
Diameter, Outer 22.00 mm
Flange, Diameter 28.00 mm
Length 33.00 mm
Flange, Thickness 3.00 mm
Material Al2O3 99,8%
Article. No 16825
Diameter, Inner 15.00 mm
Diameter, Outer 22.00 mm
Flange, Diameter 28.00 mm
Length 23.00 mm
Flange, Thickness 3.00 mm
Material Al2O3 99,8%
Article. No 9891
Diameter, Inner 4.00 mm
Diameter, Outer 9.90 mm
Flange, Diameter 13.70 mm
Length 11.20 mm
Flange, Thickness 5.90 mm
Material Al2O3 99%
Article. No 3708
Diameter, Inner 6.00 mm
Diameter, Outer 12.80 mm
Flange, Diameter 17.00 mm
Length 20.00 mm
Flange, Thickness 5.00 mm
Material Al2O3 95%
Article. No 3512
Diameter, Inner 8.00 mm
Diameter, Outer 13.90 mm
Flange, Diameter 20.00 mm
Length 17.00 mm
Flange, Thickness 5.00 mm
Material Al2O3 95%
!
