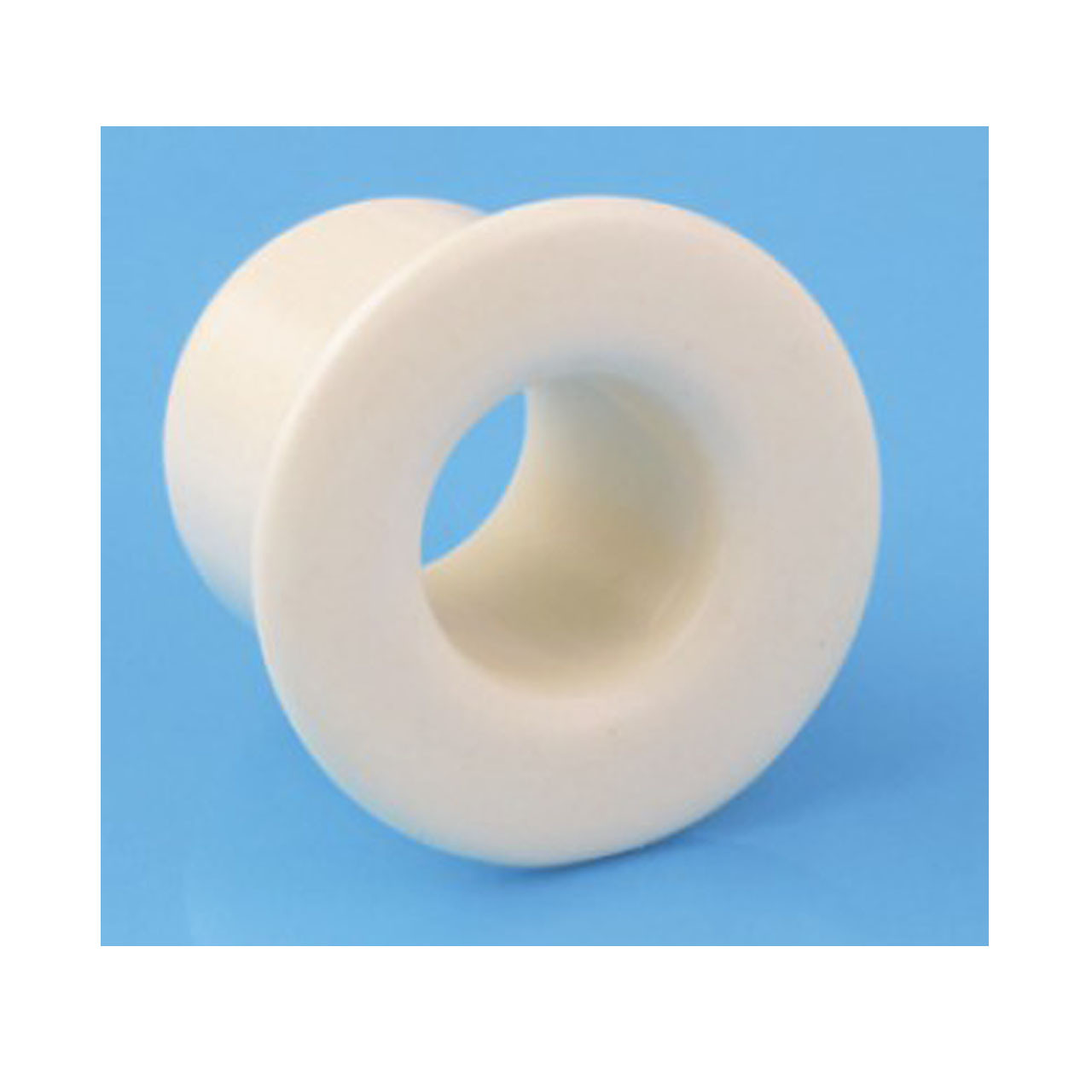

Flanged Eyelet, Standard Model Straight ID

Flanged Eyelet, Standard Model Straight ID

Drawing No: 1-400603-00

Description

Dimensions

  • Hide Filters
Article. No Diameter, Inner Diameter, Outer Flange, Diameter Length Flange, Thickness Material Split Suffix
6103 3.40 mm 6.20 mm 8.00 mm 5.50 mm 2.00 mm Al2O3 95% n/a n/a
5900 35.00 mm 47.00 mm 64.00 mm 18.00 mm 4.00 mm Al2O3 95% n/a n/a
5899 16.00 mm 25.00 mm 32.00 mm 20.00 mm 6.00 mm Al2O3 95% n/a n/a
5781 16.00 mm 23.80 mm 28.00 mm 22.00 mm 8.00 mm Al2O3 99,5% n/a n/a
5696 10.00 mm 15.00 mm 18.00 mm 20.00 mm 4.00 mm Al2O3 95% n/a n/a
5246 7.50 mm 10.00 mm 13.00 mm 12.00 mm 3.20 mm Al2O3 95% n/a n/a
9023 1.50 mm 4.00 mm 5.50 mm 5.50 mm 1.50 mm Al2O3 95% n/a n/a
9022 4.00 mm 7.50 mm 10.70 mm 8.50 mm 1.80 mm Al2O3 99,5% n/a n/a
8385 1.05 mm 5.50 mm 7.50 mm 5.00 mm 1.50 mm Al2O3 99,7% n/a n/a
7013 3.50 mm 7.50 mm 9.00 mm 8.50 mm 2.00 mm Al2O3 95% n/a n/a
6767 4.90 mm 8.60 mm 10.60 mm 15.10 mm 4.50 mm Al2O3 95% n/a n/a
6382 0.50 mm 4.00 mm 5.00 mm 4.00 mm 1.00 mm Al2O3 99,5% No n/a
20492 13.00 mm 20.00 mm 25.00 mm 20.00 mm 6.00 mm Al2O3 99,5% n/a n/a
18387P1 51.00 mm 63.00 mm 75.00 mm 43.00 mm 6.00 mm Al2O3 99,8% n/a n/a
5171A 20.00 mm 30.00 mm 35.00 mm 20.00 mm 5.00 mm Al2O3 99,7% n/a n/a
13982 15.00 mm 22.00 mm 25.30 mm 14.90 mm 3.00 mm Al2O3 99,7% n/a n/a
9026 13.00 mm 20.00 mm 25.00 mm 20.00 mm 5.50 mm Al2O3 99,7% n/a n/a
4358 6.00 mm 11.70 mm 15.00 mm 15.00 mm 3.00 mm Al2O3 95% n/a n/a
4288 16.00 mm 20.00 mm 24.00 mm 16.00 mm 4.00 mm Al2O3 99,7% n/a n/a
3620 6.00 mm 10.50 mm 12.50 mm 8.00 mm 3.00 mm Al2O3 95% n/a n/a

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 6103
Diameter, Inner 3.40 mm
Diameter, Outer 6.20 mm
Flange, Diameter 8.00 mm
Length 5.50 mm
Flange, Thickness 2.00 mm
Material Al2O3 95%
Article. No 5900
Diameter, Inner 35.00 mm
Diameter, Outer 47.00 mm
Flange, Diameter 64.00 mm
Length 18.00 mm
Flange, Thickness 4.00 mm
Material Al2O3 95%
Article. No 5899
Diameter, Inner 16.00 mm
Diameter, Outer 25.00 mm
Flange, Diameter 32.00 mm
Length 20.00 mm
Flange, Thickness 6.00 mm
Material Al2O3 95%
Article. No 5781
Diameter, Inner 16.00 mm
Diameter, Outer 23.80 mm
Flange, Diameter 28.00 mm
Length 22.00 mm
Flange, Thickness 8.00 mm
Material Al2O3 99,5%
Article. No 5696
Diameter, Inner 10.00 mm
Diameter, Outer 15.00 mm
Flange, Diameter 18.00 mm
Length 20.00 mm
Flange, Thickness 4.00 mm
Material Al2O3 95%
Article. No 5246
Diameter, Inner 7.50 mm
Diameter, Outer 10.00 mm
Flange, Diameter 13.00 mm
Length 12.00 mm
Flange, Thickness 3.20 mm
Material Al2O3 95%
Article. No 9023
Diameter, Inner 1.50 mm
Diameter, Outer 4.00 mm
Flange, Diameter 5.50 mm
Length 5.50 mm
Flange, Thickness 1.50 mm
Material Al2O3 95%
Article. No 9022
Diameter, Inner 4.00 mm
Diameter, Outer 7.50 mm
Flange, Diameter 10.70 mm
Length 8.50 mm
Flange, Thickness 1.80 mm
Material Al2O3 99,5%
Article. No 8385
Diameter, Inner 1.05 mm
Diameter, Outer 5.50 mm
Flange, Diameter 7.50 mm
Length 5.00 mm
Flange, Thickness 1.50 mm
Material Al2O3 99,7%
Article. No 7013
Diameter, Inner 3.50 mm
Diameter, Outer 7.50 mm
Flange, Diameter 9.00 mm
Length 8.50 mm
Flange, Thickness 2.00 mm
Material Al2O3 95%
Article. No 6767
Diameter, Inner 4.90 mm
Diameter, Outer 8.60 mm
Flange, Diameter 10.60 mm
Length 15.10 mm
Flange, Thickness 4.50 mm
Material Al2O3 95%
Article. No 6382
Diameter, Inner 0.50 mm
Diameter, Outer 4.00 mm
Flange, Diameter 5.00 mm
Length 4.00 mm
Flange, Thickness 1.00 mm
Material Al2O3 99,5%
Article. No 20492
Diameter, Inner 13.00 mm
Diameter, Outer 20.00 mm
Flange, Diameter 25.00 mm
Length 20.00 mm
Flange, Thickness 6.00 mm
Material Al2O3 99,5%
Article. No 18387P1
Diameter, Inner 51.00 mm
Diameter, Outer 63.00 mm
Flange, Diameter 75.00 mm
Length 43.00 mm
Flange, Thickness 6.00 mm
Material Al2O3 99,8%
Article. No 5171A
Diameter, Inner 20.00 mm
Diameter, Outer 30.00 mm
Flange, Diameter 35.00 mm
Length 20.00 mm
Flange, Thickness 5.00 mm
Material Al2O3 99,7%
Article. No 13982
Diameter, Inner 15.00 mm
Diameter, Outer 22.00 mm
Flange, Diameter 25.30 mm
Length 14.90 mm
Flange, Thickness 3.00 mm
Material Al2O3 99,7%
Article. No 9026
Diameter, Inner 13.00 mm
Diameter, Outer 20.00 mm
Flange, Diameter 25.00 mm
Length 20.00 mm
Flange, Thickness 5.50 mm
Material Al2O3 99,7%
Article. No 4358
Diameter, Inner 6.00 mm
Diameter, Outer 11.70 mm
Flange, Diameter 15.00 mm
Length 15.00 mm
Flange, Thickness 3.00 mm
Material Al2O3 95%
Article. No 4288
Diameter, Inner 16.00 mm
Diameter, Outer 20.00 mm
Flange, Diameter 24.00 mm
Length 16.00 mm
Flange, Thickness 4.00 mm
Material Al2O3 99,7%
Article. No 3620
Diameter, Inner 6.00 mm
Diameter, Outer 10.50 mm
Flange, Diameter 12.50 mm
Length 8.00 mm
Flange, Thickness 3.00 mm
Material Al2O3 95%
!
