Sleeve Rollers

Sleeve Rollers

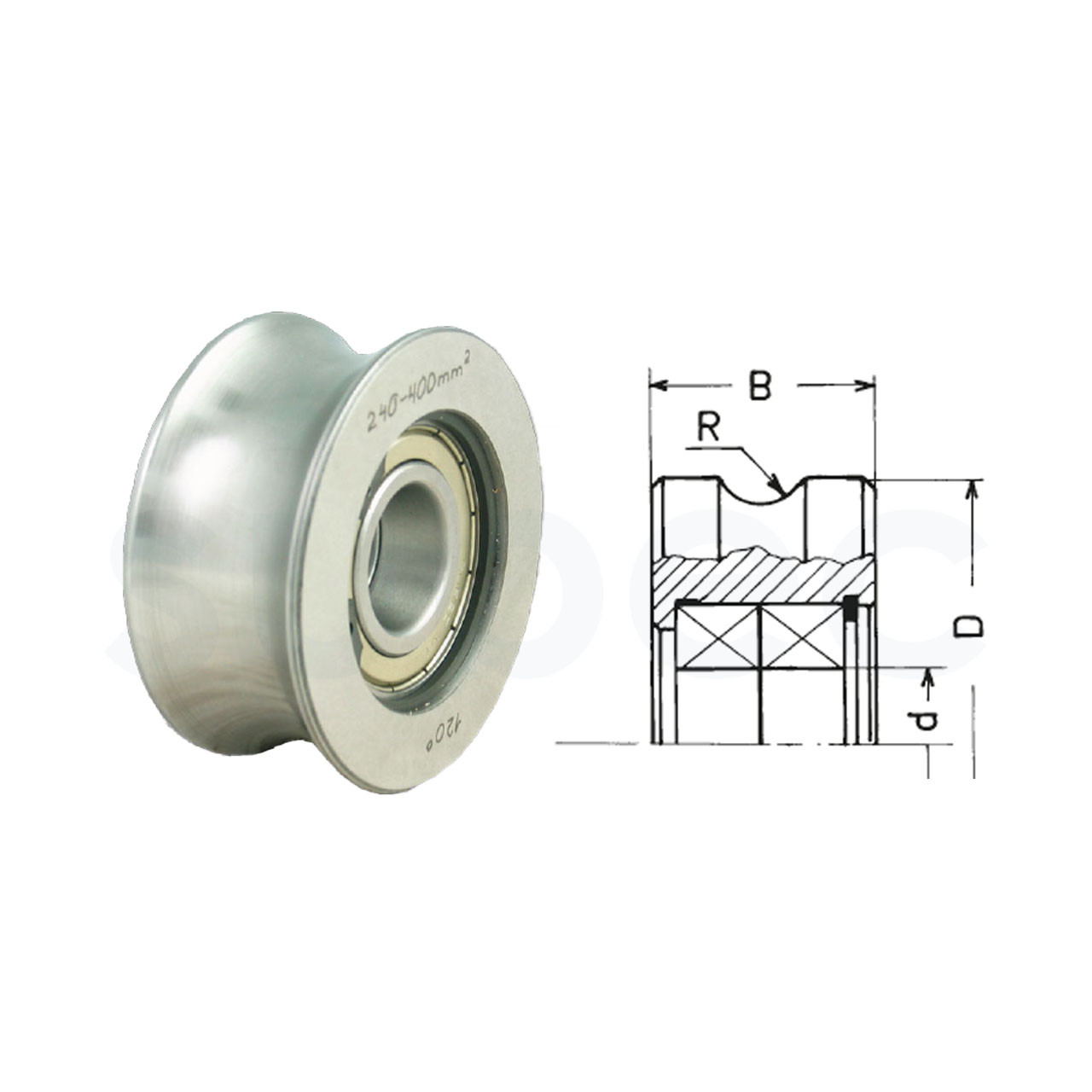

Drawing No: 1-400359-00

Description

The SL roller from Subec features a precision-grooved cylinder supported by two high-quality bearings, ensuring durability and smooth, reliable rotation. Available in a range of materials to accommodate diverse applications, the rollers are designed for optimal performance. Groove profiles include V-shaped, radius-shaped, and sector-shaped options. Both the grooves and roller configurations can be fully customized to meet specific product or process requirements.

Dimensions

  • Hide Filters
Article. No Diameter, Outer Diameter, Inner Length Groove - Width Groove - Angle Groove - Radius Product Range - MIN Product Range - MAX
2748 100.00 mm 30.00 mm 40.00 mm 23.00 mm 100.00 ° 3.00 mm 0.00 mm 23.00 mm
16983 40.00 mm 15.00 mm 20.00 mm 6.70 mm n/a ° 3.35 mm 0.00 mm 6.50 mm
10926 80.00 mm 25.00 mm 30.00 mm 20.50 mm n/a ° 11.00 mm 0.00 mm 22.00 mm
10220A 40.00 mm 12.00 mm 22.00 mm 5.40 mm 90.00 ° 0.50 mm 2.00 mm 5.00 mm

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 2748
Diameter, Outer 100.00 mm
Diameter, Inner 30.00 mm
Length 40.00 mm
Groove - Width 23.00 mm
Groove - Angle 100.00 °
Groove - Radius 3.00 mm
Article. No 16983
Diameter, Outer 40.00 mm
Diameter, Inner 15.00 mm
Length 20.00 mm
Groove - Width 6.70 mm
Groove - Angle n/a °
Groove - Radius 3.35 mm
Article. No 10926
Diameter, Outer 80.00 mm
Diameter, Inner 25.00 mm
Length 30.00 mm
Groove - Width 20.50 mm
Groove - Angle n/a °
Groove - Radius 11.00 mm
Article. No 10220A
Diameter, Outer 40.00 mm
Diameter, Inner 12.00 mm
Length 22.00 mm
Groove - Width 5.40 mm
Groove - Angle 90.00 °
Groove - Radius 0.50 mm
!
