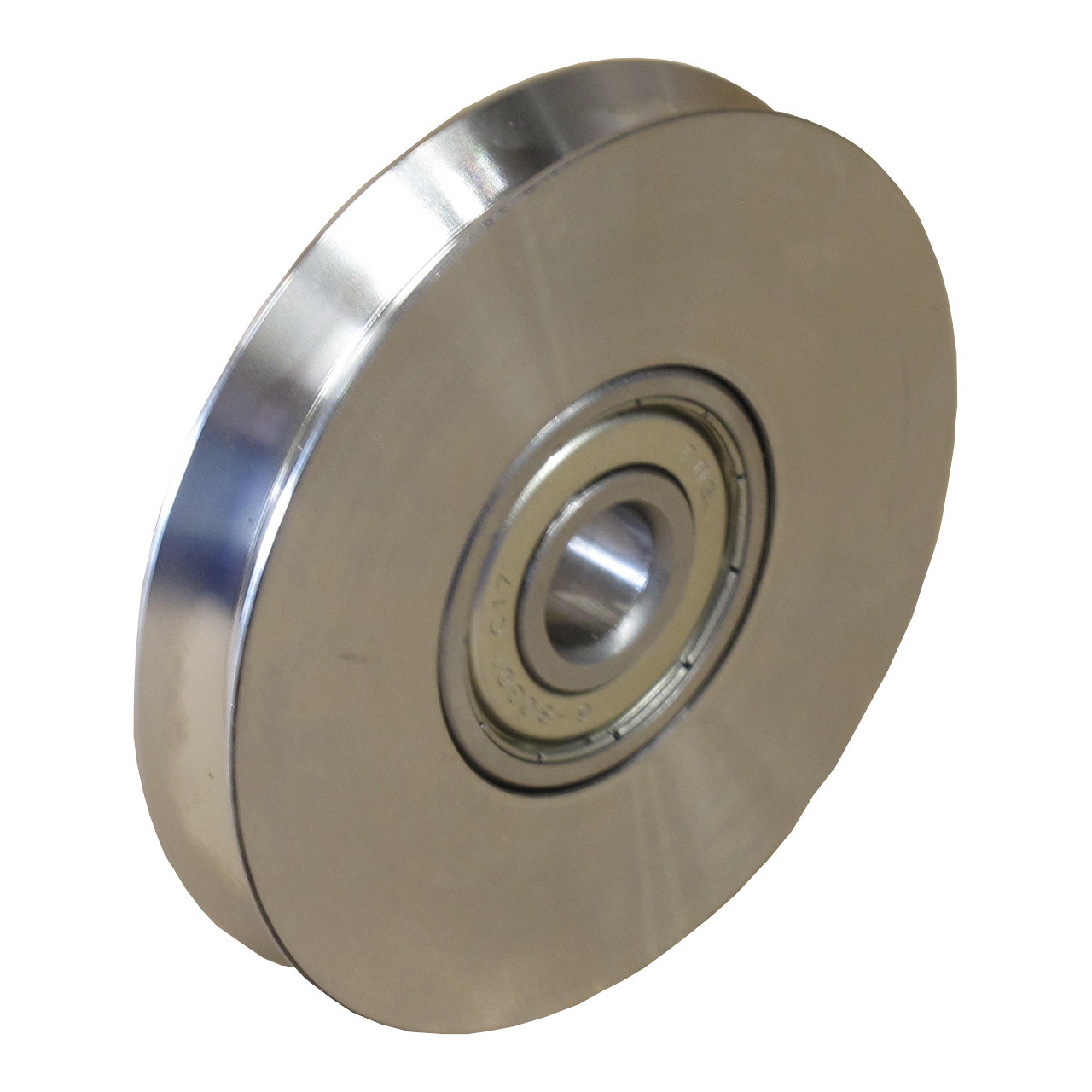

Small steel sheaves, OD Ø40 mm to Ø85 mm

Small steel sheaves, OD Ø40 mm to Ø85 mm

Drawing No: 1-400392-01

Description

Subec’s small sheaves are offered in a range of materials, with various groove profiles and a either single or double bearings.

Dimensions

  • Hide Filters
Article. No Material, Roller/Sheave Diameter, Root Diameter, Outer Bearing Seat Diameter Groove - Width Groove - Radius Nested Width Groove - Angle Groove - Depth Bearing Seat Depth Product Range - MIN Product Range - MAX Suffix
3947 Steel 62.00 mm 80.00 mm 26.00 mm 8.00 mm n/a mm No 16.00 mm 30.00 ° 9.00 mm 16.00 mm 0.00 mm 15.00 mm n/a
3064 Hardened Steel HRC 55 44.50 mm 47.00 mm 35.00 mm 4.00 mm n/a mm No 11.00 mm n/a ° 1.25 mm 11.00 mm 0.00 mm 4.00 mm n/a
3839 Hardened Steel HRC 55 62.00 mm 80.00 mm 37.00 mm 3.00 mm 3.00 mm No 12.00 mm n/a ° 9.00 mm 12.00 mm 0.00 mm 6.00 mm n/a
2151 Hardened Steel HRC 55 32.00 mm 40.00 mm 22.00 mm 7.00 mm n/a mm No 7.00 mm 60.00 ° 4.00 mm 7.00 mm 0.00 mm 8.00 mm n/a
20542 Hardened Steel HRC 55 70.00 mm 80.00 mm 70.00 mm 10.00 mm 0.40 mm No 12.00 mm 90.00 ° 5.00 mm 12.00 mm 0.00 mm 12.00 mm n/a

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 3947
Material, Roller/Sheave Steel
Diameter, Root 62.00 mm
Diameter, Outer 80.00 mm
Bearing Seat Diameter 26.00 mm
Groove - Width 8.00 mm
Groove - Radius n/a mm
Article. No 3064
Material, Roller/Sheave Hardened Steel HRC 55
Diameter, Root 44.50 mm
Diameter, Outer 47.00 mm
Bearing Seat Diameter 35.00 mm
Groove - Width 4.00 mm
Groove - Radius n/a mm
Article. No 3839
Material, Roller/Sheave Hardened Steel HRC 55
Diameter, Root 62.00 mm
Diameter, Outer 80.00 mm
Bearing Seat Diameter 37.00 mm
Groove - Width 3.00 mm
Groove - Radius 3.00 mm
Article. No 2151
Material, Roller/Sheave Hardened Steel HRC 55
Diameter, Root 32.00 mm
Diameter, Outer 40.00 mm
Bearing Seat Diameter 22.00 mm
Groove - Width 7.00 mm
Groove - Radius n/a mm
Article. No 20542
Material, Roller/Sheave Hardened Steel HRC 55
Diameter, Root 70.00 mm
Diameter, Outer 80.00 mm
Bearing Seat Diameter 70.00 mm
Groove - Width 10.00 mm
Groove - Radius 0.40 mm
!
