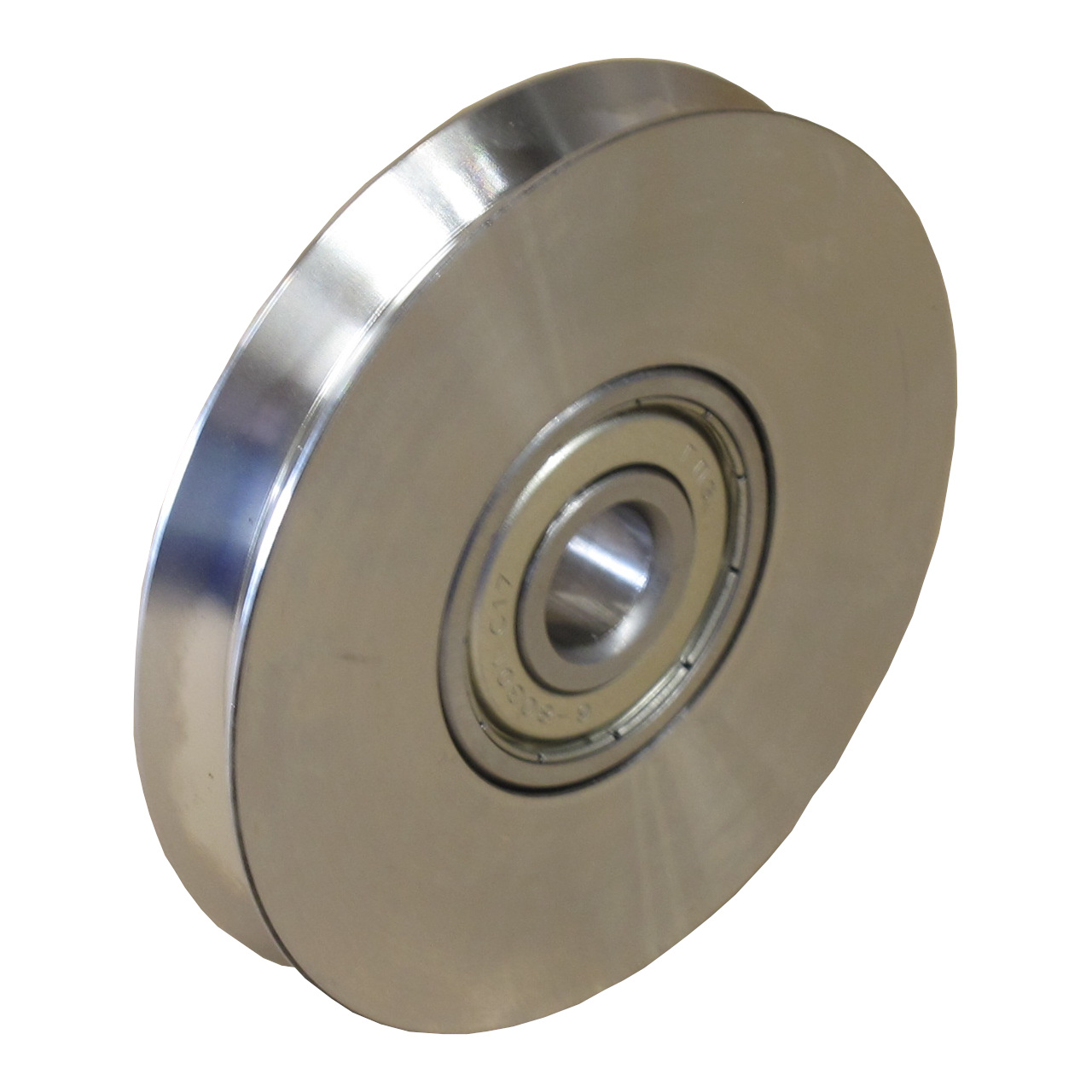

Steel Sheaves

Steel Sheaves

Drawing No: 1-400392-01

Description

Subec Steel Sheaves are engineered for great durability and high performance and efficiency for guiding and deviating cables, wires, and continuous products. They are precision-machined from high-quality steel.

Dimensions

  • Hide Filters
Article. No Material, Roller/Sheave Diameter, Root Diameter, Outer Bearing Seat Diameter Groove - Width Groove - Radius Nested Width Groove - Angle Groove - Depth Bearing Seat Depth Product Range - MIN Product Range - MAX Suffix
0617 PA6-G 32.00 mm 40.00 mm 22.00 mm 8.00 mm n/a mm No 14.00 mm 30.00 ° 40.00 mm 14.00 mm 0.00 mm 10.00 mm
20542 Hardened Steel HRC 55 70.00 mm 80.00 mm 70.00 mm 10.00 mm 0.40 mm No 12.00 mm 90.00 ° 5.00 mm 12.00 mm 0.00 mm 12.00 mm n/a

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 0617
Material, Roller/Sheave PA6-G
Diameter, Root 32.00 mm
Diameter, Outer 40.00 mm
Bearing Seat Diameter 22.00 mm
Groove - Width 8.00 mm
Groove - Radius n/a mm
Article. No 20542
Material, Roller/Sheave Hardened Steel HRC 55
Diameter, Root 70.00 mm
Diameter, Outer 80.00 mm
Bearing Seat Diameter 70.00 mm
Groove - Width 10.00 mm
Groove - Radius 0.40 mm
!
