Standard Model, Radius Groove

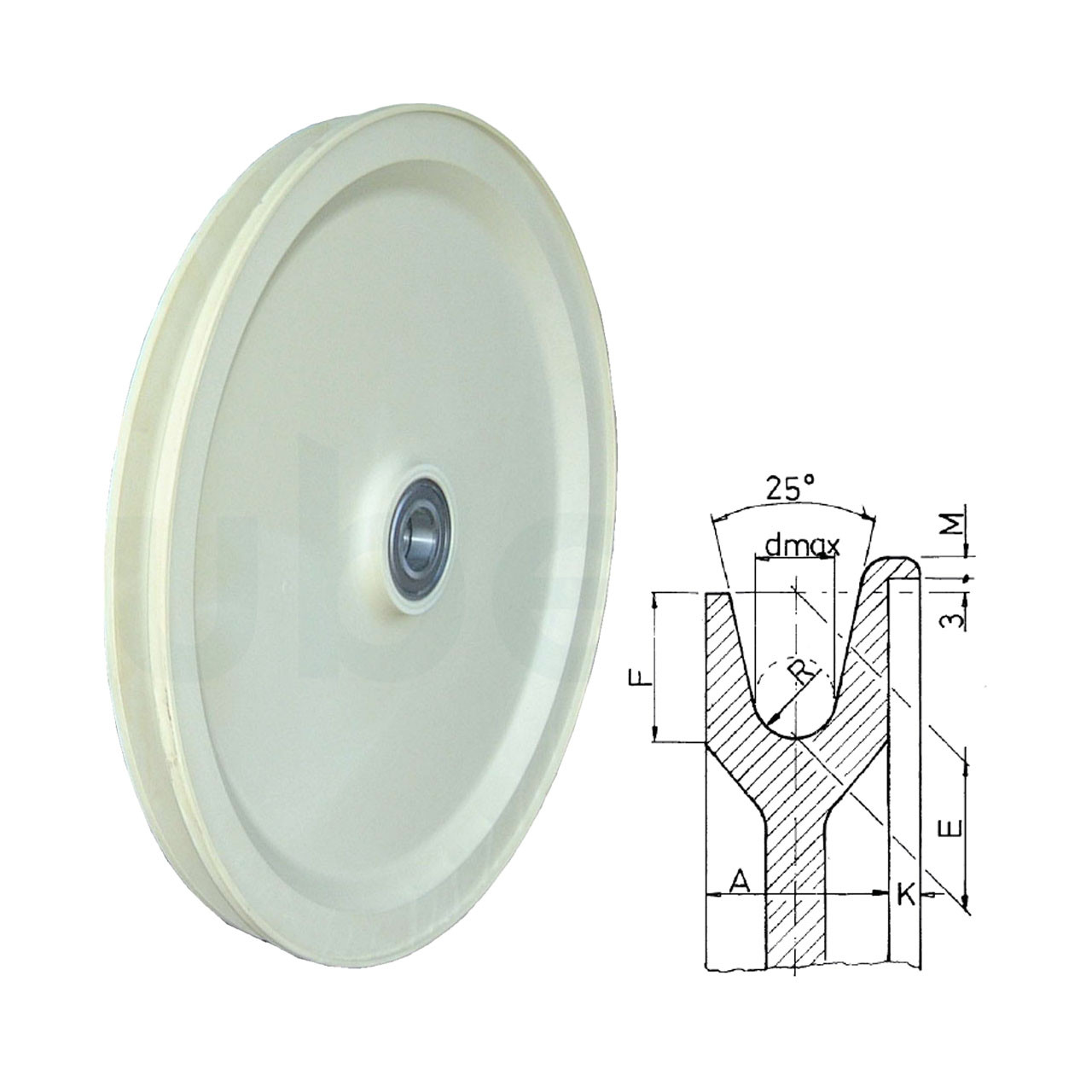

Drawing No: 1-400332-01

Description

Available in Ø500 and Ø800, Subec PUR Integral Hardfoam Sheaves with a radius groove provide smooth guidance for round cables and wires.

Article. No	Material, Roller/Sheave	Diameter, Root	Diameter, Outer	Bearing Seat Diameter	Groove - Width	Groove - Radius	Nested	Width	Groove - Angle	Groove - Depth	Bearing Seat Depth	Product Range - MAX	Suffix
16729	PUR-Integral hårdskum	480.00 mm	500.00 mm	80.00 mm	18.00 mm	12.00 mm	Yes	38.00 mm	25.00 °	30.00 mm	38.00 mm	16.00 mm	n/a
0862	PUR-Integral hårdskum	740.00 mm	820.00 mm	130.00 mm	30.00 mm	15.00 mm	Yes	64.00 mm	25.00 °	40.00 mm	64.00 mm	25.00 mm	n/a
1225	PUR-Integral hårdskum	480.00 mm	556.00 mm	80.00 mm	18.00 mm	9.00 mm	Yes	44.00 mm	25.00 °	30.00 mm	38.00 mm	18.00 mm	n/a

No products matches the diameter range

Reach out to us for other dimensions on request.
