Standard Model, Flat Groove

Standard Model, Flat Groove

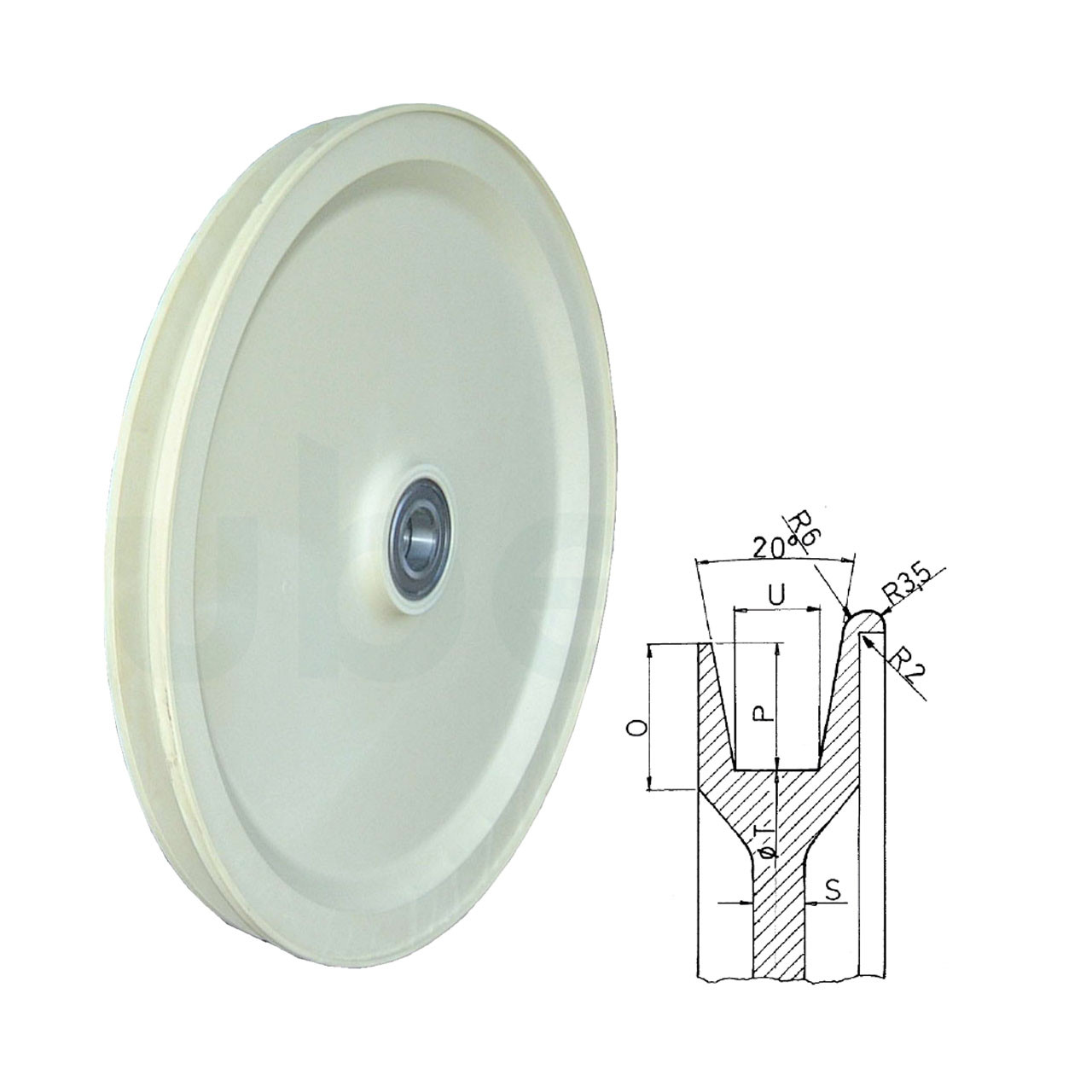

Drawing No: 1-400332-00

Description

Available in Ø500 and Ø800, Subec PUR Integral Hardfoam Sheaves with a flat groove are designed for applications requiring stable cable or product positioning.

Dimensions

  • Hide Filters
Article. No Material, Roller/Sheave Diameter, Root Diameter, Outer Bearing Seat Diameter Groove - Width Groove - Radius Nested Width Groove - Angle Groove - Depth Bearing Seat Depth Product Range - MAX Product Range - MIN Suffix
1448 PUR-Integral hårdskum 546.00 mm 556.00 mm 80.00 mm 20.00 mm n/a mm Yes 44.00 mm 20.00 ° 30.00 mm 38.00 mm 20.00 mm 0.00 mm n/a
1379 PUR-Integral hårdskum 765.00 mm 800.00 mm 130.00 mm 30.00 mm n/a mm Yes 64.00 mm 20.00 ° 40.00 mm 64.00 mm 30.00 mm 0.00 mm n/a

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 1448
Material, Roller/Sheave PUR-Integral hårdskum
Diameter, Root 546.00 mm
Diameter, Outer 556.00 mm
Bearing Seat Diameter 80.00 mm
Groove - Width 20.00 mm
Groove - Radius n/a mm
Article. No 1379
Material, Roller/Sheave PUR-Integral hårdskum
Diameter, Root 765.00 mm
Diameter, Outer 800.00 mm
Bearing Seat Diameter 130.00 mm
Groove - Width 30.00 mm
Groove - Radius n/a mm
!
