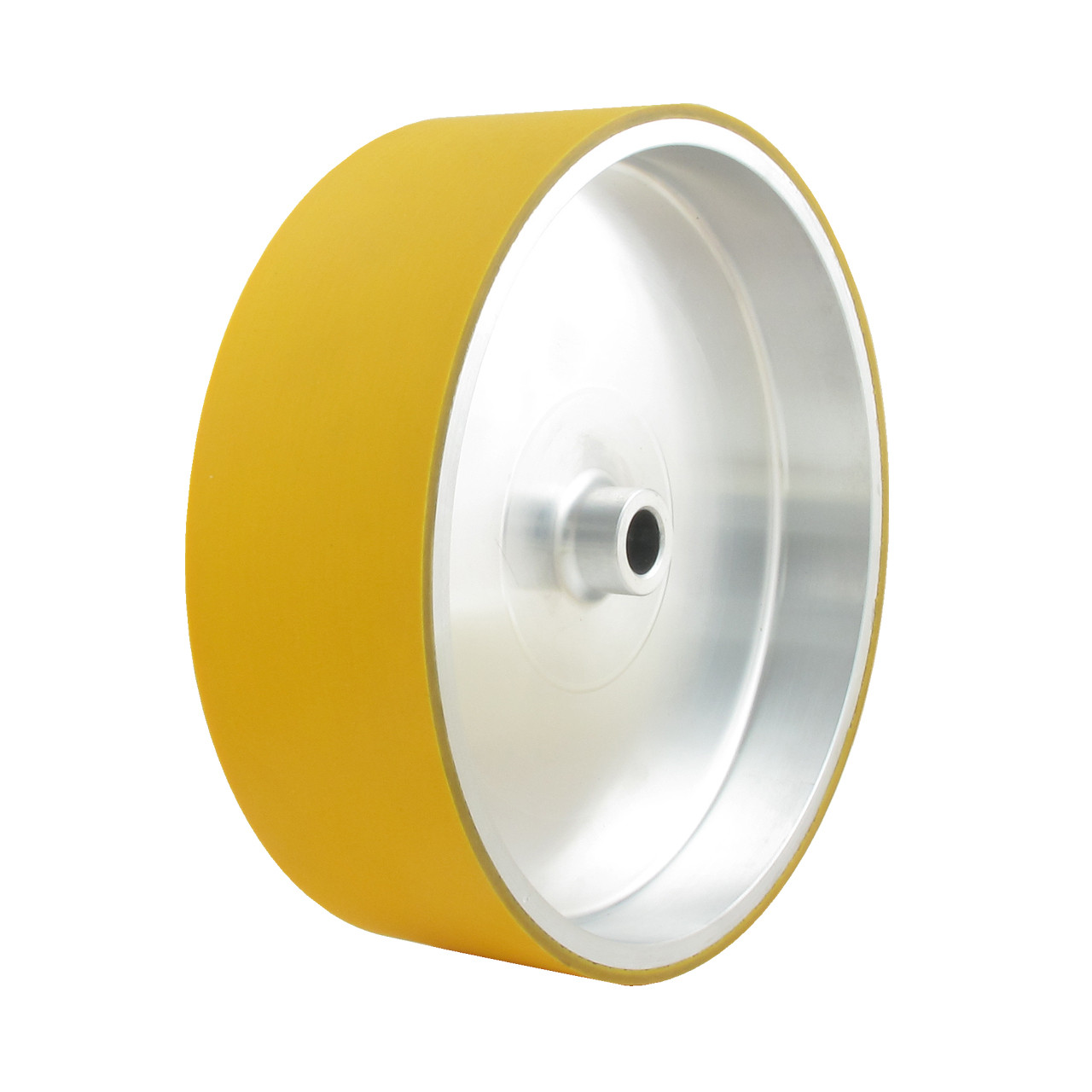

Length measuring wheel

Length measuring wheel

Drawing No: 3-400775-00

Description

Measuring wheel to be connected to a counter. Comes in various diameters and width, often with a PU coating applied to the outerdiameter to insure a good compromise between were resistance and slippage. We work with any sorts of hardness from 70 to 108 Shore A.

Dimensions

  • Hide Filters
Article. No Material, Roller/Sheave Diameter, Root Diameter, Outer Bearing Seat Diameter Groove - Width Groove - Radius Nested
5525 Aluminium AW 6082-T6 159.15 mm 159.15 mm 10.00 mm n/a mm n/a mm No

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 5525
Material, Roller/Sheave Aluminium AW 6082-T6
Diameter, Root 159.15 mm
Diameter, Outer 159.15 mm
Bearing Seat Diameter 10.00 mm
Groove - Width n/a mm
Groove - Radius n/a mm
!
