Plastic Flange

Plastic Flange

Drawing No: 3-400575-01

Description

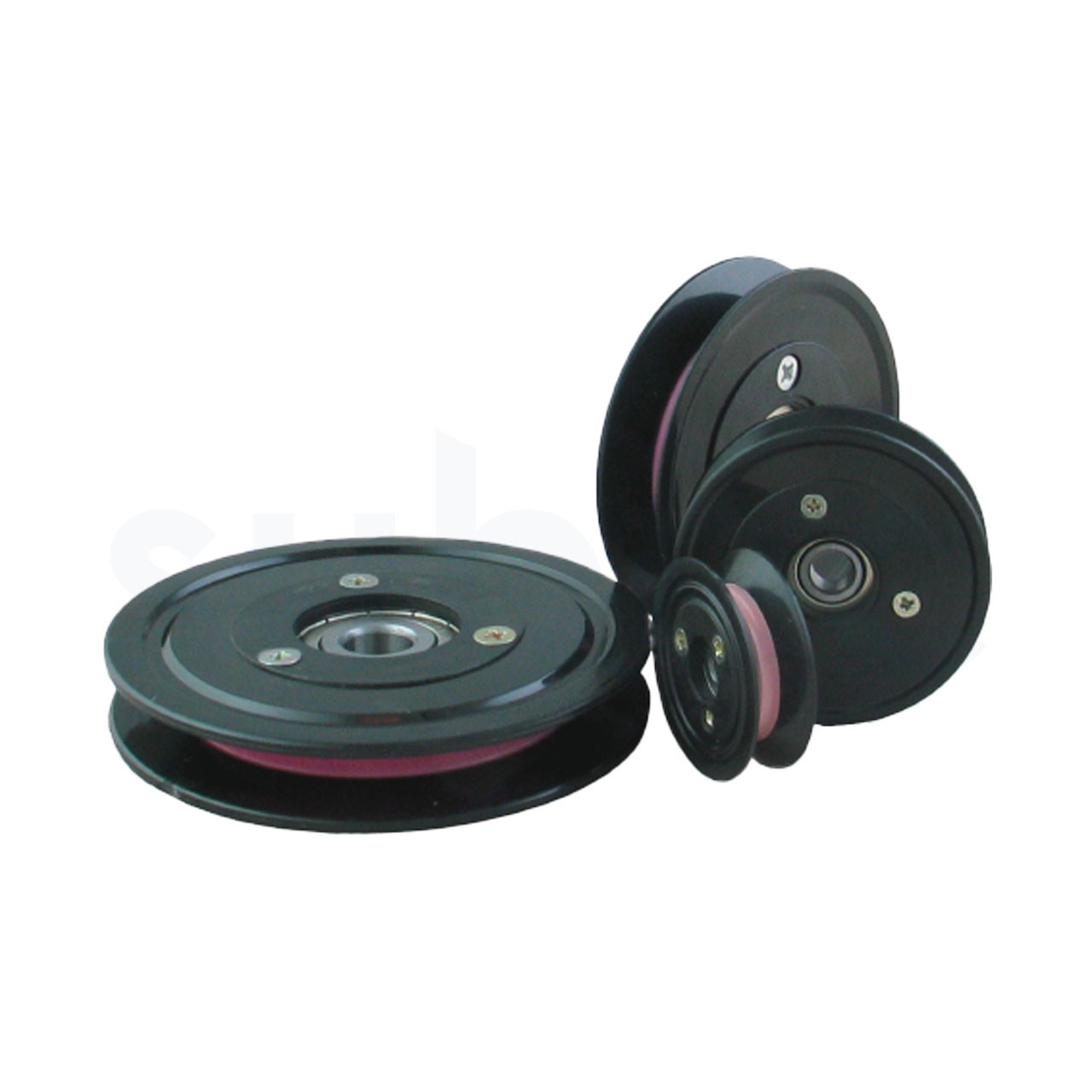

Ceramic Core Sheaves with Plastic Flanges are cost-effective sheaves for general guiding or deflection of wires and cables in a straight line. Built with a durable ceramic core for wear resistance and plastic flanges to reduce weight and cost.

Dimensions

  • Hide Filters
Article. No Diameter, Outer Width Diameter, Inner Groove - Angle Groove - Radius Diameter, Root Material, Ceramic
5501 60.00 mm 13.00 mm 8.00 mm 40.00 ° 1.90 mm 40.00 mm Al2O3 99,5%
5500 80.00 mm 14.00 mm 10.00 mm 17.00 ° 2.80 mm 50.00 mm Al2O3 95%
13468 30.00 mm 7.20 mm 4.00 mm 30.00 ° 1.25 mm 20.00 mm Al2O3 95%
5502 45.00 mm 13.00 mm 6.00 mm 50.00 ° 2.25 mm 30.00 mm Al2O3 95%

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 5501
Diameter, Outer 60.00 mm
Width 13.00 mm
Diameter, Inner 8.00 mm
Groove - Angle 40.00 °
Groove - Radius 1.90 mm
Diameter, Root 40.00 mm
Article. No 5500
Diameter, Outer 80.00 mm
Width 14.00 mm
Diameter, Inner 10.00 mm
Groove - Angle 17.00 °
Groove - Radius 2.80 mm
Diameter, Root 50.00 mm
Article. No 13468
Diameter, Outer 30.00 mm
Width 7.20 mm
Diameter, Inner 4.00 mm
Groove - Angle 30.00 °
Groove - Radius 1.25 mm
Diameter, Root 20.00 mm
Article. No 5502
Diameter, Outer 45.00 mm
Width 13.00 mm
Diameter, Inner 6.00 mm
Groove - Angle 50.00 °
Groove - Radius 2.25 mm
Diameter, Root 30.00 mm
!
