Aluminium Flange

Aluminium Flange

Drawing No: 3-400575-00

Description

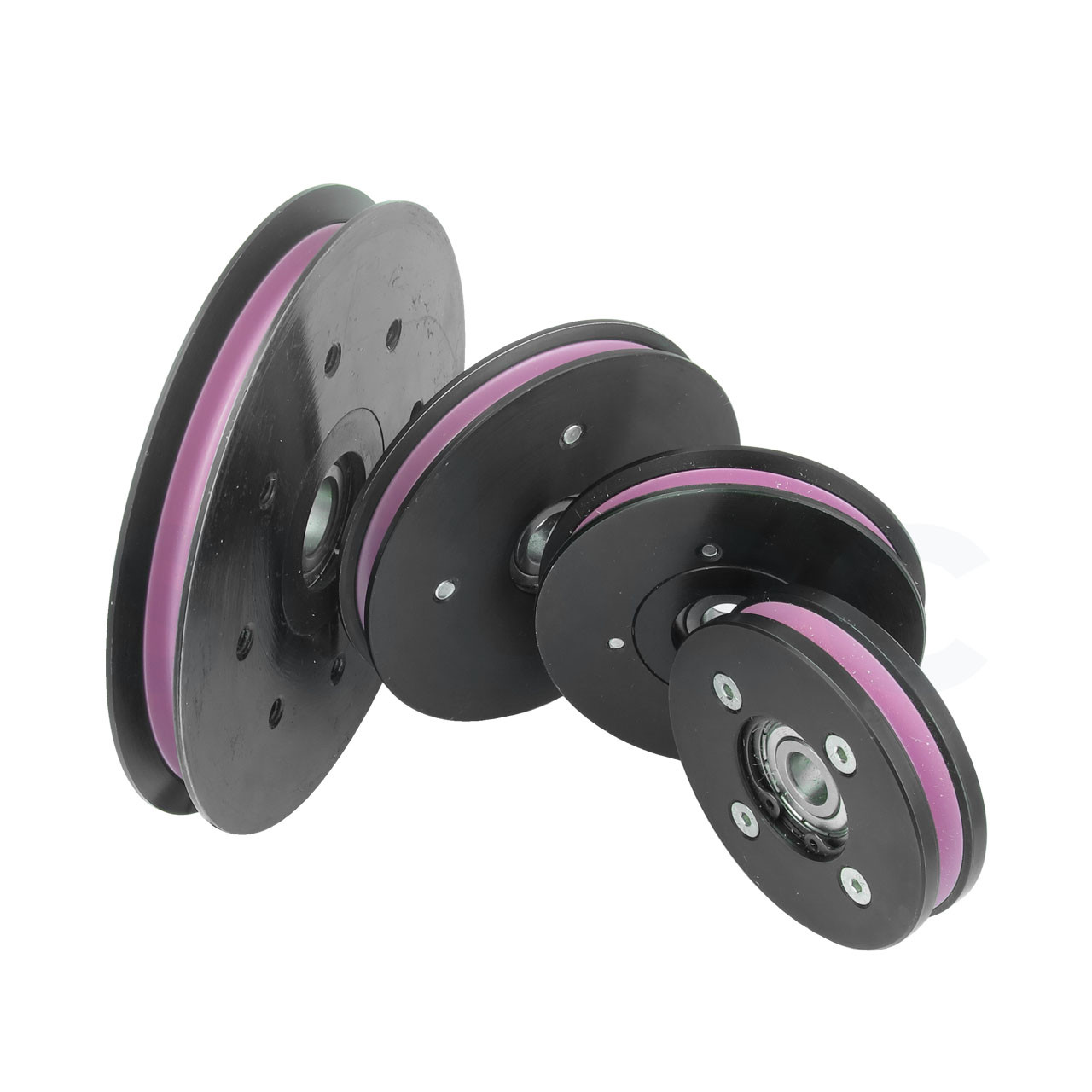

High-performance sheaves designed for demanding applications. Featuring an aluminium core and aluminium flanges, secured with stainless steel screws and bearings, and dynamically balanced up to 2500 rpm. Available from root diameter 56 mm (2.2″) to 177.8 mm (7″). The ceramic coating provides exceptional wear resistance and low maintenance, making these sheaves ideal for high-speed, high-precision operations.

Dimensions

  • Hide Filters
Article. No Diameter, Outer Width Diameter, Inner Groove - Angle Groove - Radius Diameter, Root Material, Ceramic
6949 191.00 mm 18.80 mm 150.00 mm 25.00 ° 3.00 mm 159.20 mm Al2O3 95%
6809 76.20 mm 12.70 mm 55.00 mm 60.00 ° 1.60 mm 63.50 mm Al2O3 95%
6810 88.90 mm 12.70 mm 68.00 mm 60.00 ° 1.60 mm 76.20 mm Al2O3 95%
6813 203.20 mm 19.10 mm 166.00 mm 60.00 ° 1.60 mm 177.80 mm Al2O3 95%
6822 69.00 mm 16.50 mm 55.00 mm 60.00 ° 1.60 mm 56.00 mm Al2O3 95%
6811 123.80 mm 14.30 mm 91.00 mm 45.00 ° 1.60 mm 101.60 mm Al2O3 95%
6812 152.40 mm 15.60 mm 116.00 mm 45.00 ° 1.60 mm 127.00 mm Al2O3 95%

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 6949
Diameter, Outer 191.00 mm
Width 18.80 mm
Diameter, Inner 150.00 mm
Groove - Angle 25.00 °
Groove - Radius 3.00 mm
Diameter, Root 159.20 mm
Article. No 6809
Diameter, Outer 76.20 mm
Width 12.70 mm
Diameter, Inner 55.00 mm
Groove - Angle 60.00 °
Groove - Radius 1.60 mm
Diameter, Root 63.50 mm
Article. No 6810
Diameter, Outer 88.90 mm
Width 12.70 mm
Diameter, Inner 68.00 mm
Groove - Angle 60.00 °
Groove - Radius 1.60 mm
Diameter, Root 76.20 mm
Article. No 6813
Diameter, Outer 203.20 mm
Width 19.10 mm
Diameter, Inner 166.00 mm
Groove - Angle 60.00 °
Groove - Radius 1.60 mm
Diameter, Root 177.80 mm
Article. No 6822
Diameter, Outer 69.00 mm
Width 16.50 mm
Diameter, Inner 55.00 mm
Groove - Angle 60.00 °
Groove - Radius 1.60 mm
Diameter, Root 56.00 mm
Article. No 6811
Diameter, Outer 123.80 mm
Width 14.30 mm
Diameter, Inner 91.00 mm
Groove - Angle 45.00 °
Groove - Radius 1.60 mm
Diameter, Root 101.60 mm
Article. No 6812
Diameter, Outer 152.40 mm
Width 15.60 mm
Diameter, Inner 116.00 mm
Groove - Angle 45.00 °
Groove - Radius 1.60 mm
Diameter, Root 127.00 mm
!
