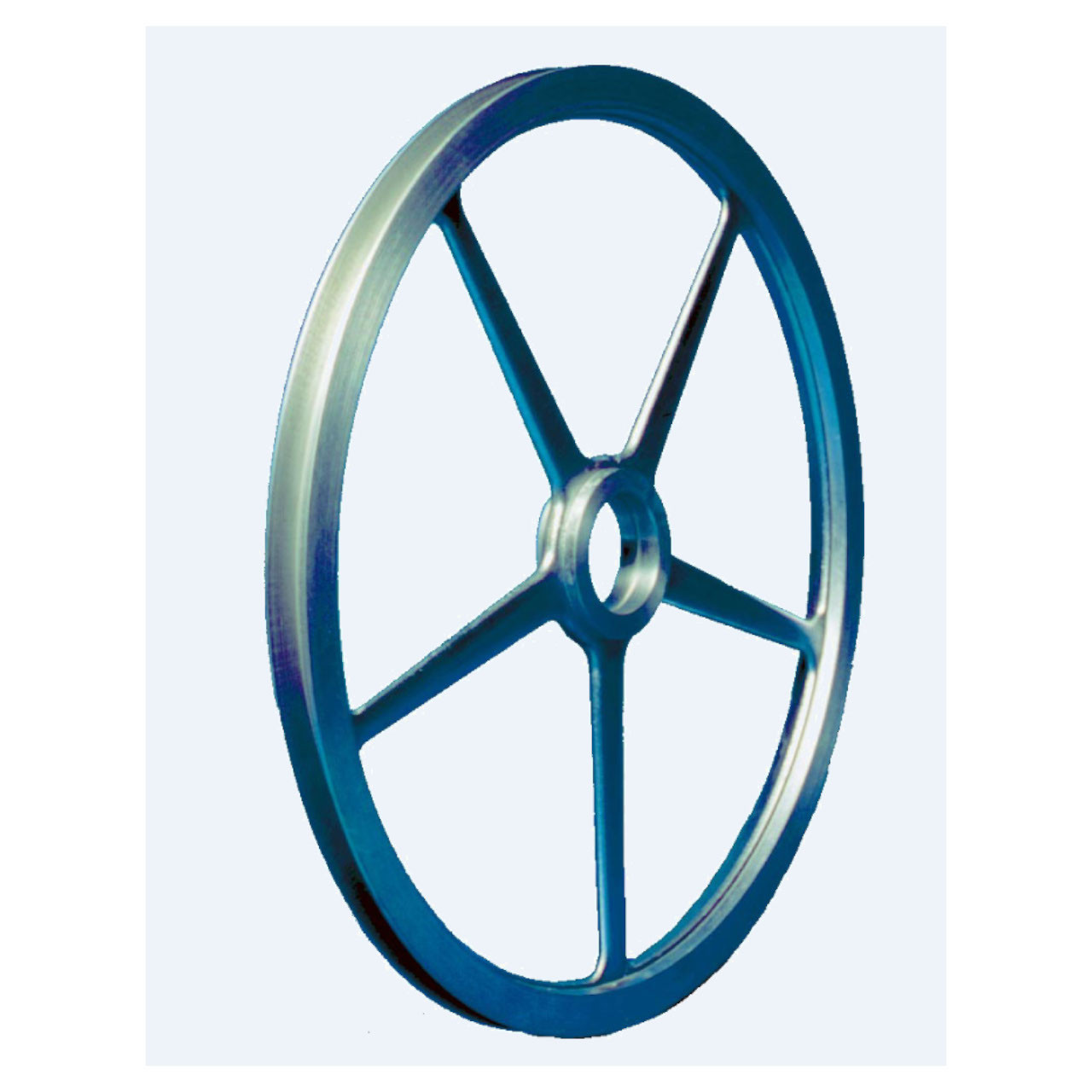

Casted Aluminium sheaves, Groove 20mm

Casted Aluminium sheaves, Groove 20mm

Drawing No: 3-400337-00

Description

Casted Aluminium sheaves with various groove profiles, with or without overlap and various surface treatments. Groove width 20mm

Dimensions

  • Hide Filters
Article. No Material, Roller/Sheave Diameter, Root Diameter, Outer Bearing Seat Diameter Groove - Width Groove - Radius Nested
9074 Aluminium 50.00 mm 548.00 mm 72.00 mm 20.00 mm n/a mm Yes
6843 Aluminium 500.00 mm 548.00 mm 68.00 mm 20.00 mm 10.00 mm Yes
3366A Aluminium 600.00 mm 648.00 mm 68.00 mm 20.00 mm n/a mm Yes
0082A Aluminium 500.00 mm 548.00 mm 68.00 mm 20.00 mm n/a mm Yes

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert
Article. No 9074
Material, Roller/Sheave Aluminium
Diameter, Root 50.00 mm
Diameter, Outer 548.00 mm
Bearing Seat Diameter 72.00 mm
Groove - Width 20.00 mm
Groove - Radius n/a mm
Article. No 6843
Material, Roller/Sheave Aluminium
Diameter, Root 500.00 mm
Diameter, Outer 548.00 mm
Bearing Seat Diameter 68.00 mm
Groove - Width 20.00 mm
Groove - Radius 10.00 mm
Article. No 3366A
Material, Roller/Sheave Aluminium
Diameter, Root 600.00 mm
Diameter, Outer 648.00 mm
Bearing Seat Diameter 68.00 mm
Groove - Width 20.00 mm
Groove - Radius n/a mm
Article. No 0082A
Material, Roller/Sheave Aluminium
Diameter, Root 500.00 mm
Diameter, Outer 548.00 mm
Bearing Seat Diameter 68.00 mm
Groove - Width 20.00 mm
Groove - Radius n/a mm
!
