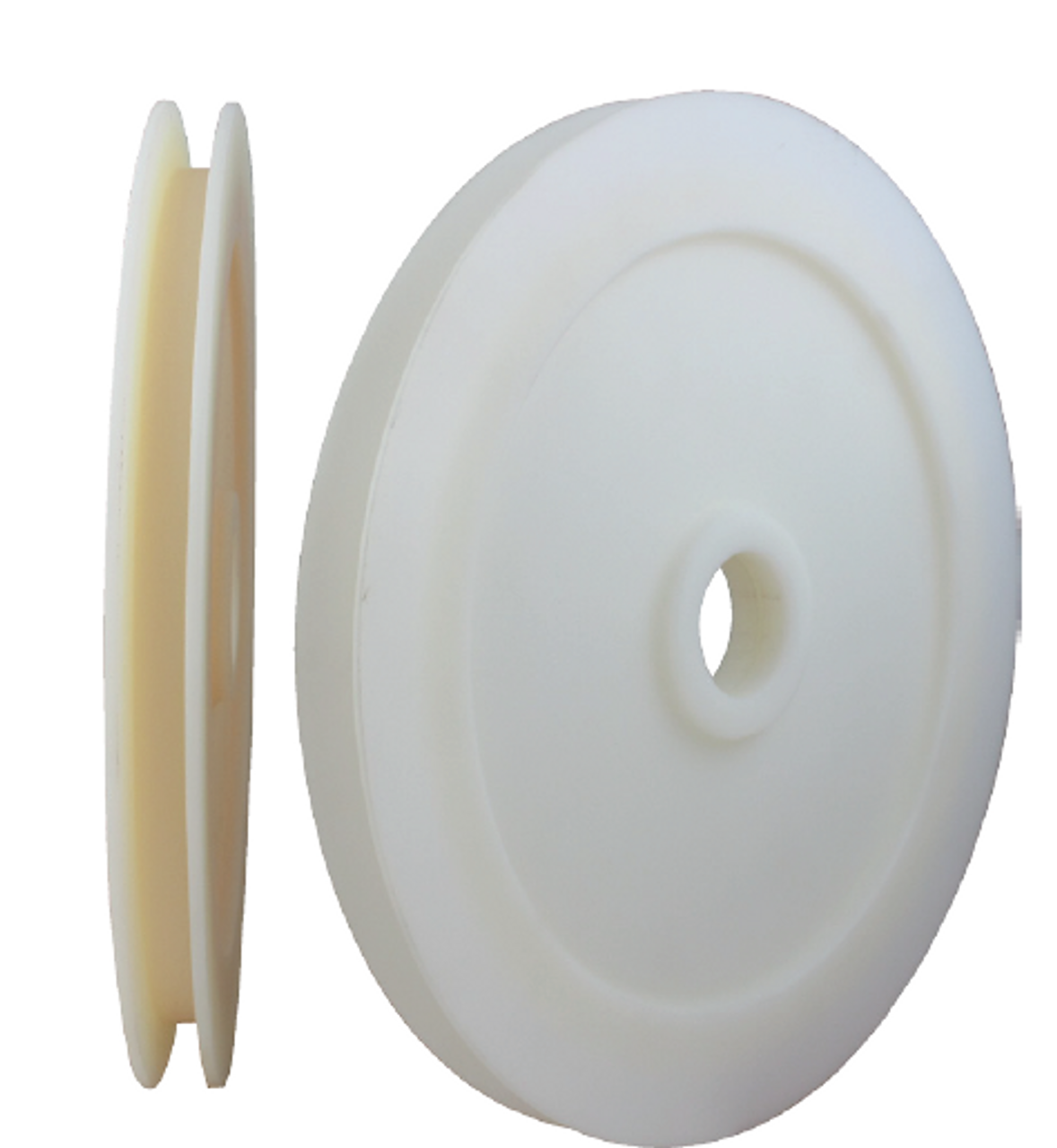

Standard Model

Drawing No: 1-400385-01

Description

Article. No	Material, Roller/Sheave	Diameter, Root	Diameter, Outer	Bearing Seat Diameter	Groove - Width	Groove - Radius	Nested
7242	PA6-G	500.00 mm	540.00 mm	68.00 mm	20.00 mm	10.00 mm	No
1656	PA6-G	270.00 mm	300.00 mm	37.00 mm	10.00 mm	5.00 mm	No
1504	PA6-G	140.00 mm	180.00 mm	32.00 mm	10.00 mm	5.00 mm	No
1505	PA6-G	200.00 mm	230.00 mm	32.00 mm	10.00 mm	5.00 mm	No
0662	PA6-G	300.00 mm	340.00 mm	55.00 mm	15.00 mm	n/a mm	No

No products matches the diameter range

Reach out to us for other dimensions on request.

Talk to an expert

Article. No	7242
Material, Roller/Sheave	PA6-G
Diameter, Root	500.00 mm
Diameter, Outer	540.00 mm
Bearing Seat Diameter	68.00 mm
Groove - Width	20.00 mm
Groove - Radius	10.00 mm

Article. No	1656
Material, Roller/Sheave	PA6-G
Diameter, Root	270.00 mm
Diameter, Outer	300.00 mm
Bearing Seat Diameter	37.00 mm
Groove - Width	10.00 mm
Groove - Radius	5.00 mm

Article. No	1504
Material, Roller/Sheave	PA6-G
Diameter, Root	140.00 mm
Diameter, Outer	180.00 mm
Bearing Seat Diameter	32.00 mm
Groove - Width	10.00 mm
Groove - Radius	5.00 mm

Article. No	1505
Material, Roller/Sheave	PA6-G
Diameter, Root	200.00 mm
Diameter, Outer	230.00 mm
Bearing Seat Diameter	32.00 mm
Groove - Width	10.00 mm
Groove - Radius	5.00 mm

Article. No	0662
Material, Roller/Sheave	PA6-G
Diameter, Root	300.00 mm
Diameter, Outer	340.00 mm
Bearing Seat Diameter	55.00 mm
Groove - Width	15.00 mm
Groove - Radius	n/a mm
